Before Use
- 8 -

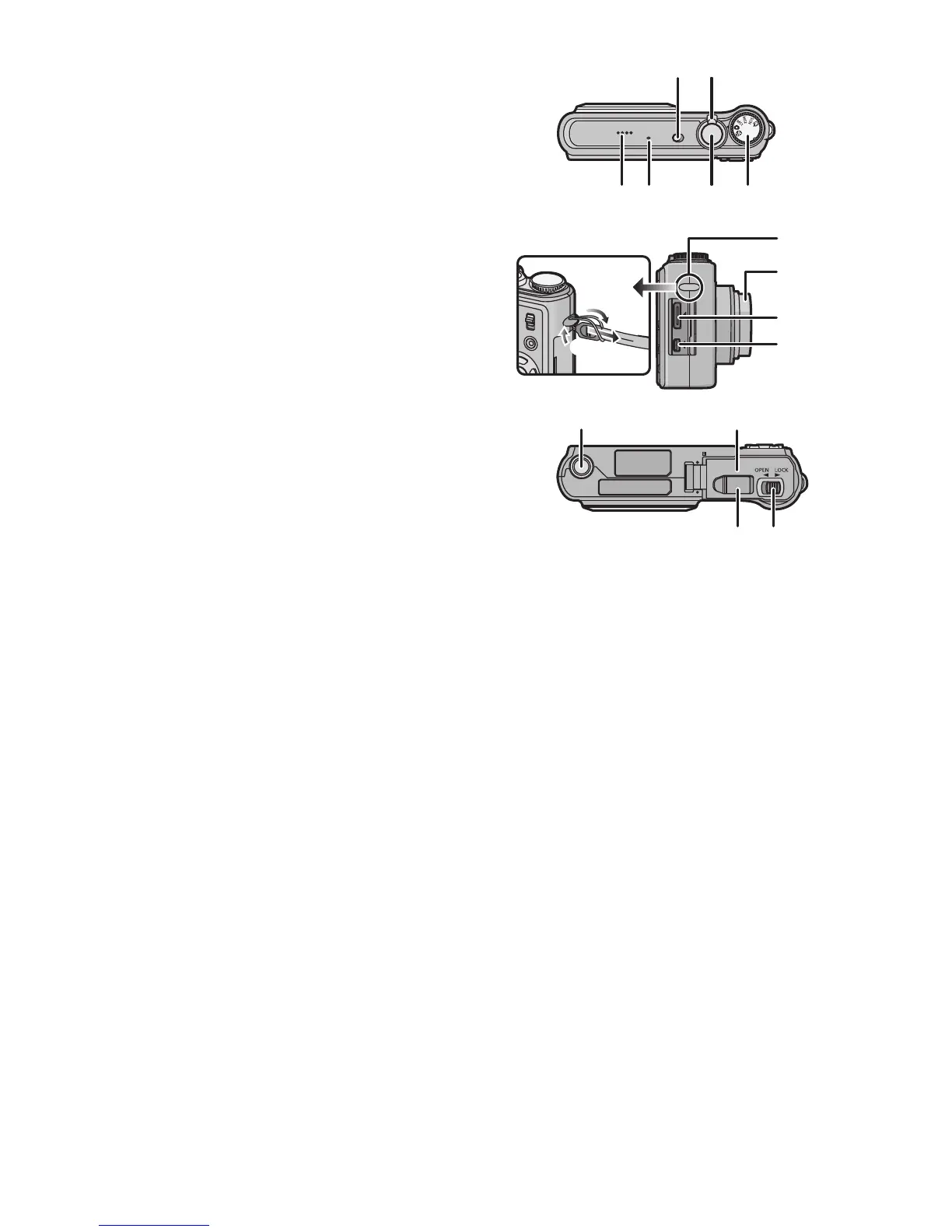

11 Camera ON/OFF switch (P18)
12 Zoom lever (P41)
13 Speaker (P125)
14 Microphone (P78, 110)
15 Shutter button (P34)
16 Mode dial (P31)
17 Hand strap eyelet
•
Be sure to attach the hand strap when
using the camera to ensure that you will
not drop it.
18 Lens barrel
19 [HDMI] socket (P146, 148)
20 [AV OUT/DIGITAL] socket (P144, 153,
157)
21 Tripod receptacle
•
When you use a tripod, make sure the
tripod is stable when the camera is
attached to it.
22 Card/Battery door (P14)
23 Release lever (P14)
24 DC coupler cover (P15)
•
When using an AC adaptor, ensure that
the Panasonic DC coupler (optional) and
AC adaptor (optional) are used. For
connection details, refer to P15.
