25
DVQX1725
English

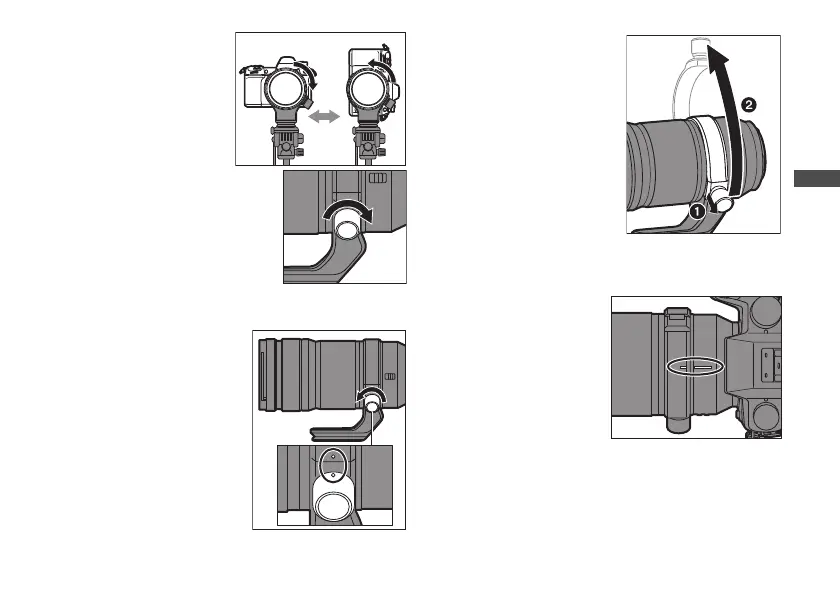

2 Rotate the digital
camera and lens to
change the position.
3 Rotate the tripod
mount locking knob in the
direction indicated by the
arrow to tighten firmly.
∫ Detaching the tripod mount
1 Rotate the tripod
mount locking knob in
the direction indicated
by the arrow to loosen.
2 Match the marks on the
tripod mount and the
tripod mount locking
knob.
3 While pulling out the
tripod mount locking
knob, open and remove
the tripod mount.
0
When detaching the
tripod mount, support the
lens and digital camera
to ensure they do not fall.
∫ Attaching the tripod mount
Attach by reversing the steps used to detach.
0 Match the marks on the
tripod mount and the
lens.
0 When attaching the
tripod mount, pull out the
tripod mount locking
knob first and then close
the tripod mount.
0 Be careful not to pinch
your fingers between the
tripod mount and the lens.
