VIP
®
Series Control, Alarm & Monitoring
VIP
®
Series
Alarm Safety Features Event Visual Audible Signal to Alarm Contact
Status Alert
Abnormal ambient (too high or
too low), or abnormal freezer
loading (too much warm
product at once)
STATUS lamp ashes None None
High Temperature
Interior chamber warms
beyond high temp setpoint
ALARM lamp ashes;
digital display ashes actual
chamber temperature
Intermittent tone; time
delay of 15 min. after reaching
alarm setpoint avoids false
alarms. Intermittent tone
Yes
Low Temperature
Interior chamber cools beyond
low temp setpoint
Yes
Power Failure Loss of Power Intermittent tone Yes
System Monitoring Sensor Failure Sensor Abnormality Error Code Displayed Solid tone No
Status Alert
Freezer Running Under Stress
‘Status Alert’
lamp illuminated
None
No
Low Voltage No
High Ambient Temperature No
Auto Return
Touch key is not pressed
for 90 seconds
Reverts to chamber
temperature display
None No
Door Alarm Door Open OPEN lamp on Solid tone sounds after Yes
The Panasonic microprocessor control system is secure, easy to use and comprehensive. Setpoint, alarm parameters and self-diagnostic
functions are accessed through a tamper-resistant keypad protocol. Control inputs are managed with convenient push buttons on a unitized,
sealed control overlay. The panel is door-mounted and angled for easy access.

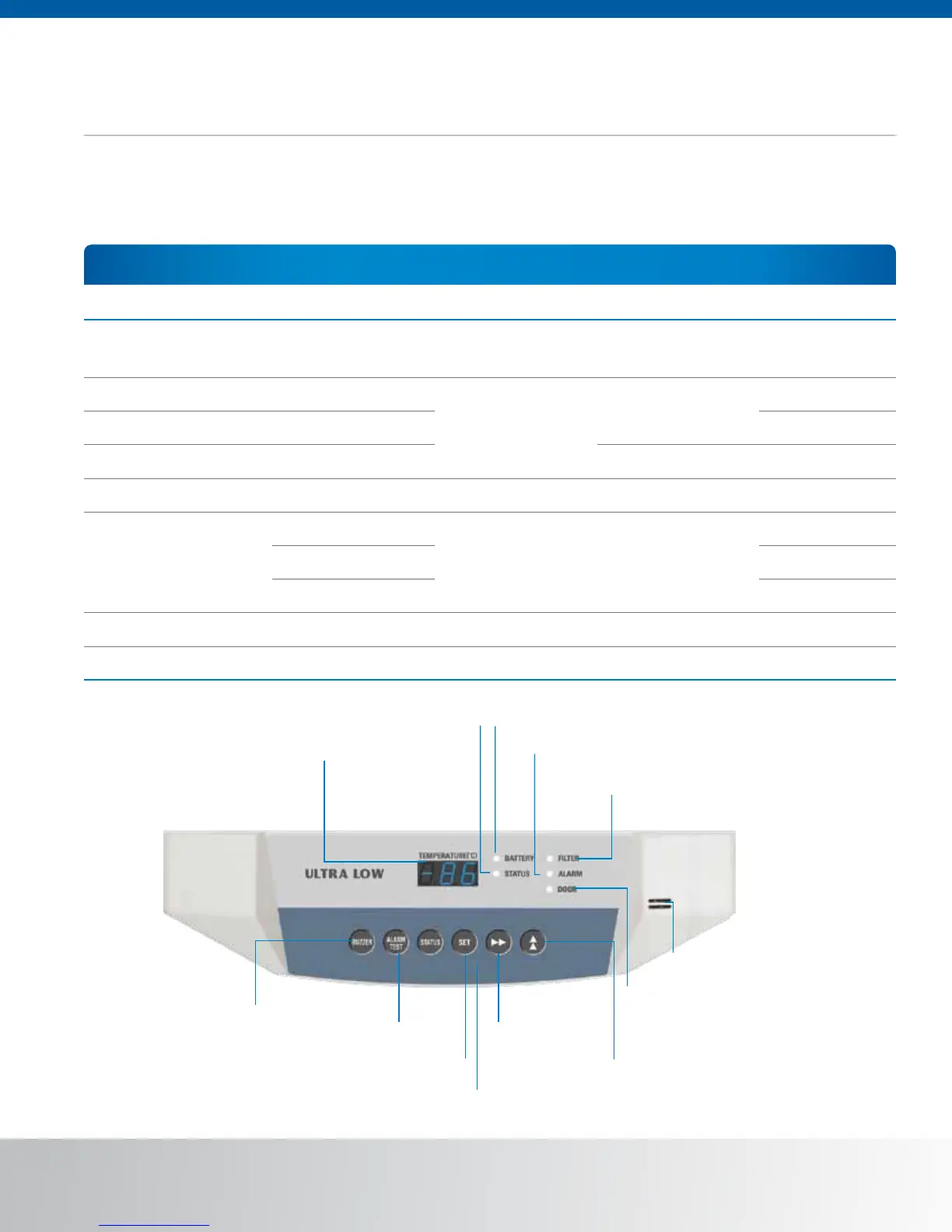

• Alarm indicator lamp glows when freezer is in alarm
condition; alarm ringback is factory set for 30 minutes,
adjustable in 10 minute increments from 10 to 60 minutes.
• Panasonic exclusive Ni-MH battery powers control memory
and alarm functions during power failure.
Status alert function uses predictive intelligence to determine if freezer is
operating within specications under existing environmental conditions.
• Filter indicator lamp glows
when electrostatic lter requires
removal for cleaning.
• Digital display defaults to actual
chamber temperature. Display
mode changes when setpoint, alarm
parameters, programming and
diagnostic functions are performed.
•Compressorstart-updelay
sequence delays re-start after
building power failure; allows
facility power to reach
equilibrium to permit smooth
compressor start-up.
Buzzer silence
temporarily mutes
audible alarm.
Alarm test veries readiness of alarm
function and Ni-MH battery charge.
• Audible alarm.
• Door alarm indicator has
2 minute delay until audible
alarm activates; delay time
is adjustable.
•Setpointentryadvancesdigital
to next value from 0 to 9.
• Setpoint entry advances digital
display to next position.
Alarm setpoints are factory set 10ºC above and below setpoint. Alarm parameters
are adjustable by pressing up or down arrow keys and following the prompt.
Press to set temperature; set button is also
used for other diagnostic functions.
•
•
•
•
