Panasonic NA-V105FX2 - Page 62

62
13.6, Part name for Packing part
1598
1599

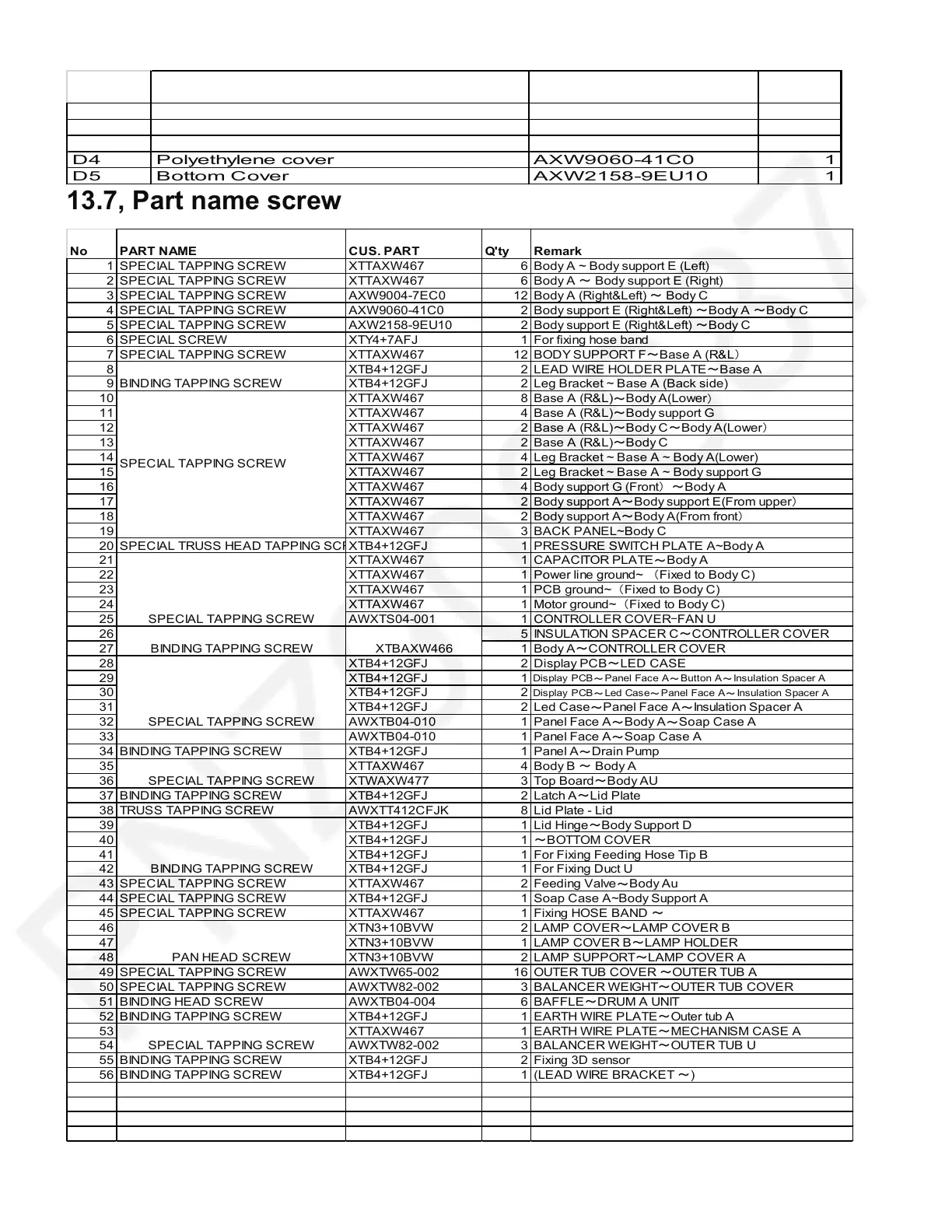

13.7, Part name screw
1600
No PART NAME CUS. PART Q'ty
D1 Protection Case A AXW9001-7EC0 1
D2 Protection Case B Unit AXW9002+C7E0 1
D3 Side Cushion AXW9004-7EC0 1
D4 Polyethylene cover AXW9060-41C0 1
D5 Bottom Cover AXW2158-9EU10 1
No PART NAME CUS. PART Q'ty Remark
1 SPECIAL TAPPING SCREW XTTAXW467 6 Body A ~ Body support E (Left)
2 SPECIAL TAPPING SCREW XTTAXW467 6 Body A
～
Body support E (Right)
3 SPECIAL TAPPING SCREW AXW9004-7EC0 12 Body A (Right&Left)
～
Body C
4 SPECIAL TAPPING SCREW AXW9060-41C0 2 Body support E (Right&Left)
～
Body A
～
Body C
5 SPECIAL TAPPING SCREW AXW2158-9EU10 2 Body support E (Right&Left)
～
Body C
6 SPECIAL SCREW XTY4+7AFJ 1 For fixing hose band
7 SPECIAL TAPPING SCREW XTTAXW467 12 BODY SUPPORT F
～
Base A (R&L
）
8 XTB4+12GFJ 2 LEAD WIRE HOLDER PLATE
～
Base A
9 XTB4+12GFJ 2 Leg Bracket ~ Base A (Back side)
10 XTTAXW467 8 Base A (R&L)
～
Body A(Lower
）
11 XTTAXW467 4 Base A (R&L)
～
Body support G
12 XTTAXW467 2 Base A (R&L)
～
Body C
～
Body A(Lower
）
13 XTTAXW467 2 Base A (R&L)
～
Body C
14 XTTAXW467 4 Leg Bracket ~ Base A ~ Body A(Lower)
15 XTTAXW467 2 Leg Bracket ~ Base A ~ Body support G
16 XTTAXW467 4 Body support G (Front
）～
Body A
17 XTTAXW467 2 Body support A
～
Body support E(From upper
）
18 XTTAXW467 2 Body support A
～
Body A(From front
）
19 XTTAXW467 3 BACK PANEL~Body C
20
SPECIAL TRUSS HEAD TAPPING SCREW
XTB4+12GFJ 1 PRESSURE SWITCH PLATE A~Body A
21 XTTAXW467 1 CAPACITOR PLATE
～
Body A
22 XTTAXW467 1 Power line ground~
（
Fixed to Body C)
23 XTTAXW467 1 PCB ground~
（
Fixed to Body C)
24 XTTAXW467 1 Motor ground~
（
Fixed to Body C)
25 AWXTS04-001 1 CONTROLLER COVER
ｰ
FAN U
26 5 INSULATION SPACER C
～
CONTROLLER COVER
27 1 Body A
～
CONTROLLER COVER
28 XTB4+12GFJ 2 Display PCB
～
LED CASE
29 XTB4+12GFJ 1
Display PCB
～
Panel Face A
～
Button A
～
Insulation Spacer A
30 XTB4+12GFJ 2
Display PCB
～
Led Case
～
Panel Face A
～
Insulation Spacer A
31 XTB4+12GFJ 2 Led Case
～
Panel Face A
～
Insulation Spacer A
32 AWXTB04-010 1 Panel Face A
～
Body A
～
Soap Case A
33 AWXTB04-010 1 Panel Face A
～
Soap Case A
34 BINDING TAPPING SCREW XTB4+12GFJ 1 Panel A
～
Drain Pump
35 XTTAXW467 4 Body B
～
Body A
36 XTWAXW477 3 Top Board
～
Body AU
37 BINDING TAPPING SCREW XTB4+12GFJ 2 Latch A
～
Lid Plate
38 TRUSS TAPPING SCREW AWXTT412CFJK 8 Lid Plate - Lid
39 XTB4+12GFJ 1 Lid Hinge
～
Body Support D
40 XTB4+12GFJ 1
～
BOTTOM COVER
41 XTB4+12GFJ 1 For Fixing Feeding Hose Tip B
42 XTB4+12GFJ 1 For Fixing Duct U
43 SPECIAL TAPPING SCREW XTTAXW467 2 Feeding Valve
～
Body Au
44 SPECIAL TAPPING SCREW XTB4+12GFJ 1 Soap Case A~Body Support A
45 SPECIAL TAPPING SCREW XTTAXW467 1 Fixing HOSE BAND
～
46 XTN3+10BVW 2 LAMP COVER
～
LAMP COVER B
47 XTN3+10BVW 1 LAMP COVER B
～
LAMP HOLDER
48 XTN3+10BVW 2 LAMP SUPPORT
～
LAMP COVER A
49 SPECIAL TAPPING SCREW AWXTW65-002 16 OUTER TUB COVER
～
OUTER TUB A
50 SPECIAL TAPPING SCREW AWXTW82-002 3 BALANCER WEIGHT
～
OUTER TUB COVER
51 BINDING HEAD SCREW AWXTB04-004 6 BAFFLE
～
DRUM A UNIT
52 BINDING TAPPING SCREW XTB4+12GFJ 1 EARTH WIRE PLATE
～
Outer tub A
53 XTTAXW467 1 EARTH WIRE PLATE
～
MECHANISM CASE A
54 AWXTW82-002 3 BALANCER WEIGHT
～
OUTER TUB U
55 BINDING TAPPING SCREW XTB4+12GFJ 2 Fixing 3D sensor
56 BINDING TAPPING SCREW XTB4+12GFJ 1 (LEAD WIRE BRACKET
～
)
57 SPECIAL TAPPING SCREW AWXTW65-001 2 Fixing Motor
～
Outer tub A
58 SPECIAL TAPPING SCREW AWXTW82-002 2 BALANCER WEIGHT
～
Outer tub cover
60 BINDING TAPPING SCREW XTB4+10FFJ 2 Drain Pump
～
Body Support G
61 SPECIAL TAPPING SCREW AWXTW82-001 2 Drain Pump
～
Body Support G
BINDING TAPPING SCREW
SPECIAL TAPPING SCREW
PAN HEAD SCREW
SPECIAL TAPPING SCREW
SPECIAL TAPPING SCREW
BINDING TAPPING SCREW XTBAXW466
SPECIAL TAPPING SCREW
SPECIAL TAPPING SCREW
BINDING TAPPING SCREW
