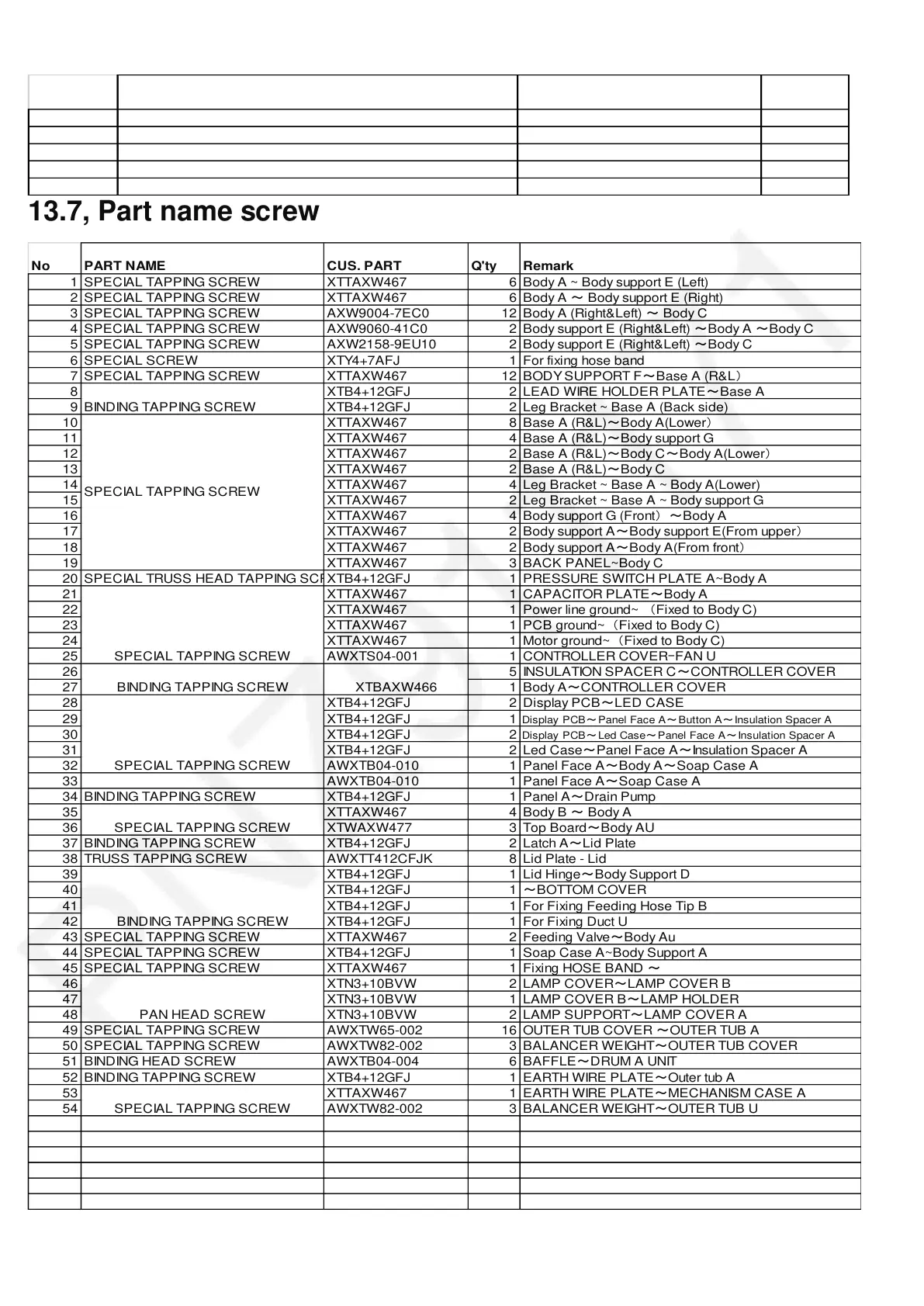

No PART NAME CUS. PART Q'ty Remark
1 SPECIAL TAPPING SCREW XTTAXW467 6 Body A ~ Body support E (Left)
2 SPECIAL TAPPING SCREW XTTAXW467 6 Body A ～ Body support E (Right)
3 SPECIAL TAPPING SCREW AXW9004-7EC0 12 Body A (Right&Left) ～ Body C
4 SPECIAL TAPPING SCREW AXW9060-41C0 2 Body support E (Right&Left) ～Body A ～Body C
5 SPECIAL TAPPING SCREW AXW2158-9EU10 2 Body support E (Right&Left) ～Body C
6 SPECIAL SCREW XTY4+7AFJ 1 For fixing hose band
7 SPECIAL TAPPING SCREW XTTAXW467 12 BODY SUPPORT F～Base A (R&L）
8 XTB4+12GFJ 2 LEAD WIRE HOLDER PLATE～Base A
9 XTB4+12GFJ 2 Leg Bracket ~ Base A (Back side)
10 XTTAXW467 8 Base A (R&L)～Body A(Lower）
11 XTTAXW467 4 Base A (R&L)～Body support G
12 XTTAXW467 2 Base A (R&L)～Body C～Body A(Lower）
13 XTTAXW467 2 Base A (R&L)～Body C
14 XTTAXW467 4 Leg Bracket ~ Base A ~ Body A(Lower)
15 XTTAXW467 2 Leg Bracket ~ Base A ~ Body support G
16 XTTAXW467 4 Body support G (Front）～Body A
17 XTTAXW467 2 Body support A～Body support E(From upper）
18 XTTAXW467 2 Body support A～Body A(From front）
19 XTTAXW467 3 BACK PANEL~Body C
20
XTB4+12GFJ 1 PRESSURE SWITCH PLATE A~Body A
21 XTTAXW467 1 CAPACITOR PLATE～Body A
22 XTTAXW467 1 Power line ground~ （Fixed to Body C)
23 XTTAXW467 1 PCB ground~（Fixed to Body C)
24 XTTAXW467 1 Motor ground~（Fixed to Body C)
25 AWXTS04-001 1 CONTROLLER COVERｰFAN U
26 5 INSULATION SPACER C～CONTROLLER COVER
27 1 Body A～CONTROLLER COVER
28 XTB4+12GFJ 2 Display PCB～LED CASE
29 XTB4+12GFJ 1 Display PCB～Panel Face A～Button A～Insulation Spacer A
30 XTB4+12GFJ 2 Display PCB～Led Case～Panel Face A～Insulation Spacer A
31 XTB4+12GFJ 2 Led Case～Panel Face A～Insulation Spacer A
32 AWXTB04-010 1 Panel Face A～Body A～Soap Case A
33 AWXTB04-010 1 Panel Face A～Soap Case A
34 BINDING TAPPING SCREW XTB4+12GFJ 1 Panel A～Drain Pump
35 XTTAXW467 4 Body B ～ Body A
36 XTWAXW477 3 Top Board～Body AU
37 BINDING TAPPING SCREW XTB4+12GFJ 2 Latch A～Lid Plate
38 TRUSS TAPPING SCREW AWXTT412CFJK 8 Lid Plate - Lid
39 XTB4+12GFJ 1 Lid Hinge～Body Support D
40 XTB4+12GFJ 1 ～BOTTOM COVER
41 XTB4+12GFJ 1 For Fixing Feeding Hose Tip B
42 XTB4+12GFJ 1 For Fixing Duct U
43 SPECIAL TAPPING SCREW XTTAXW467 2 Feeding Valve～Body Au
44 SPECIAL TAPPING SCREW XTB4+12GFJ 1 Soap Case A~Body Support A
45 SPECIAL TAPPING SCREW XTTAXW467 1 Fixing HOSE BAND ～
46 XTN3+10BVW 2 LAMP COVER～LAMP COVER B
47 XTN3+10BVW 1 LAMP COVER B～LAMP HOLDER
48 XTN3+10BVW 2 LAMP SUPPORT～LAMP COVER A
49 SPECIAL TAPPING SCREW AWXTW65-002 16 OUTER TUB COVER ～OUTER TUB A
50 SPECIAL TAPPING SCREW AWXTW82-002 3 BALANCER WEIGHT～OUTER TUB COVER
51 BINDING HEAD SCREW AWXTB04-004 6 BAFFLE～DRUM A UNIT
52 BINDING TAPPING SCREW XTB4+12GFJ 1 EARTH WIRE PLATE～Outer tub A
53 XTTAXW467 1 EARTH WIRE PLATE～MECHANISM CASE A
54 AWXTW82-002 3 BALANCER WEIGHT～OUTER TUB U
55 BINDING TAPPING SCREW XTB4+12GFJ 2 Fixing 3D sensor
56 BINDING TAPPING SCREW XTB4+12GFJ 1 (LEAD WIRE BRACKET ～)
57 SPECIAL TAPPING SCREW AWXTW65-001 2 Fixing Motor ～ Outer tub A
58 SPECIAL TAPPING SCREW AWXTW82-002 2 BALANCER WEIGHT～Outer tub cover
60 BINDING TAPPING SCREW XTB4+10FFJ 2 Drain Pump～Body Support G
61 SPECIAL TAPPING SCREW AWXTW82-001 2 Drain Pump～Body Support G
