Filtercartridge
It may only be used together with the
BRITA INTENZA water filter cartridge;
cartridge is not supplied by default.
Cartridges are available from your local
BRITA or Panasonic customer service:
www.brita.net
http://panasonic.net/
(Availability varies by country.)

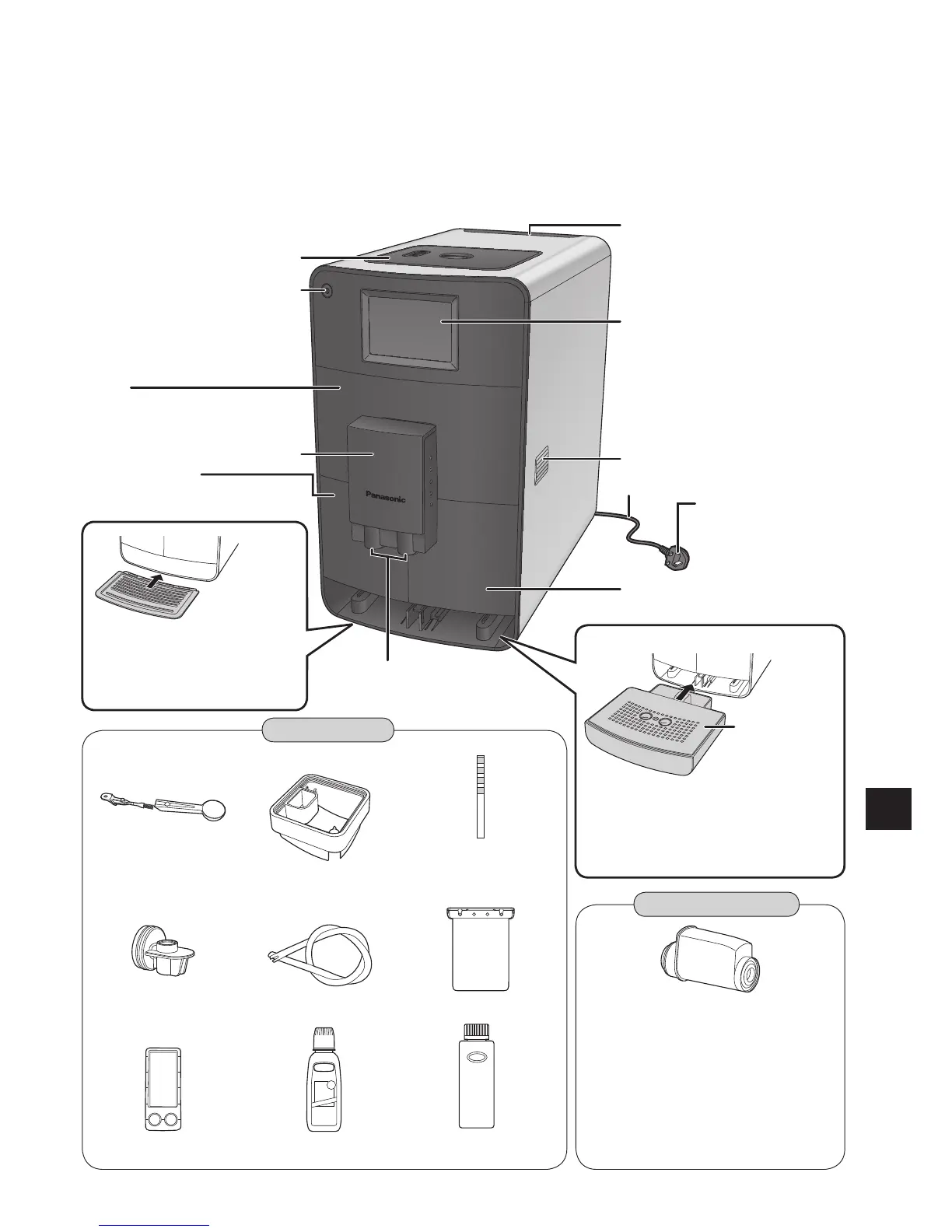

PartsNamesandHandling
Instructions
Q Wash the all detachable parts before using the appliance for the first time or when you have not used it for a while. (P. EN33)
For parts names inside the door, refer to “How to Clean” on pages EN34–EN36.
Coffeebeancontainer(P.EN10)
Quickreference(Inserted)
Powerbutton
Display(P.EN11,EN12)
Steamvent
Dispenser
Door
Open the door by pressing it.
Make sure top of the door and
dispenser are same high.
Powercord
Spout
Powerplug
* The shape of plug may
be different from
illustration.
Wastecontainer
Push the waste container and pull
it out.
Watertank(P.EN10)
Soldseparately
Driptray
Stainlesssteel
plate
Place the stainless steel plate (rounded
edge is facing up) on the drip tray.
Push them into the espresso machine until
they snap into place.
Open the drip tray by pressing it.
LatteMacchiatoplate
Close the drip tray by pressing it
and place the Latte Macchiato
plate until it snaps into place.
Measuringspoon
(
with cleaning brush
and setting function
Adapter
(for filter cartridge)
Cleaningtablets*
Beancontainer
extension(P.EN10)
Milkhose
Descalingagent*
Teststrip
(
for determining the
water hardness
Quickreference
Milksystemcleaner*
)
)
Accessories
