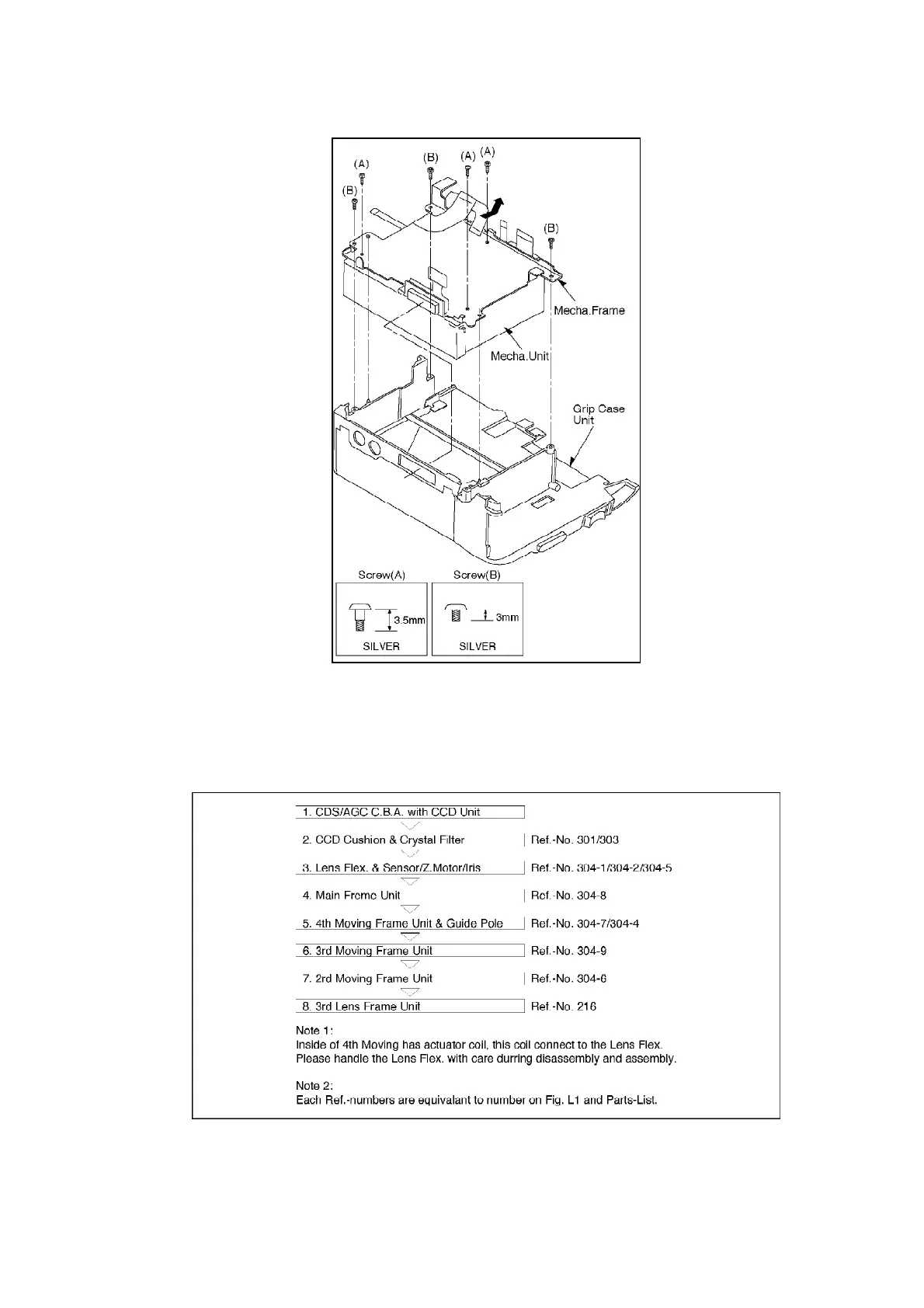

5.3. DISASSEMBLY PROCEDURES OF LENS UNIT
The following flowchart describes order or steps for removing the lens units and certain printed
circuit boards in order to make access to the item needing service.
To reassemble the unit follow the steps in reverse order.
Fig.L1
