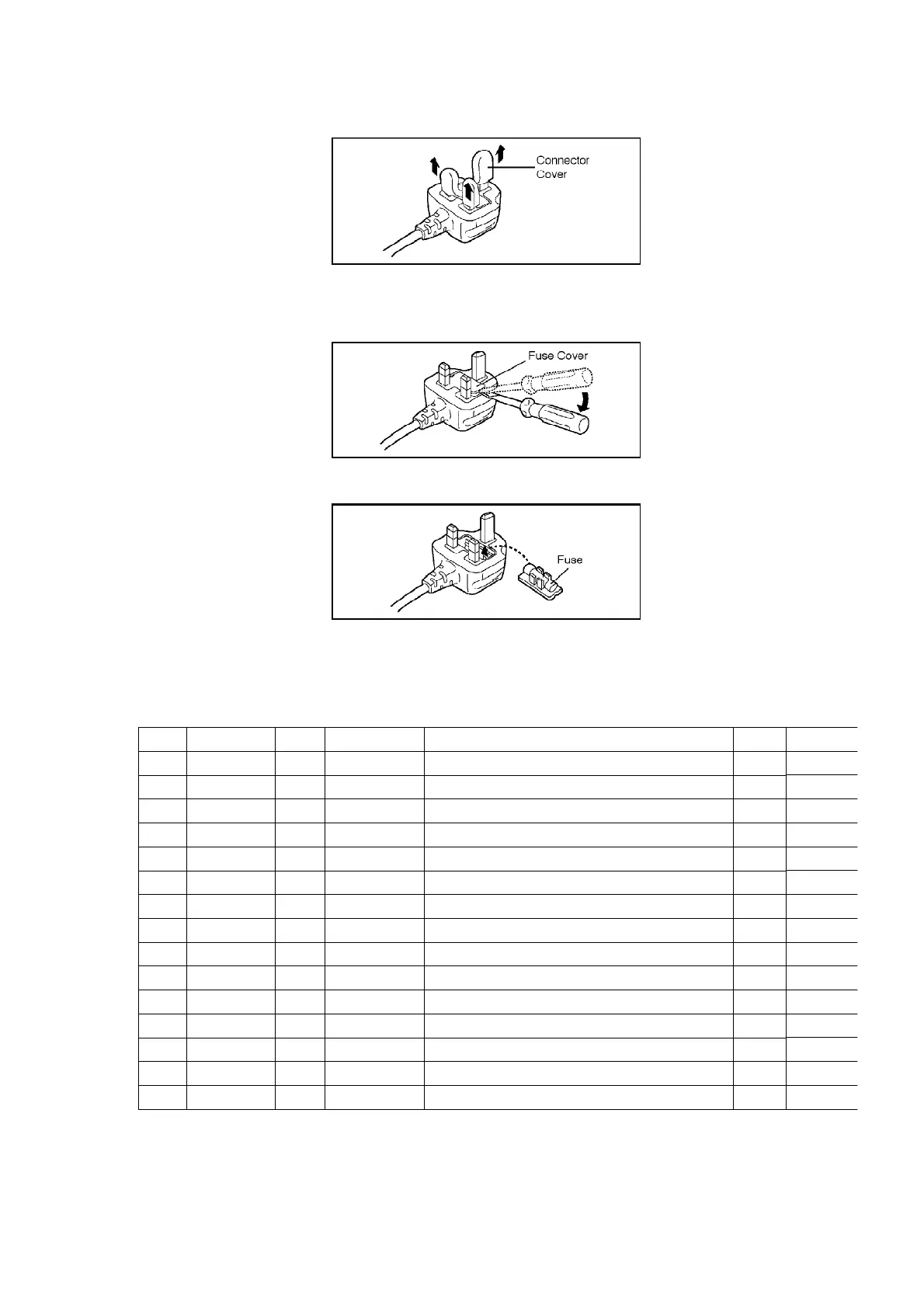

2.2.3. How to replace the Fuse
1. Remove the Fuse Cover with a screwdriver.
2. Replace the fuse and attach the Fuse cover.
3. SERVICE INFORMATION
3.1. Service Extension Cables
No. Part No. Pin Part Name Connection Q'ty
1 VFK1443 18 Flat Cable FP2201 (VTR Main)-Mecha. Cap. 1
2 VFK1443 18 Flat Cable FP2203 (VTR Main)-Mecha. Flex. 1
3 VFK1440 10 Flat Cable FP2202 (VTR Main)-Mecha. Cyl. 1
4 VFK1284 24 Flat Cable FP3201 (VTR Main)-Head Amp 1
5 VFK1441 8 Flat Cable FP2204 (VTR Main)-Mecha. Flex. 1
6 VFK1452 17 Flat Cable FP4001 (VTR Main)-FP4801 (Mic Unit) 1
7 VFK1453 40 Flat Cable PP202 (Camera)-PS202 (CDS/AGC) 1
8 VFK1442 21 Flat Cable FP701 (Camera)-Lens Flex. 1
9 VFK1437 110 Flat Cable PS3004 (VTR Main)-PP702 (Camera) 1
10 VFK1443 18 Flat Cable FP6002 (VTR Main)-Top Operation Unit 1
11 VFK1440 10 Flat Cable FP1002 (Power)-S/S Power Flex. 1
12 VFK1443 18 Flat Cable FP603 (Camera)-EVF 1
13 VFK1438 80 Flat Cable PP1001 (VTR Main)-PS1001 (Power) 1
14 VFK1439 30 Flat Cable PP710 (Camera)-PS1002 (Power) 1
15 VFK1439 30 Flat Cable PP3002 (VTR Main)-PS3002 (Multi Jack) 1
3.1.1. Pin Arrangement for Extension Cable
