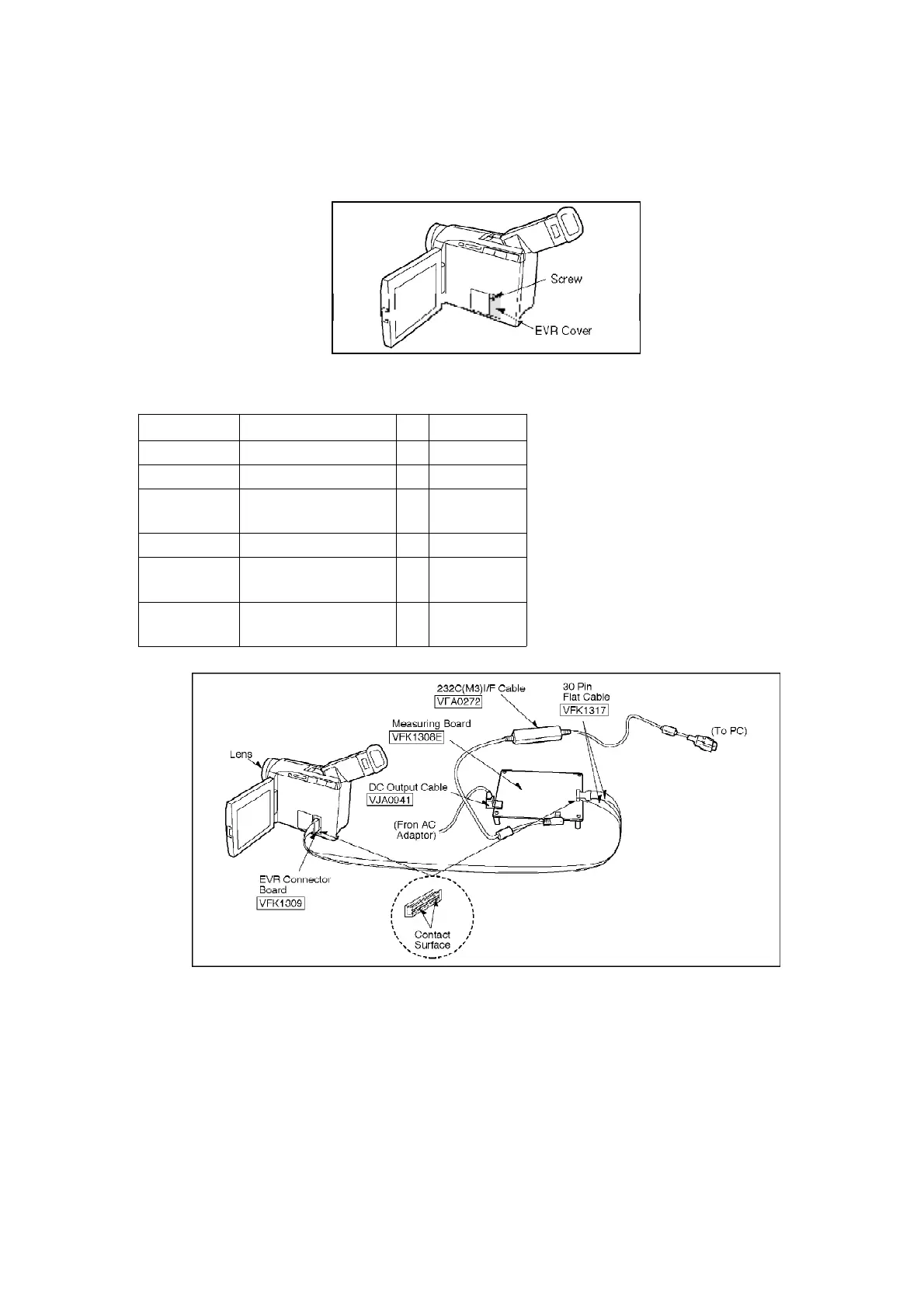

3.3. Preparation for Electrical Adjustment
Remove Screw and EVR Cover which is located on the Side Case Unit as follows.
<Fig.E1>
Then connect the following cables as shown in Fig. E2.
Part No. Part Name
Q'ty
Remarks
VFA0272 232C (M3) I/F Cable 1
VFK1308E Measuring Board 1
VFK1309 EVR Connector
Board
1
VFK1317 30 Pin Flat Cable 2
VJA0941 DC Output Cable 1 For AC
Adapter
VFK1164TAR3A
Setup Ring (Φ 30.5
mm)
1 For
Collimator
<Fig.E2>
