2 Service Fixture & Tools
2.1. Service Position

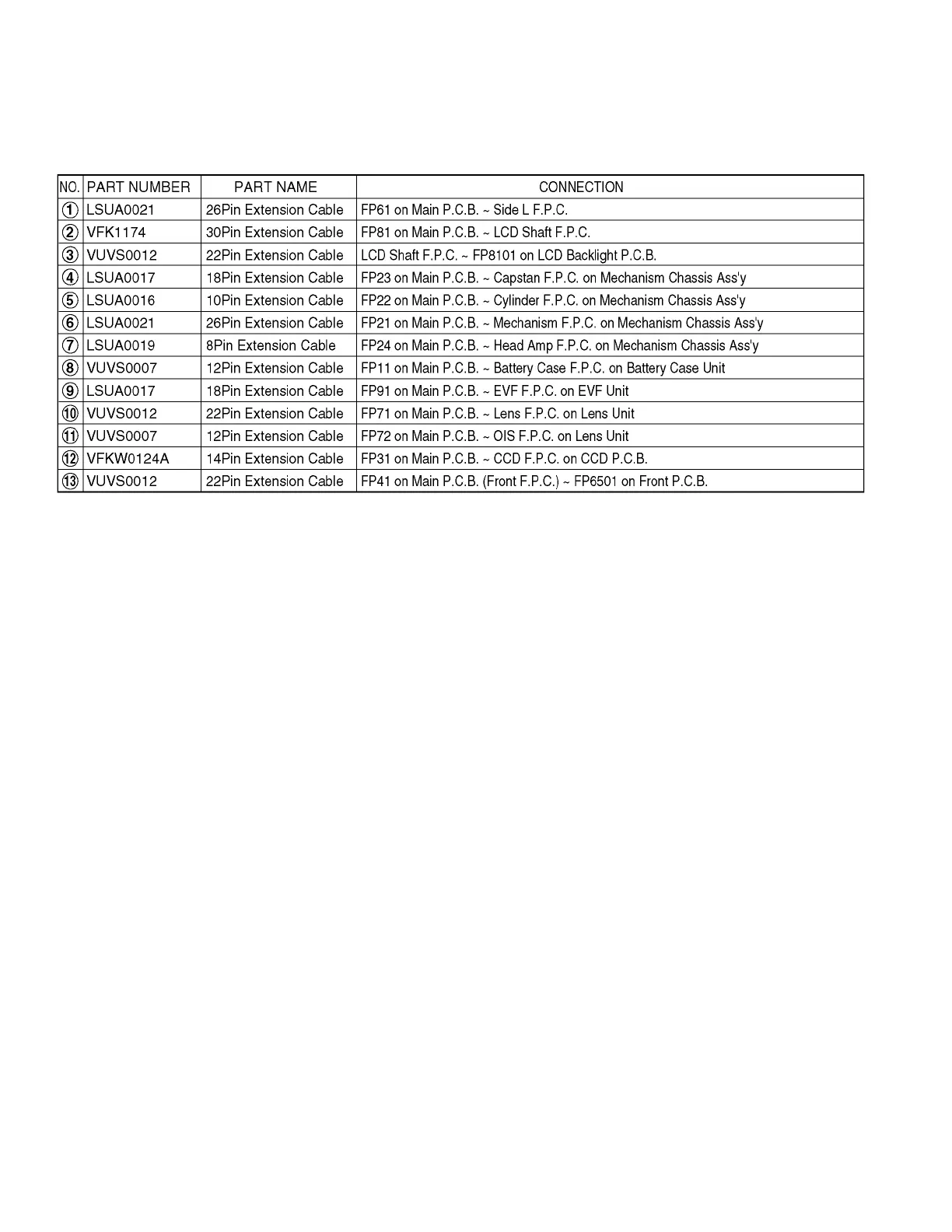

2.1.1. Extension Cables for Service Position
Using the following Extension Cables, place the unit as shown for check and service.
Note:
1. The LCD open/close Switch is for changing between LCD Display and EVF Display. When turning on EVF Display, close the
LCD Shaft so that LCD open/close Switch stays ON.
2. To eject the Mechanism, hold down the Eject Switch on the Side L Operation Unit for a short time, or open the Cassette Cover
of the Side L Operation Unit.
3. Use a grounded ESD wrist strap while disassembling the Lens portion.
4. Connect the F.P.C.s to the connectors, verifying the direction of F.P.C.s.
5. Use extreme care when plugging in or unplugging connectors.
4
