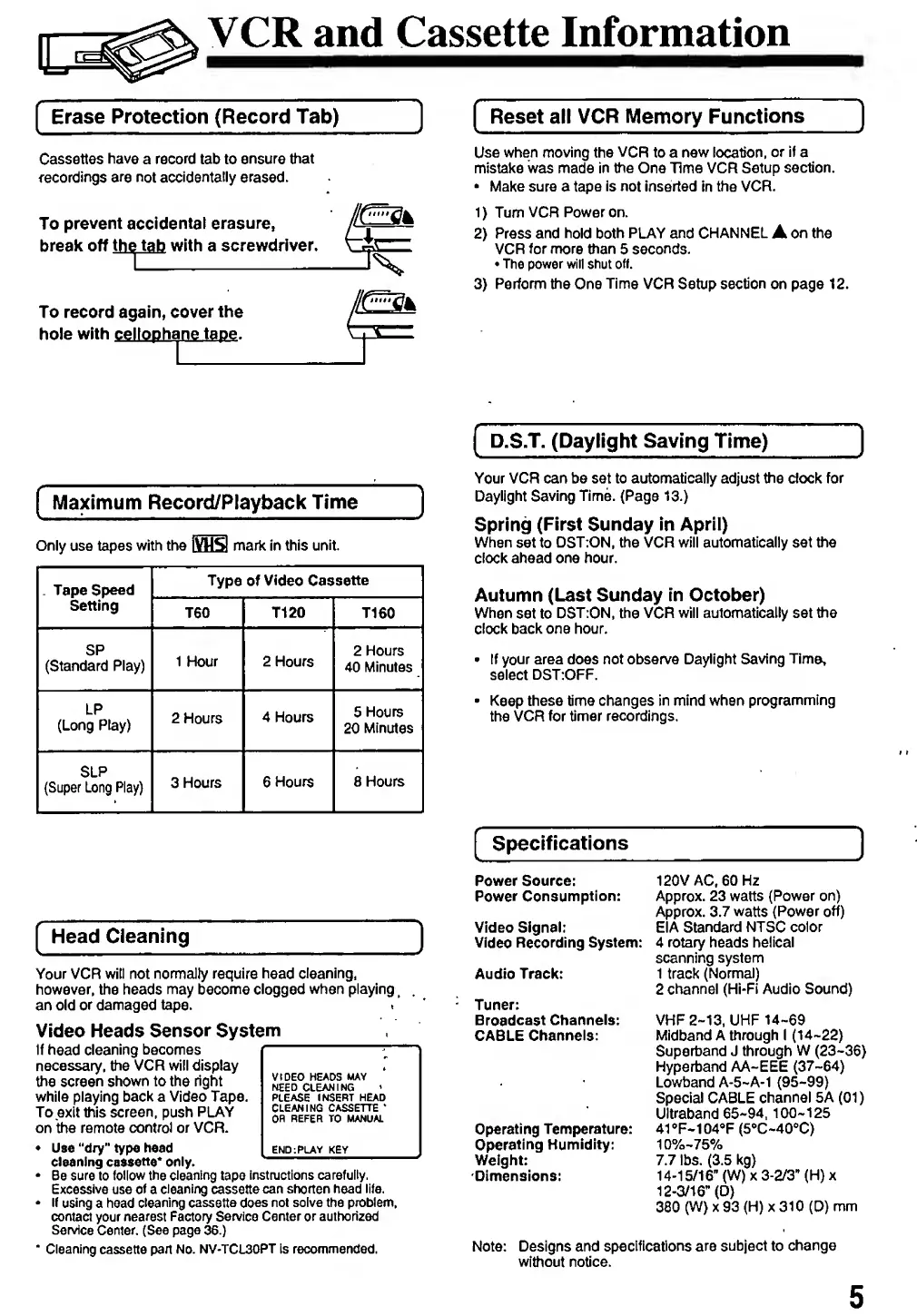

VCR and Cassette Information
r
Erase Protection (Record Tab) Reset all VCR Memory Functions
Cassettes have a record tab to ensure that
recordings are not accidentally erased.
To prevent accidental erasure,
break off the tab with a screwdriver.
To record again, cover the
hole with cellophane tape .
Use when moving the VCR to a new location, or if a
mistake was made in the One Time VCR Setup section.
• Make sure a tape is not inserted in the VCR.
1) Turn VCR Power on.
2) Press and hold both PLAY and CHANNEL A on the
VCR for more than 5 seconds.
• The power will shut off.
3) Perform the One Time VCR Setup section on page 12.
--
Maximum Record/Playback Time
Only use tapes with the IVHSl mark in this unit.
Tape Speed
Setting
Type of Video Cassette
T60 T120
T160
SP
(Standard Play)
1 Hour
2 Hours
2 Hours
40 Minutes
LP
(Long Play)
2 Hours
4 Hours
5 Hours
20 Minutes
SLP
(Super Long Play)
3 Hours
6 Hours
8 Hours
Head Cleaning
Your VCR will not normally require head cleaning,
however, the heads may become clogged when playing t
an old or damaged tape.
Video Heads Sensor System
If head cleaning becomes
necessary, the VCR will display
the screen shown to the right
while playing back a Video Tape.
To exit this screen, push PLAY
on the remote control or VCR.
• Use "dry" type head
cleaning cassette* only.
• Be sure to follow the cleaning tape instructions carefully.
Excessive use of a cleaning cassette can shorten head life.
• If using a head cleaning cassette does not solve the problem,
contact your nearest Factory Service Center or authorized
Service Center. (See page 36.)
• Cleaning cassette part No. NV-TCL30PT is recommended.
VIDEO HEADS MAY
NEED CLEANING '
PLEASE INSERT HEAD
CLEANING CASSETTE ‘
OR REFER TO MANUAL
END:PLAY KEY
— . . — — — “ 11 — 1 --- '
D.S.T. (Daylight Saving Time)_
Your VCR can be set to automatically adjust the clock for
Daylight Saving Time. (Page 13.)
Spring (First Sunday in April)
When set to OST:ON, the VCR will automatically set the
clock ahead one hour.
Autumn (Last Sunday in October)
When set to DST:ON, the VCR will automatically set the
clock back one hour.
• If your area does not observe Daylight Saving Time,
select DST:OFF.
• Keep these time changes in mind when programming
the VCR for timer recordings.
Specifications
Power Source:
Power Consumption:
Video Signal:
Video Recording System:
Audio Track:
Tuner:
Broadcast Channels:
CABLE Channels:
Operating Temperature:
Operating Humidity:
Weight:
Dimensions:
120V AC, 60 Hz
Approx. 23 watts (Power on)
Approx. 3.7 watts (Power off)
El A Standard NTSC color
4 rotary heads helical
scanning system
1 track (Normal)
2 channel (Hi-Fi Audio Sound)
VHF2-13, UHF 14-69
Midband A through I (14-22)
Superband J through W (23-36)
Hyperband AA-EEE (37-64)
Lowband A-5-A-1 (95-99)
Special CABLE channel 5A (01)
Ultraband 65-94,100-125
41°F-104°F (5°C~40°C)
10 %~ 75 %
7.7 IbS. (3.5 kg)
14-15/16” (W) x 3-2/3" (H) x
12-3/16" (D)
380 (W) x 93 (H) x 310 (D) mm
Note: Designs and specifications are subject to change
without notice.
5
