5.3.2.1 Disassembly Procedure
TOP PREVIOUS NEXT
1. Remove the Sensor Cover by releasing Locking Tab (D).
2. Remove the Opener Lever by releasing 2 Locking Tabs (E). Then remove the Drive Rack Unit.

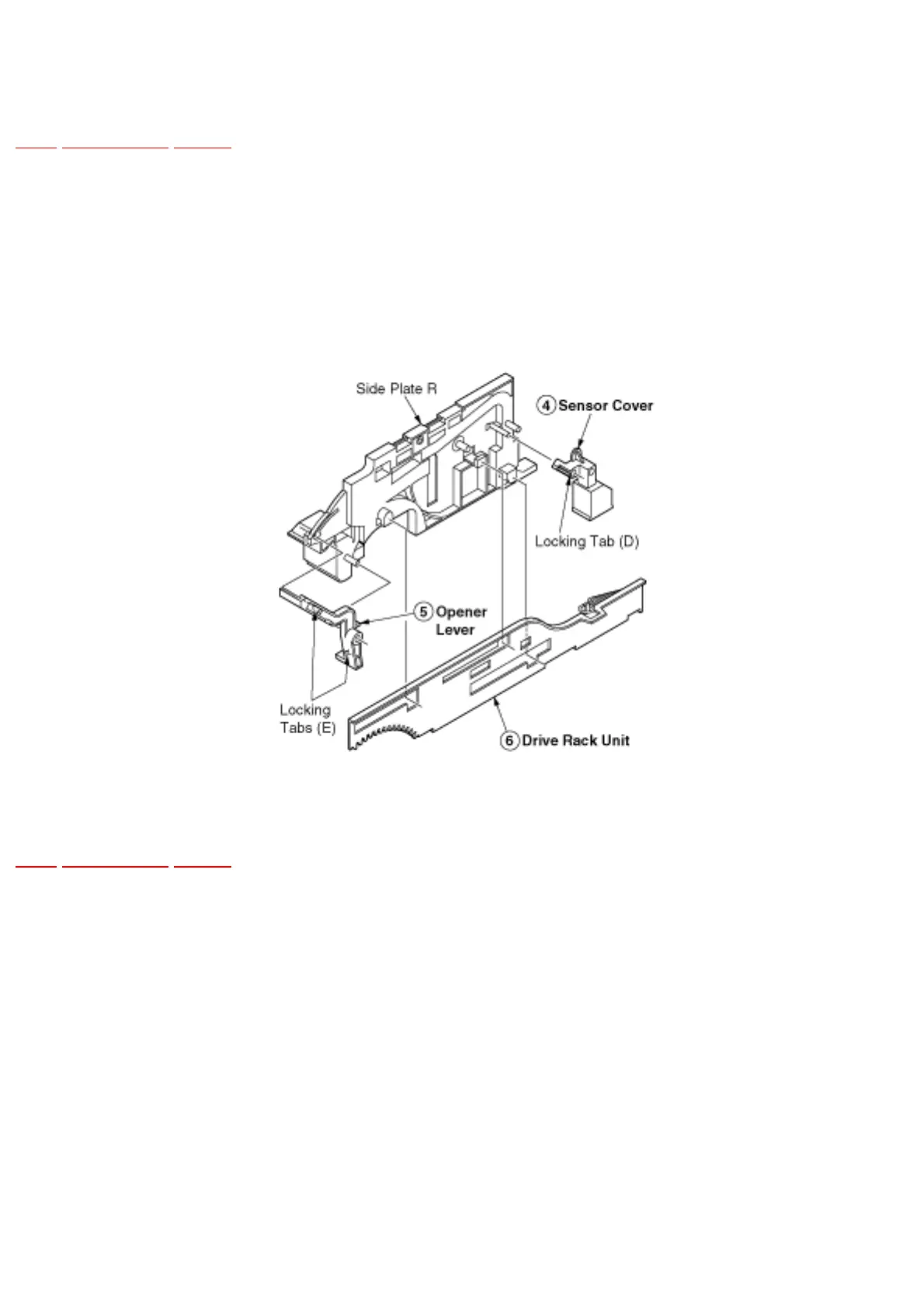

Fig. K2
