4.1.4 SERVICE MODE
TOP PREVIOUS NEXT

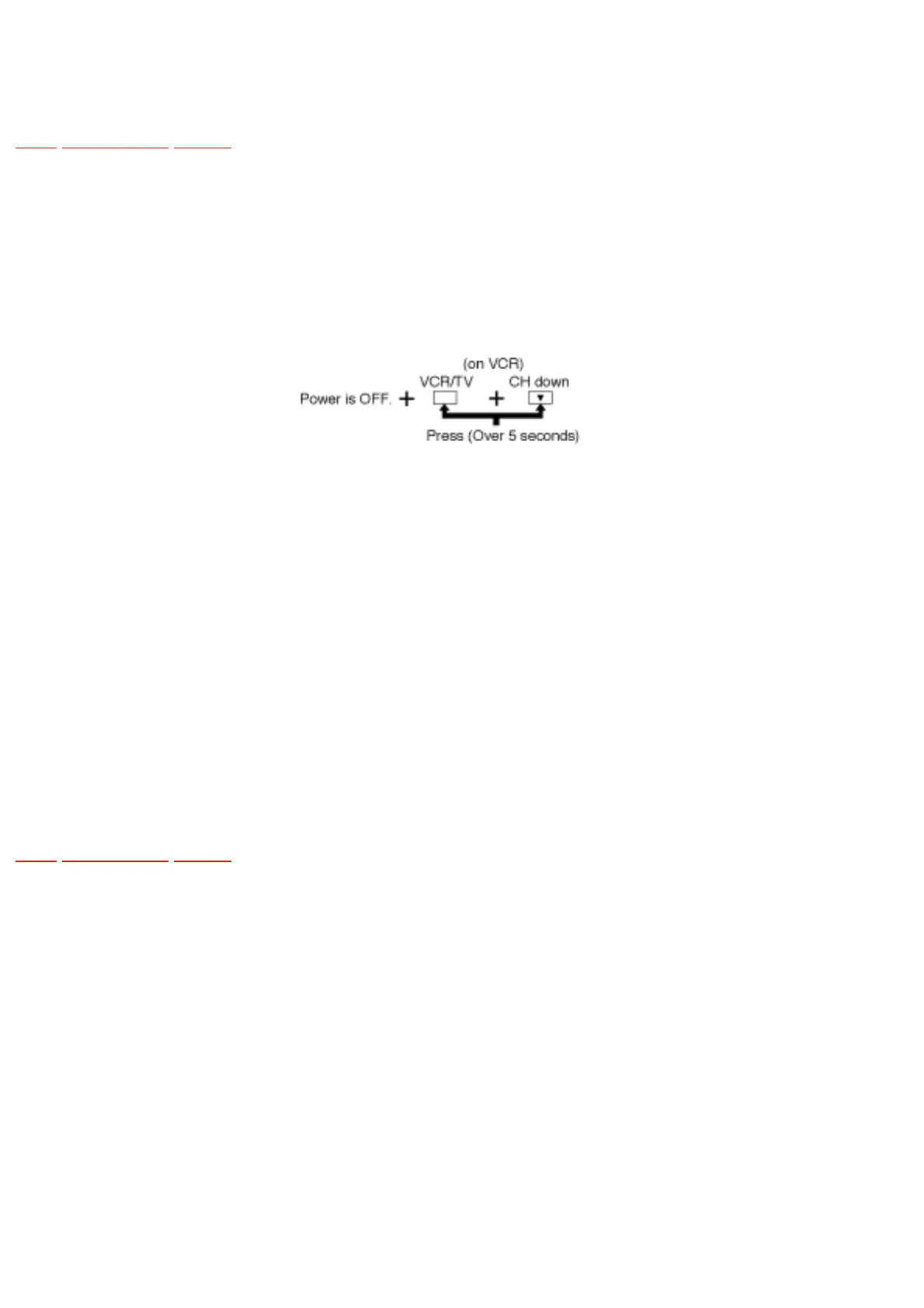

In order to inhibit detection of the Supply & Takeup Photo Transistors, Reel Sensor, and Cylinder
Lock, press VCR/TV button and CH down button together on VCR for over 5 seconds in power off
condition.
Fig. 3
The power comes on and the unit goes into service mode.
In this mode, Mechanism movement can be confirmed. When removing Cassette Up Ass´y, it can be
confirmed without a cassette.
To release from this mode, press POWER button off or disconnect AC Plug.
(Alternative method)
Ground the TP6001.
