5.1.3.1 Disassembly Procedure
TOP PREVIOUS NEXT

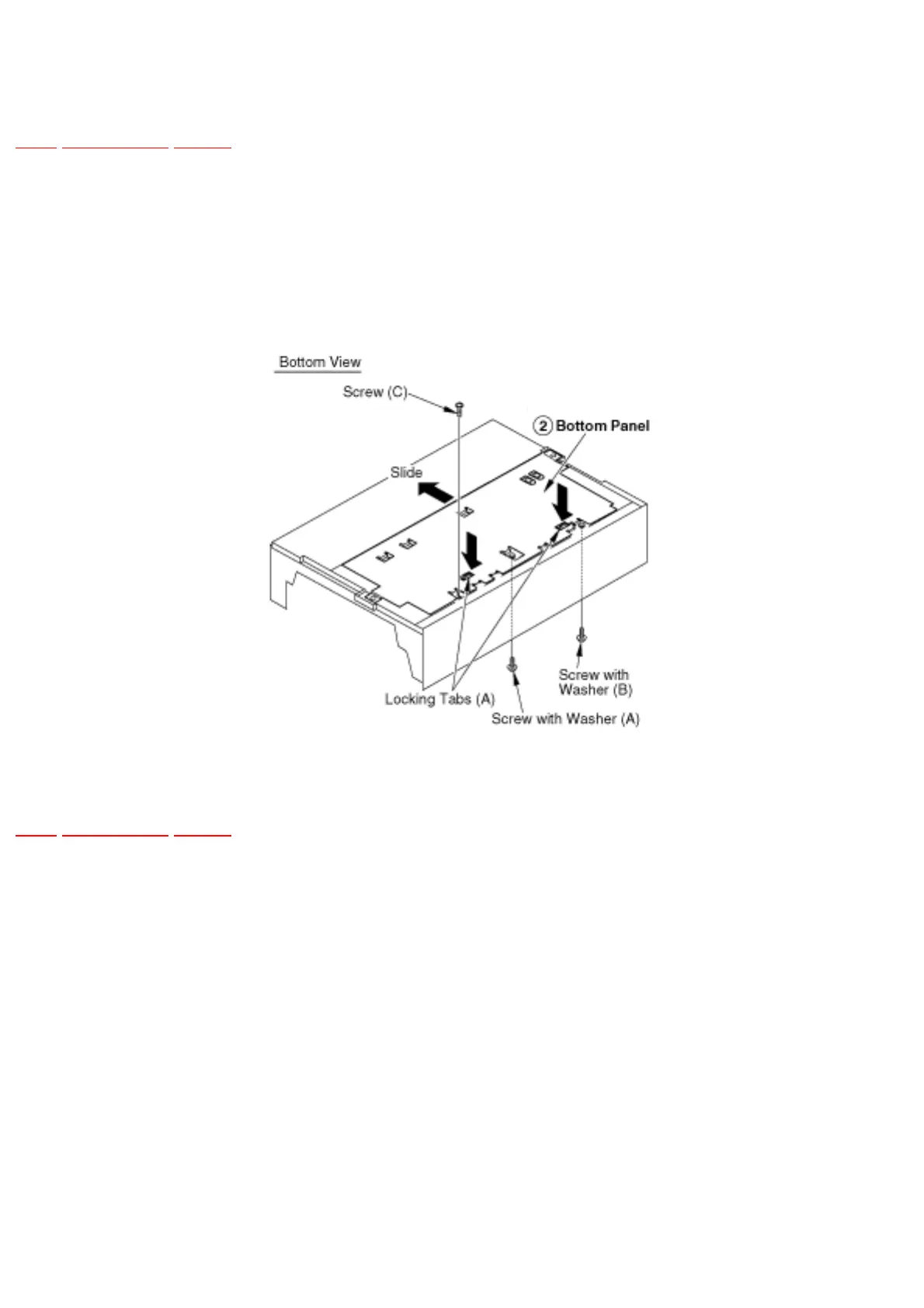

1. Remove 2 Screws with Washers (A), (B), and Screw (C).
2. While pushing 2 Locking Tabs (A) to release, slide the Bottom Panel and remove.
Fig. D3
