5.1.7.1 Disassembly Procedure
TOP PREVIOUS NEXT

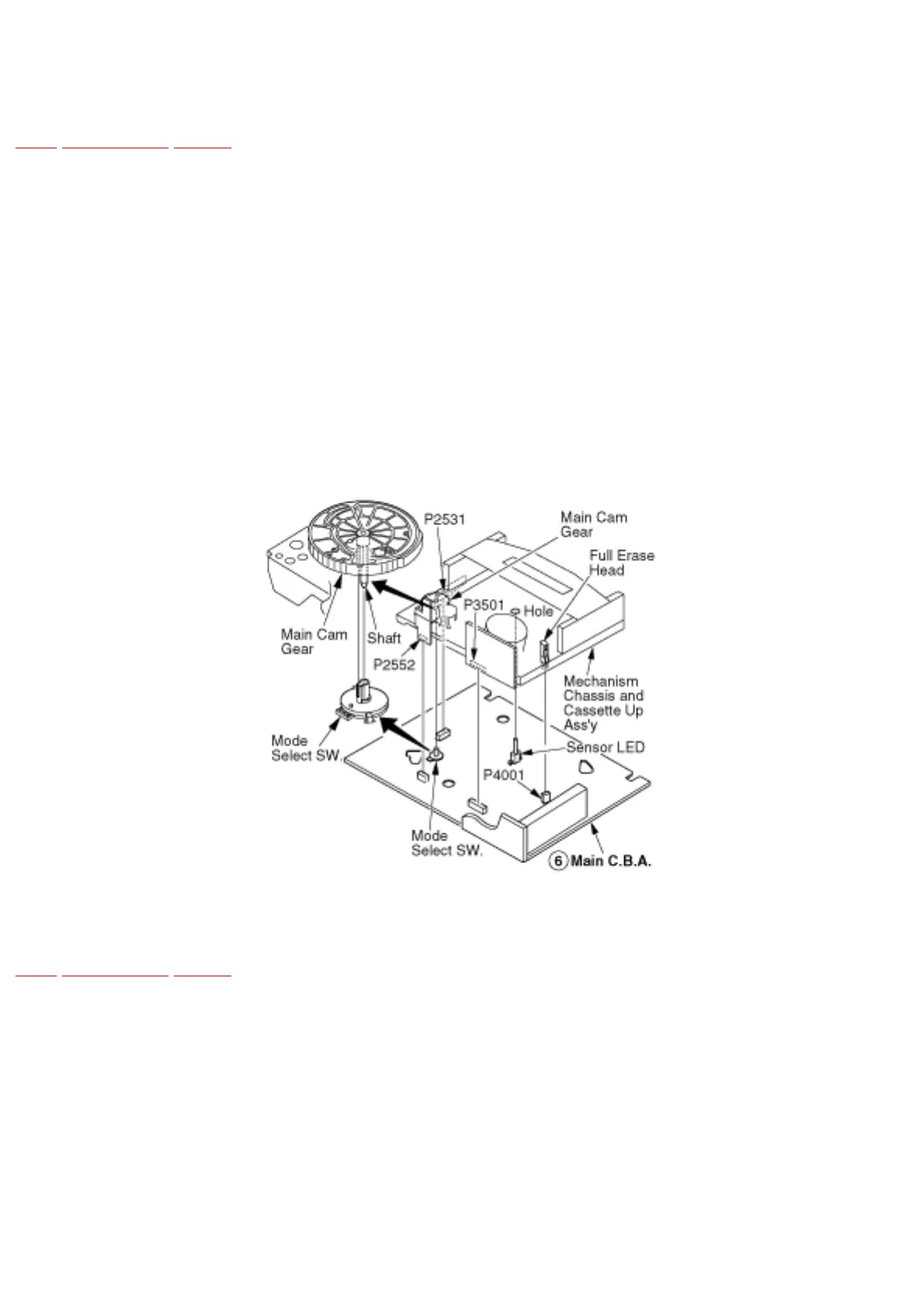

1. Disconnect 4 Connectors of P2531, P2552, P3501 and P4001.
2. Carefully lift the Mechanism Chassis and Cassette Up Ass´y straight out from the Main C.B.A.
Note:
Work carefully so as not to break Sensor LED, when lifting the Mechanism Chassis and Cassette Up
Ass´y.
Fig. D7-1
