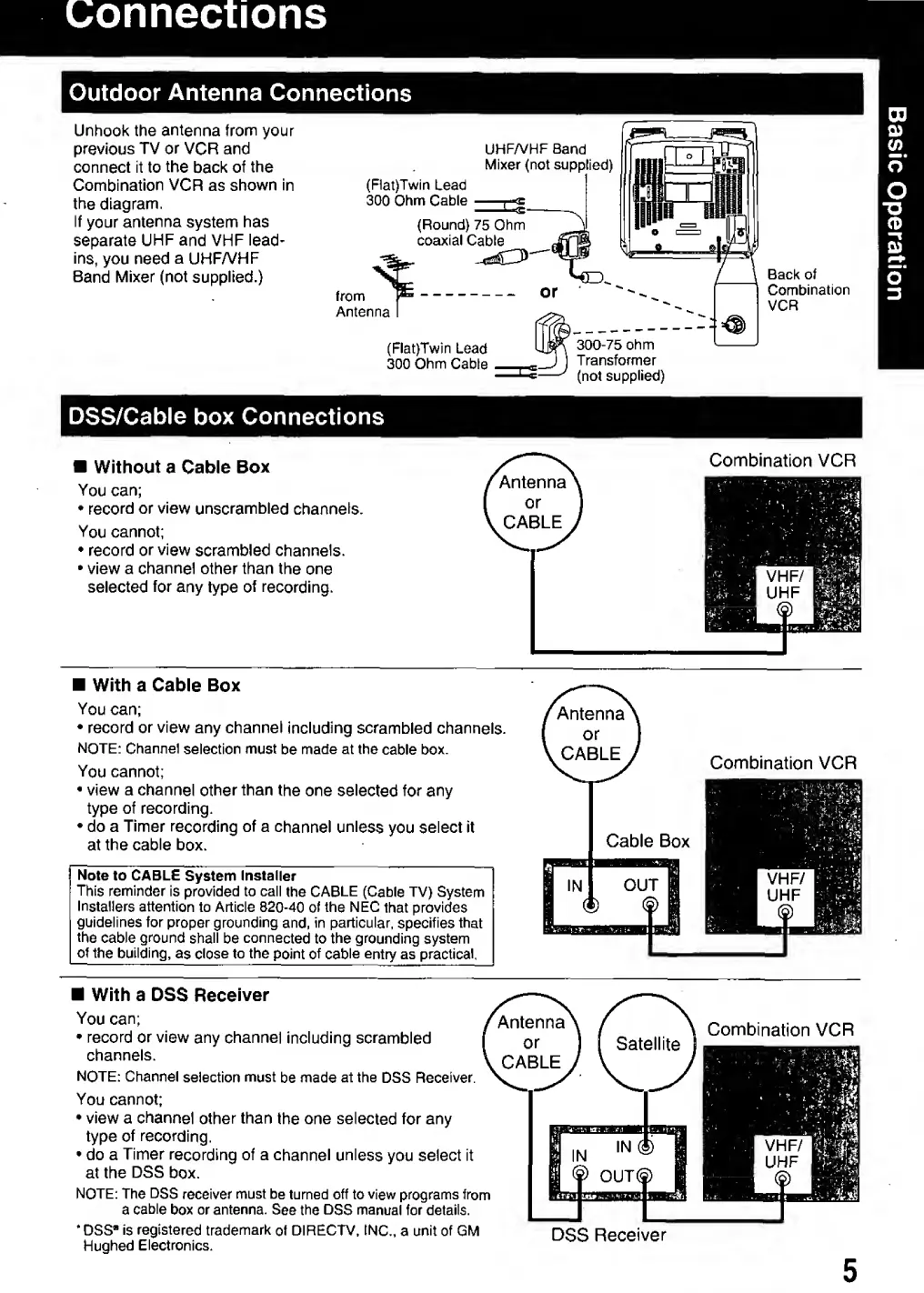

connections
Outdoor Antenna
Connections
Unhook the
antenna
from your
previous TV
or
VCR and
connect it to
the
back
of
the
Combination
VCR
as
shown in
the diagram.
If
your
antenna
system has
separate
UHF
and
VHF
lead-
ins,
you need
a
UHF/VHF
Band
Mixer (not
supplied.)
UHF/VHF Band
Mixer (not
supplied)
(Flat)Twin
Lead
300
Ohm Cable
from
Antenna
(Flat)Twin Lead
300
Ohm
Cable
300-75 ohm
Transformer
(not
supplied)
Back of
Combination
VCR
DSS/Cable box Connections
Without a Cable
Box
You can;
record
or view unscrambled
channels.
You cannot;
record
or view
scrambled
channels.
view a
channel
other than the
one
selected
for
any type
of
recording.
Combination VCR
With a Cable Box
You
can;
record
or view
any channel
including scrambled
channels.
NOTE: Channel
selection
must
be
made at the
cable
box.
You cannot;
view a channel
other
than
the one selected for
any
type of recording.
do a
Timer
recording of a
channel unless
you
select it
at the
cable
box.
Note
to CABLE
System
Installer
This reminder
is provided to call
the
CABLE
(Cable TV) System
Installers
attention
to Article
820-40
of
the NEC
that provides
guidelines for
proper grounding
and,
in particular,
specifies that
the
cable
ground
shall
be
connected
to the grounding system
of the building,
as close
to the
point
of cable entry
as
practical.
Combination VCR
Cable
Box
With a DSS
Receiver
You can;
record or view
any
channel
including scrambled
channels.
NOTE: Channel
selection
must
be
made
at the
DSS
Receiver.
You
cannot;
view a channel
other
than
the one selected for
any
type
of recording.
do a
Timer
recording of a
channel unless
you
select it
at the
DSS
box.
NOTE: The
DSS
receiver
must
be
turned off to view programs
from
a
cable
box or antenna.
See the DSS manual
for details.
DSS"
is
registered
trademark
of
DIRECTV,
INC.,
a
unit of
GM
Hughed
Electronics.
©Comb
ination VCR
1*1
DSS
Receiver
