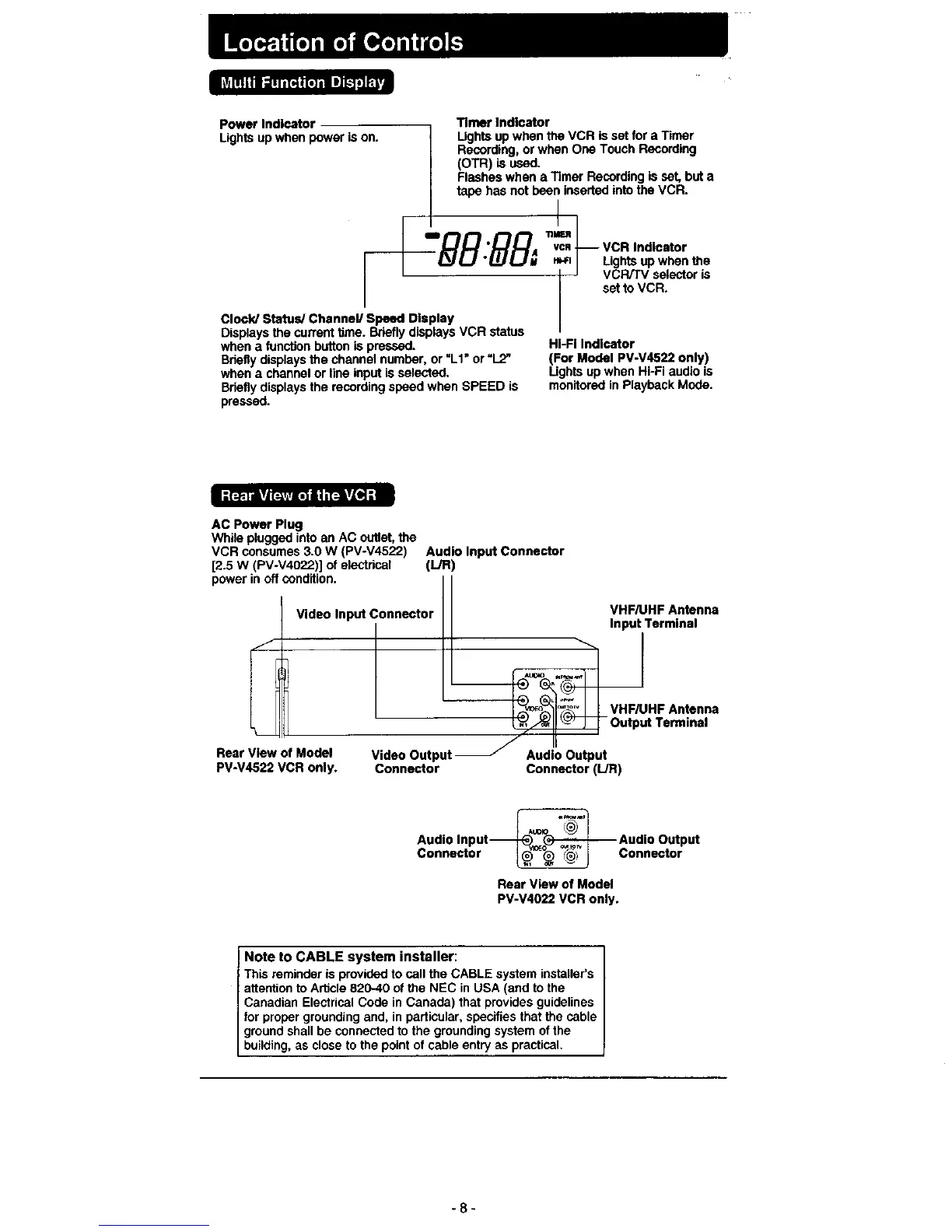

Power Indicator
Lightsupwhen power ison.
Clock/Status/Channel/Speed Display
Displays the current hme. Briefly displays VCR status
when a function button is pressed.
Bdefly displays the channel number, or =LI" or "L2"
when a channel or line input is selected.
Bdefly displays the recording speed when SPEED is
pressed.
Timer Indicator
Lights up when the VCR is set for a Timer
Recording, or when One Touch Recording
(OTR) is used.
Flashes when a Timer Recording is set, but a
tape has not been inserted into the VCR.
oL!
v_ -_ VCR Indloator
m-_| Lights up when the
VCR/TV selector is
set to VCR.
Hi-FI Indicator
(For Model PV-V4522 only)
Ughts up when Hi-Fi audio is
monitored in Playback Mode.
AC Power Plug
While plugged into an AC outlet, the
VCR consumes 3.0 W (PV-V4522)
[2.5 W (PV-V4022)] of electrical
power in off condition.
Audio Input Connector
(L/R)
Video Input Connector
Rear View of Model
PV-V4522 VCR only.
VHF/UHF Antenna
Input Terminal
_,_ VHFiUHF Antenna
_ Output Terminal
Video Output _ A_ll_p_
Connector Connector (L/R)
u_,cN_t
_uoJo i_
Audio Input_°_Audlo Output
Connector _w_ _j Connector
Rear View of Model
PV-V4022 VCR only.
I Note to CABLE installer:
system
This reminder is provided to call the CABLE system iostaller's
attention to Article 820-40 of the NEC in USA (and to the
Canadian Electrical Code in Canada) that provides guidelines
for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the
building, as close to the point of cable entry as practical.
-8-
