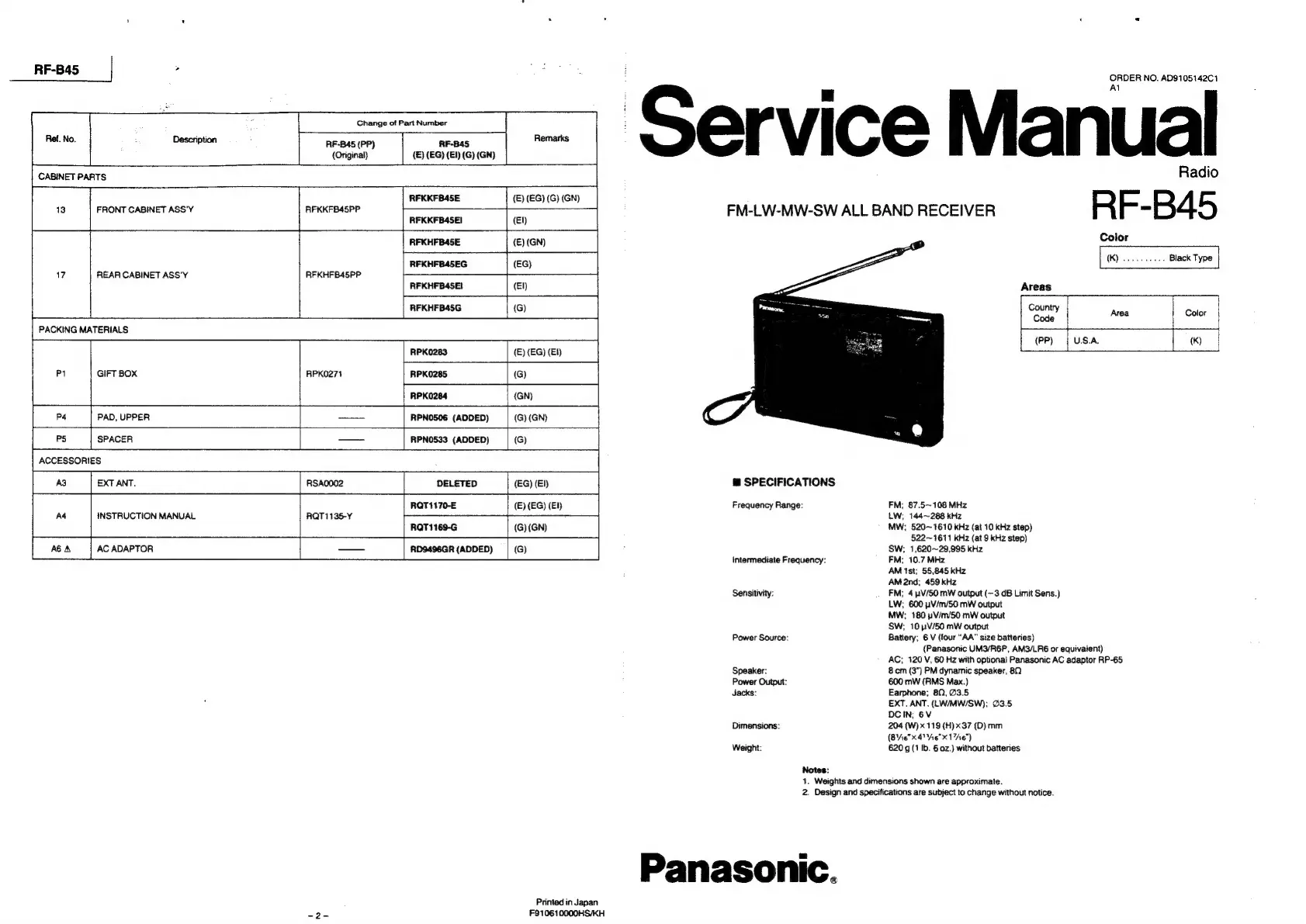

Panasonic RF-B45 Service Manual

ORDER NO. AD9105142Ci
=
; RF-B45 (PP) RF-B45
(Original) (E) (EG) (El) (G) (GN)
CABINET P,
ET
PARTS
__}
RFKKFB45E (E) (EG) (G) (GN)
13 | FRONTCABINET ASS'Y RFKKFB4SPP FM-LW-MW-SW ALL BAND RECEIVER -
RFKKFB4SEI (El)
—_ fancreee [@am |
RFKHFB45E
(E)
(GN)
Color
Kyasenaetans lack T
RFKHFB4SEG (EG) (k) Black Type
17 REAR CABINET ASS'Y RFKHFB45PP
RFKHFB4SEI (El) Areas
PACKING MATERIALS
RPKO283 (E) (EG) (El)
P41 GIFT BOX RPK0271 RPK0285 (G)
P4 PAD, UPPER —_— RPNO506 (ADDED) (G) (GN)
PS SPACER — RPNO533 (ADDED) (G)
ACCESSORIES
A3 EXT ANT. RSA0002 DELETED (EG) (El) @ SPECIFICATIONS
RQT1170-E (E) (EG) (El) Frequency Range: FM; 87.5~108 MHz
A4 INSTRUCTION MANUAL RQT1135-Y LW; 144~288 kHz
RQT1169-G (G) (GN) MW; 520~1610 kHz (at 10 kHz step)
522~1611 kHz (at 9 kHz step)
AGA AC ADAPTOR — RD9496GR(ADDED) | (G) ; SW; 1,620~29,995 kHz
Intermediate Frequency: FM; 10.7 MHz
AM ist; 55,845 kHz
AM 2nd, 459 kHz
Sensitivity: FM; 4 yV/50 mW output (—3 dB Limit Sens.)
LW; 600 pV/m/50 mW output
MW; 180 pV/m/50 mW output
SW; 10 pV/50 mW output
Power Source: Battery; 6 V (four “AA” size batteries)
{Panasonic UM3/R6P, AM3/LR6 or equivalent)
AC; 120 V, 60 Hz with optional Panasonic AC adaptor RP-65
Speaker: 8 cm (3”) PM dynamic speaker, 8Q.
Power Output: 600 mW (RMS Max.)
Jacks: Earphone; 80, 23.5
EXT. ANT. (LW/MW/SW); 23.5
DCIN; 6V
Dimensions: 204 (W) x 119 (H) x37 (D) mm
(BV6"x 4 Vie" x 17A6")
Weight: 620 g (1 Ib. 6 oz.} without battenes
Notes:
1. Weights and dimensions shown are approximate.
2. Design and specifications are subject to change without notice.
Panasonic.
Printed in Japan
-2- F910610000HS/KH
