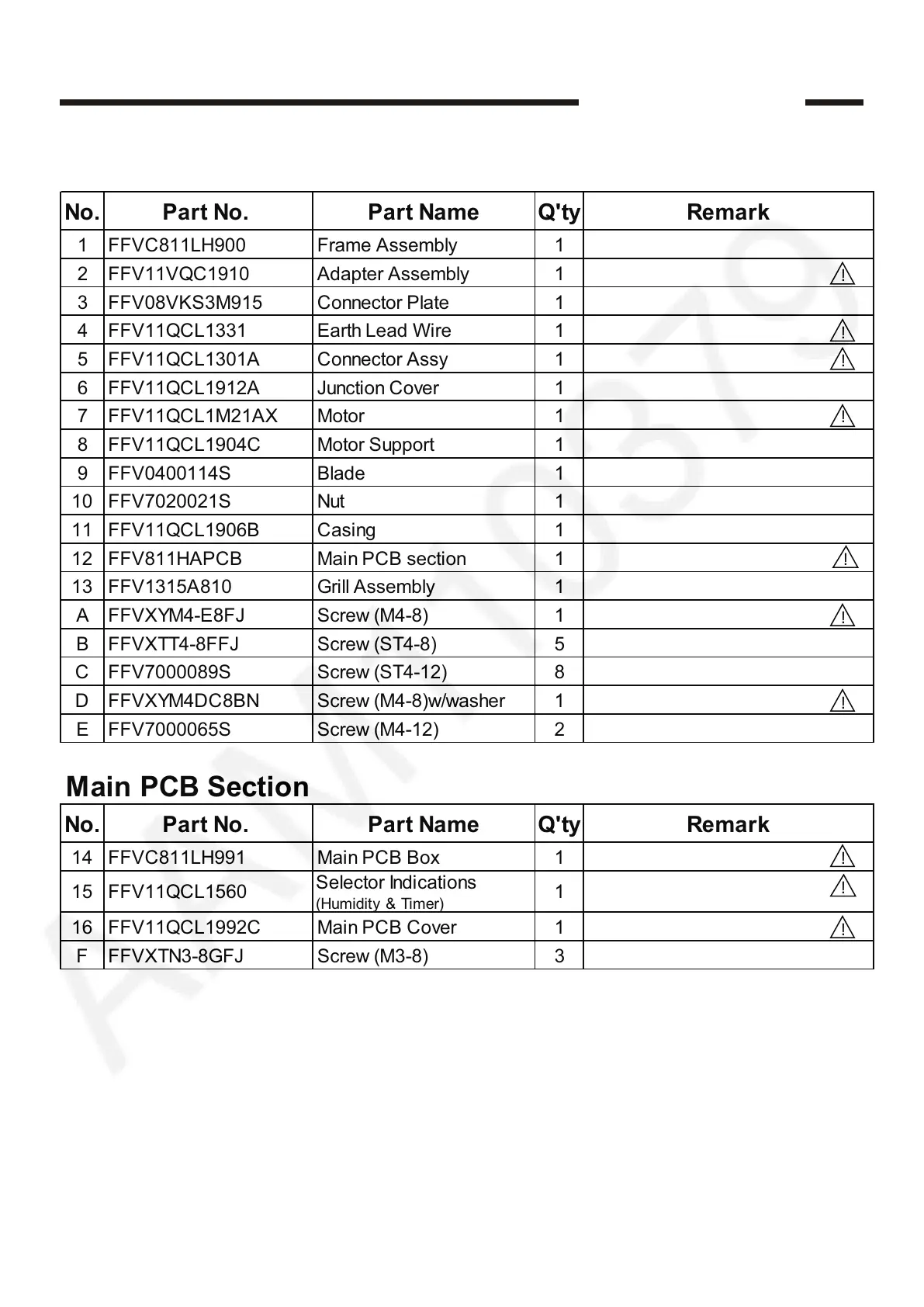

4. Parts List
RG-C811HA
Main Body Section
No.Part No. Part NameQ'tyRemark
1FFVC811LH900Frame Assembly1
2FFV11VQC1910Adapter Assembly1
3FFV08VKS3M915Connector Plate1
4FFV11QCL1331Earth Lead Wire1
5FFV11QCL1301AConnector Assy1
6FFV11QCL1912AJunction Cover 1
7FFV11QCL1M21AXMotor1
8FFV11QCL1904CMotor Support1
9FFV0400114SBlade1
10FFV7020021SNut1
11FFV11QCL1906BCasing1
12FFV811HAPCB Main PCB section1
13FFV1315A810Grill Assembly1
AFFVXYM4-E8FJ Screw (M4-8)1
BFFVXTT4-8FFJScrew (ST4-8)5
CFFV7000089SScrew (ST4-12)8
DFFVXYM4DC8BNScrew (M4-8)w/washer1
EFFV7000065SScrew (M4-12)2
Main PCB Section
No.Part No. Part NameQ'tyRemark
14FFVC811LH991 Main PCB Box1
15FFV11QCL1560
Selector Indications
(Humidity & Timer)
1
16FFV11QCL1992CMain PCB Cover1
FFFVXTN3-8GFJScrew (M3-8)3
!
!
!
!
!
!
!
!
!
!
