VRF SYSTEMS Indoor Unit
2. Detailed Settings Function
5
When setting the flap for each air outlet individually according to the room condition. (from Operating Instructions)

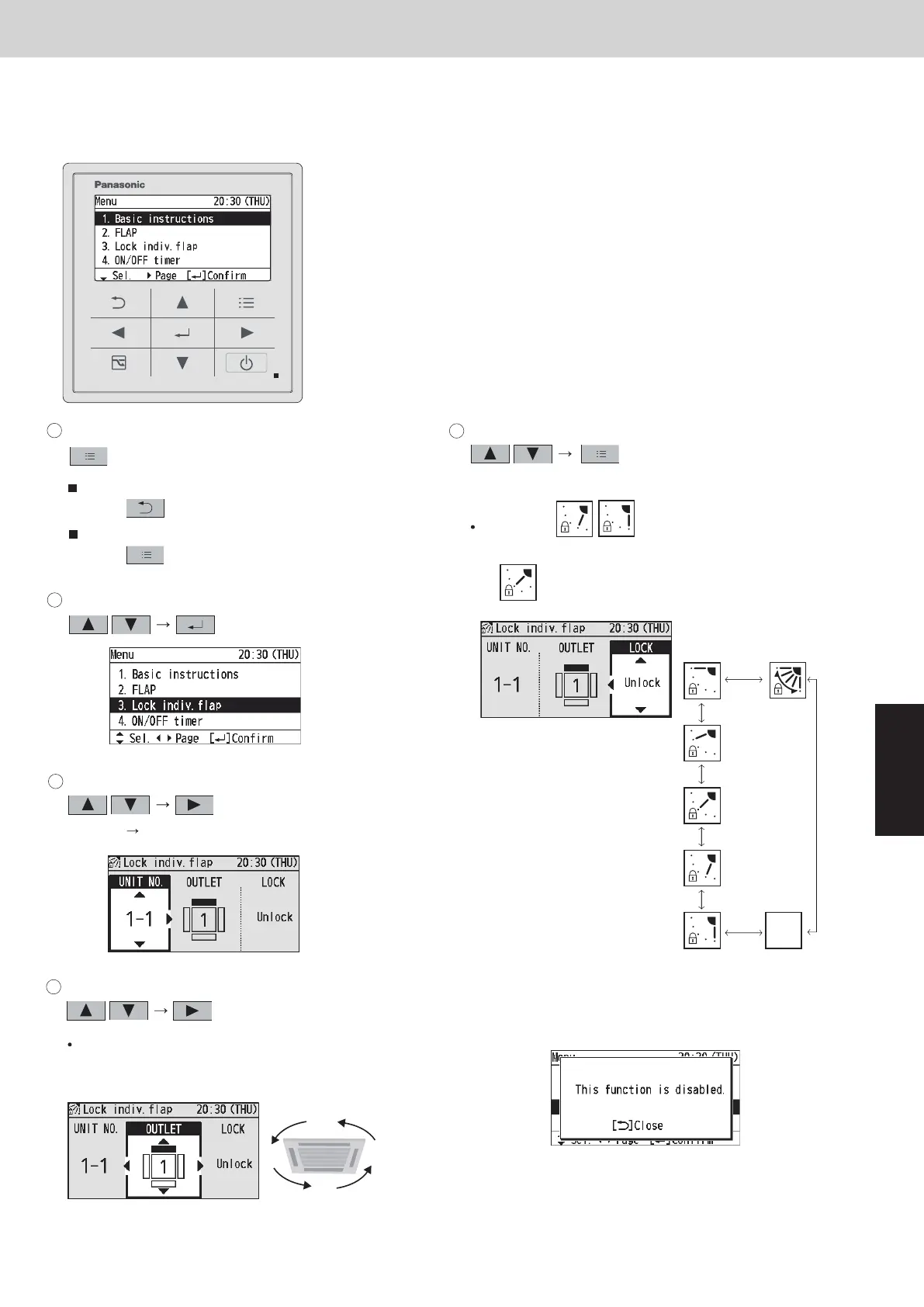

<Procedure of CZ-RTC3 / CZ-RTC5A>
Display the menu screen.
To return to the previous screen
Press .
To return to the top screen
Press 2 times.
Select “3. Lock indiv. flap”
Select the indoor unit to set.
e.g. 1-1
1-2 to 1-8
Select the air outlet.
The air outlet No. changes according to
the installation direction. Check by actual
operation.
1
2
3
4
Select the flap direction.
(Press 2 times to finish.)
Although is also displayed in
Cool and Dry mode, the actual direction
is .
* For types other than the 4-Way cassette type,
the following display appears and this function
cannot be used.
Swing
Unlock
1
2
3
4
5
