ENGLISH
Field Supply Accessories
No. Part Model Specifi cation Maker
i
2-way valve kit
*Cooling model
Electromotoric Actuator SFA21/18 AC230V Siemens
2-port Valve VVI46/25 - Siemens
ii
3-way valve kit
Electromotoric Actuator SFA21/18 AC230V Siemens
3-port Valve VVI46/25 - Siemens
iii
Room thermostat
Wired PAW-A2W-RTWIRED
AC230V -
Wireless PAW-A2W-RTWIRELESS
iv Mixing valve - 167032 AC230V Caleffi
v
Pump - Yonos 25/6 AC230V Wilo
vi Buffer tank sensor - PAW-A2W-TSBU - -
vii
Outdoor sensor - PAW-A2W-TSOD - -
viii Zone water sensor - PAW-A2W-TSHC - -
ix Zone room sensor - PAW-A2W-TSRT - -
x Solar sensor - PAW-A2W-TSSO - -
 It is recommended to purchase the fi eld supply accessories listed in above table.

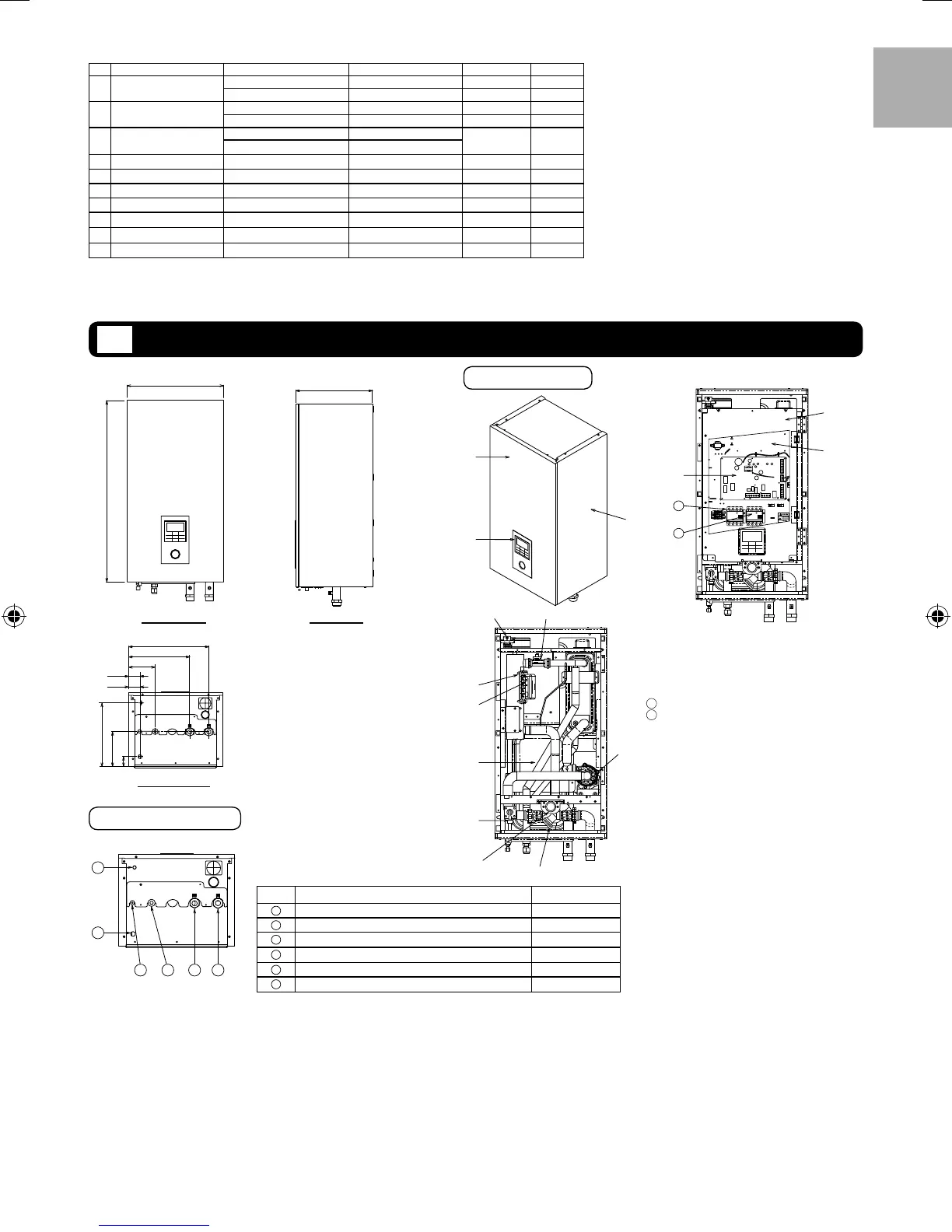

Pipe Position Diagram
Main Components
892
500
340
427
326.5
141.5
58.5
62
53
153
285
FRONT VIEW
BOTTOM VIEW
SIDE VIEW
a b c d
f
e
1
Cabinet front plate
2
Cabinet side plate (2 pieces)
3
Remote controller
4
PCB
5-1
3 Phase RCCB/ELCB (Main Power)
5-2
Single Phase RCCB/ELCB (Booster Heater)
for S*C09*3E8
3 Phase RCCB/ELCB for S*C12*9E8,
S*C16*9E8
6
Control board cover
7
Control board
8
Flow sensor
9
Air purge valve
0
Backup heater
a
Overload protector (4 pieces)
b
Expansion vessel
c
Pressure relief valve
d
Water pressure gauge
e
Water fi lter
f
Water pump
1
2
3
Letter Pipe Description Connection Size
a
Refrigerant liquid 5/8-18UNF
b
Refrigerant gas 7/8-14UNF
c
Water outlet
R 1¼"
d
Water inlet
R 1¼"
e
Drain water hole -
f
Pressure relief valve drainage
3/8"
DIMENSION DIAGRAM
1
4
7
6
5-1
5-2
a
b
0
9
8
c
d
e
f
