Slide 37
Judgment of the Panel SOS Signal for TC-P**S60
5.SOS Detect Circuit Explanation (4)
TC-P**S60 Series (All models)

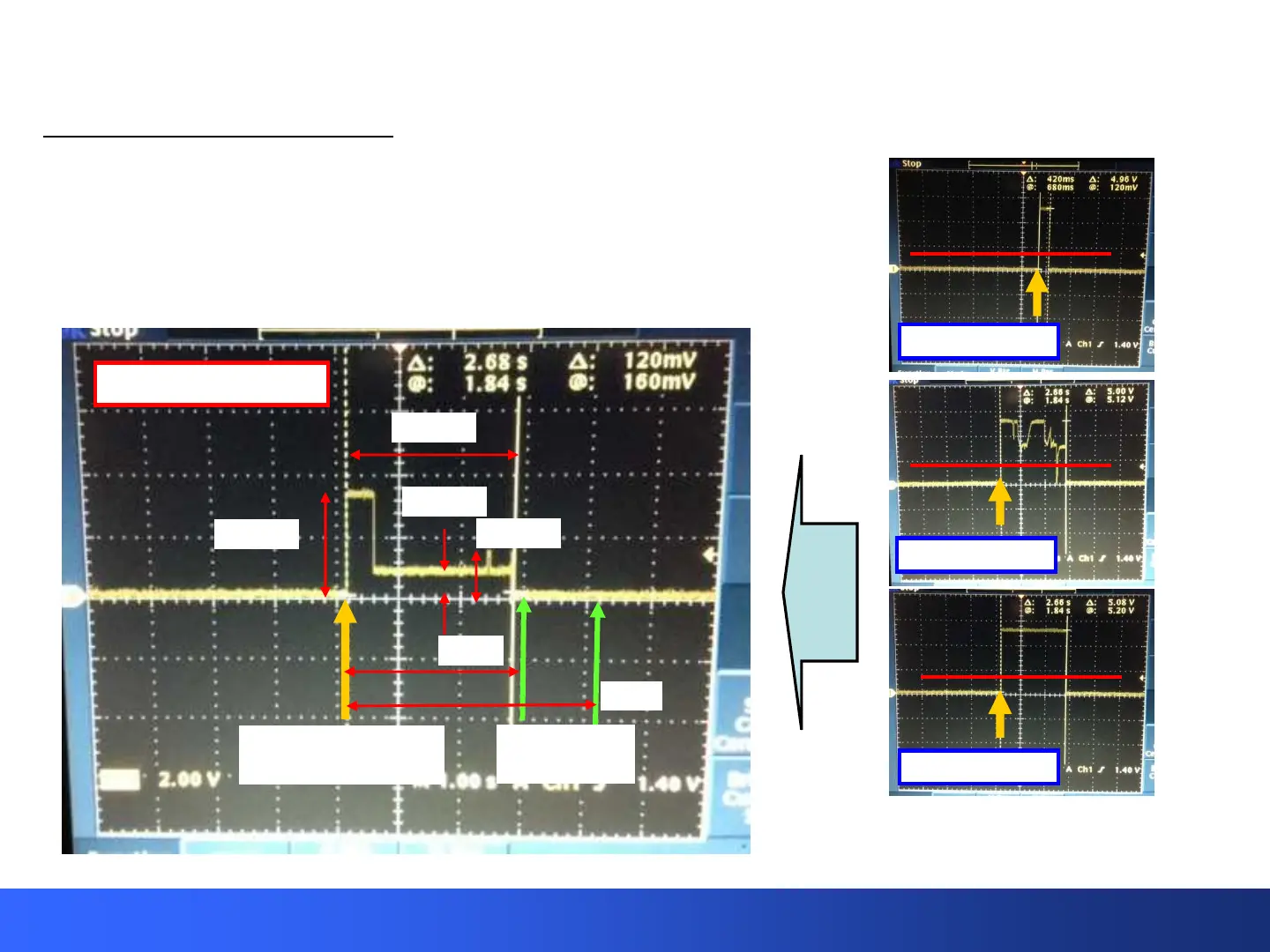

These are illustrations taking from a normally working Plasma TV.
IC8000 checks the panel SOS signal for abnormalities at 2 predetermined
times. (2.8s and 3.8s after the TV is turned on.)
IC8000 ignores the first 2.7 seconds period of the panel SOS signal, which
starts after the TV is turned on (Starting point). Judgments begin at 2.8s
and again at 3.8s after the starting point.
Panel SOS
SOS7_SC2
SOS8_SS
SOS6_SC1
IC8000
checking
SOS_DCC: 0V
FFC_OFF_DET:0V
3.3V
0.8V
2.68s
1.4V
Start time point
(Power ON)
2.8s
3.8s
2V
2V
2V
To Next Page
