Slide 38
Judgment of the Panel SOS Signal for TC-P**ST60
5.SOS Detect Circuit Explanation (5)
TC-P**ST60 Series (All models)

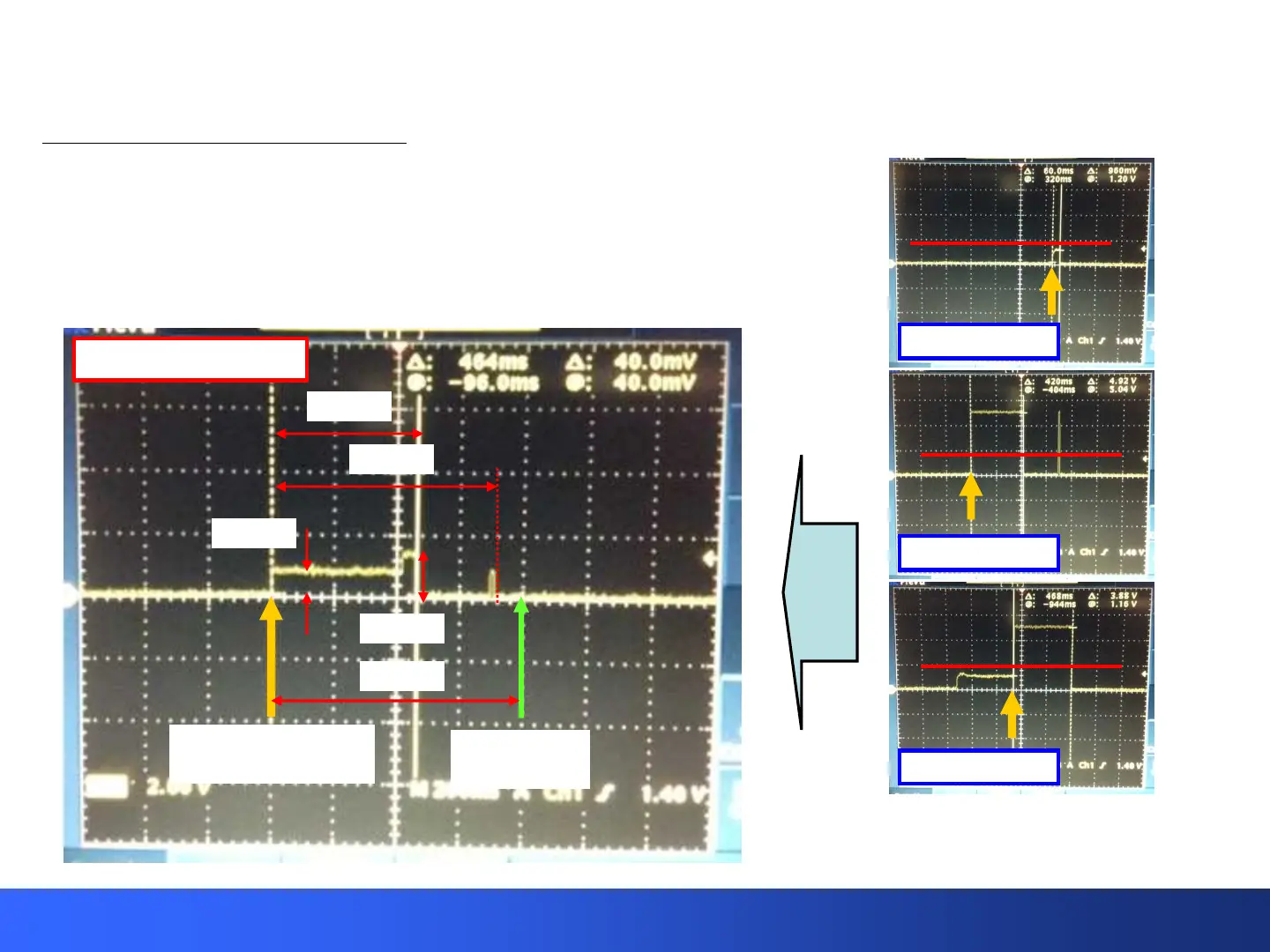

These are illustrations taking from a normally working Plasma TV.
IC8000 checks the panel SOS signal for abnormalities at exactly 800ms
after the TV is turned on.)
IC8000 ignores the first 720ms period of the panel SOS signal, which starts
after the TV is turned on (Starting point). Judgment begin at 800ms and
after the starting point.
Panel SOS
IC8000
checking
SOS_DCC: 0V
FFC_OFF_DET:0V
0.8V
464ms
SOS7_SC2
SOS8_SS
SOS6_SC1
1.4V
720ms
Start time point
(Power ON)
800ms
2V
2V
2V
To Next Page
