Slide 40
These conditions can cause the TV to shutdown and the power LED to blink 6 times
5.SOS Detect Circuit Explanation (7)
1. SC board defect
2. A board defect
3. Wrong diagnostic by A board

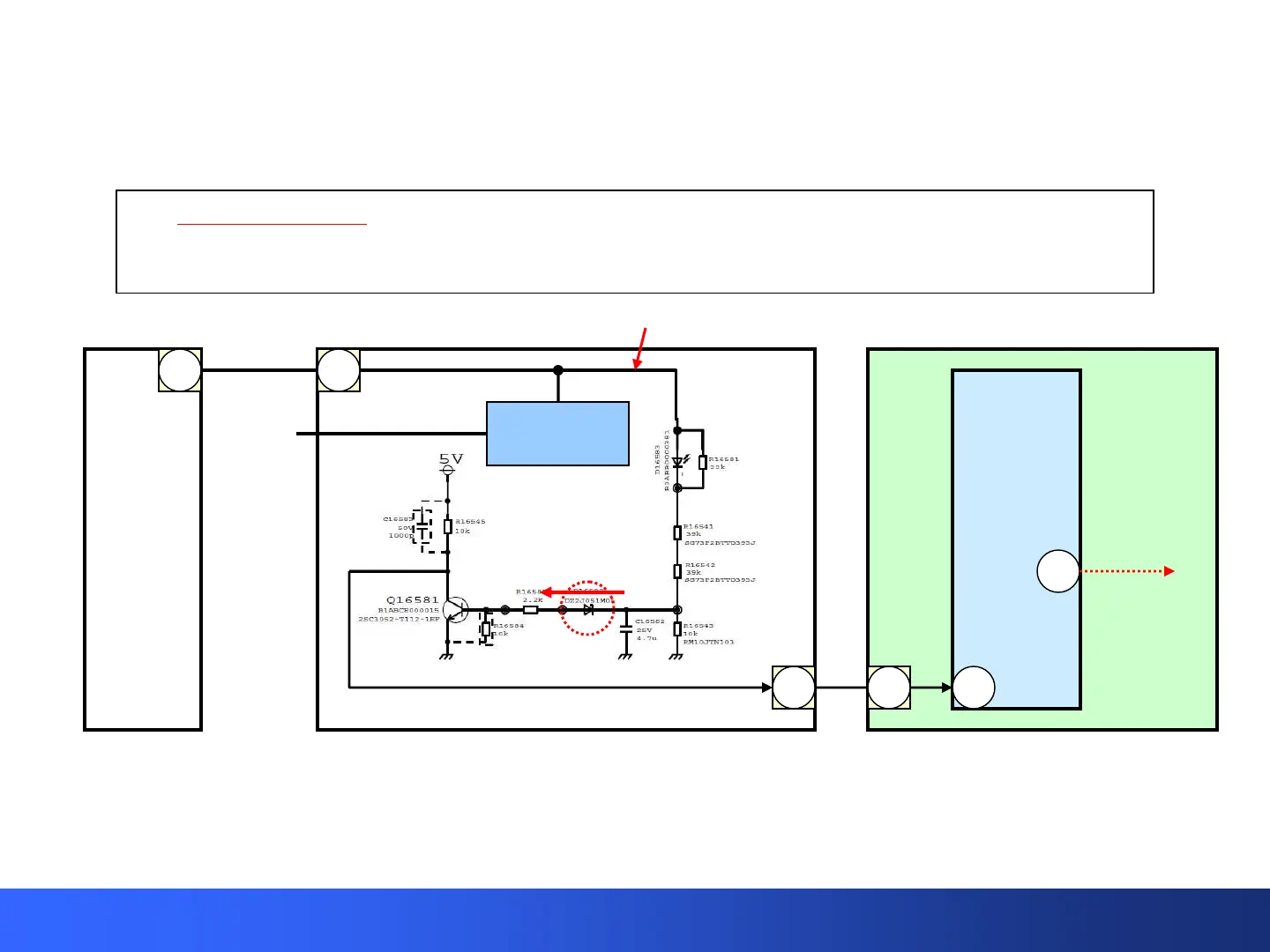

The energy recovery (MID) voltage is monitored in the SC(SN) board.
If the MID voltage is detected abnormal (under 50V), the circuit generates the SOS6_SC1 signal
causing the unit shutdown and the power LED to blink 6 times.
6 Blinks Error Code Circuit Explanation
IC5000
ASIC
A
To IC8000
A/D Input
SC(SN)
A20
28 3 9
SOS_PRIO3
12
Panel_SOS
TC-P42/50S60
SOS6_SC1
SC20
(SN20)
VFG Circuit
VFG
PSS
MID
3,4
P2
3,4
SC2(SN2)
Over 50V
50V<Normal Range
To Next Page
