4. Replacement Parts List
Notes :
- Important safety notice :
When replacing any of these components, be sure to use only
manufacturer’s specified parts shown in the parts list.
- [M] markings in the Remarks columns indicates parts supplied by
PAVCSG.
Ref. No. Part No. Part Name & Description Remarks

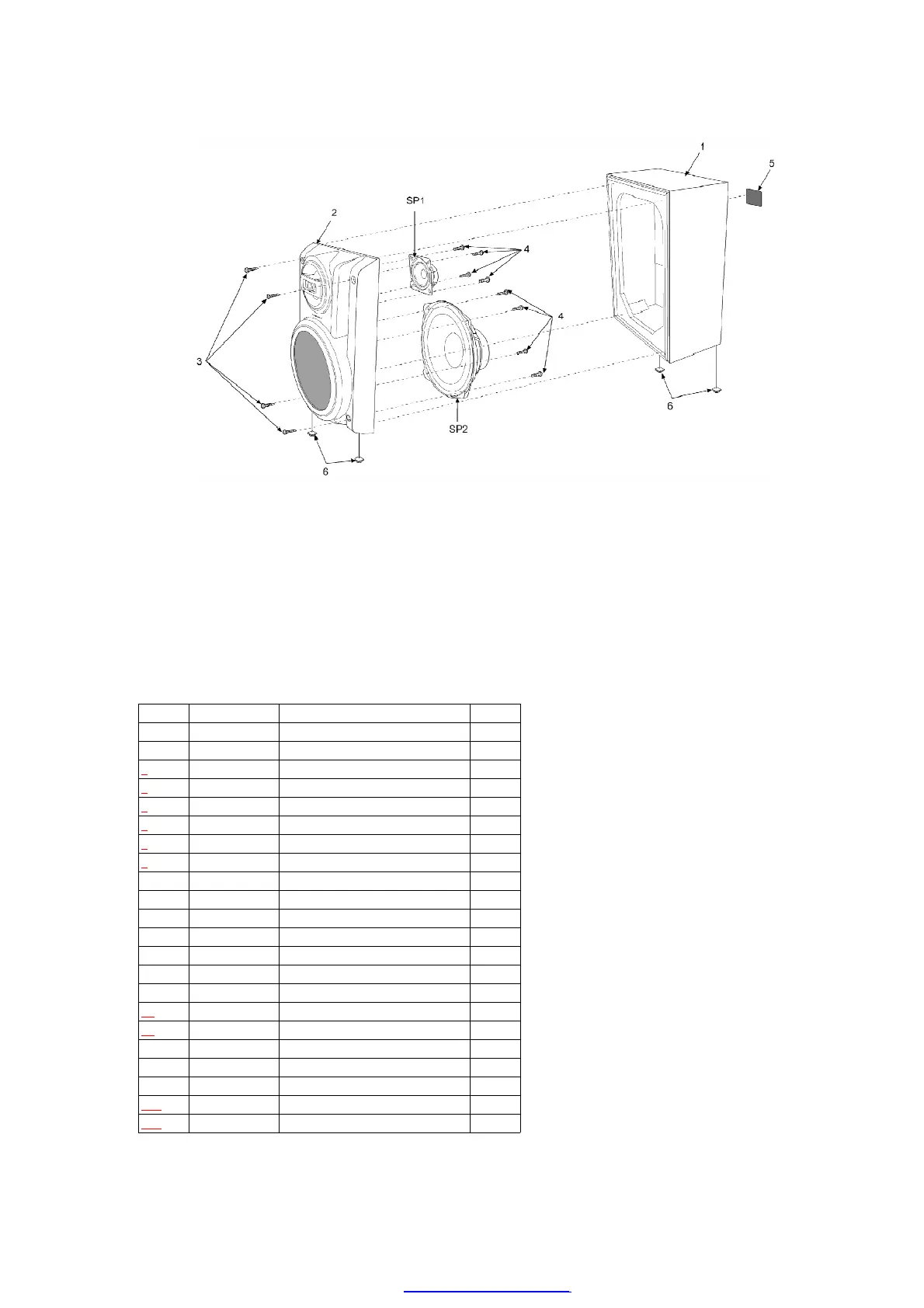

CABINET AND CHASSIS
1 RYKX0297-S SPK CABINET ASS’Y [M]
2 RYBX0074-S FRONT PANEL ASS’Y [M]
3 XTB4+16AFZ SCREW [M]
4 XTB4+10JFJ SCREW [M]
5 RGNX0264A-K SPEC SHEET [M]
6 RKA0072-KJ LEG CUSHION [M]
CAPACITOR
C1 ECEA1HAY2R2 2.2uf 50V [M]
PACKING MATERIALS
P1 RPNX0286 POLYFOAM SET [M]
P2 RPFX0108-2 MIRAMAT BAG [M]
SPEAKERS
SP1 EAST6PH08A6 TWEETER [M]
SP2 EAST16PL41F6 WOOFER [M]
