5 Disc Mechanism Assembly Transfer Alignment – Tray In 4/4

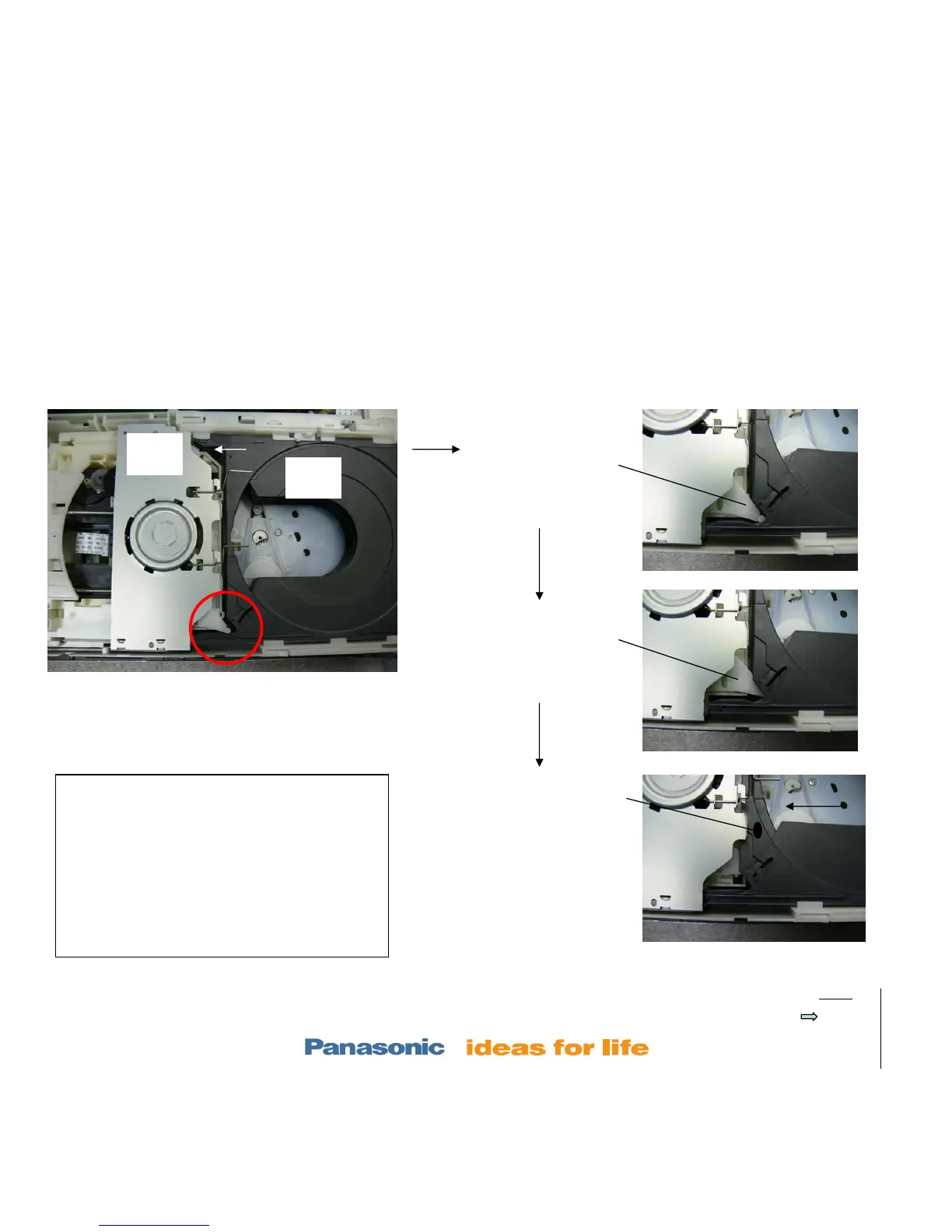

Fig 5 – Traverse assembly elevatored
up to tray level. Note position of #333
tray load lever for elevator operation.
Fig 6 – Traverse
motor moves #333
lever to pull tray 1 in.
Fig 7 - #333 lever
slips under tray 1.
Fig 8 - #333 lever pulls tray
1 into gear #331 on the
other side (not shown).
Gear #331 grabs the tray
teeth and pulls the tray into
the laser assembly.
rear
Lever
#333
Laser
area
Stock
area
III. Trays moved from the middle stock area
must be transferred to the laser area.
• Tray transfer is made after the traverse
assembly elevators to the desired tray level.
• The traverse motor uses arms to pull the tray
into gear #331. Details in slide 4/4, above.
• SW4 opens (fp 8251) to tell the micro the tray is
in.
