Panasonic SA-PT660 - 5 Disc Mechanism: Laser Replacement (Part 2); Removing Laser Assembly from Bottom

Slide # 26
Models:
SA-PT660
SA-PT760
SA-PT960
SA-PT1060
SH-FX67, 85
Outline
Wireless
Mech
Pwr Supply
Protection
Audio
5 Disc Mechanism Laser Replacement 2/5 – Removed from play position
D. Removing the Laser assembly
from the bottom in play position:

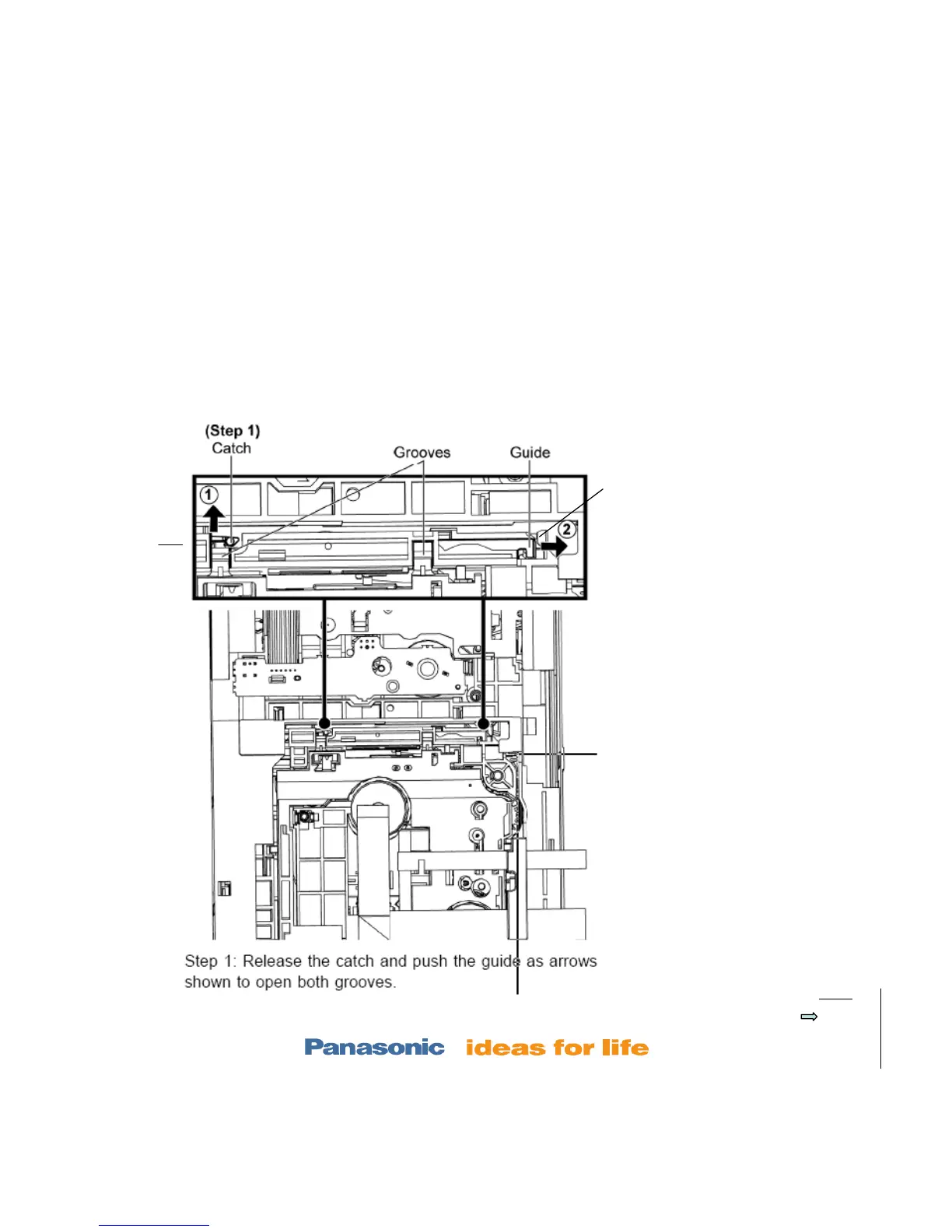

1. Locate the bottom of #335 TRV
slide plate and move the catch
up as shown.
2. Slide #336 sub slide plate to the
right as shown until the grooves
in the slot are revealed
(permitting the traverse
assembly to lift out).
3.
Go to the next page.
back
front
# 336
# 335
Fig 15
