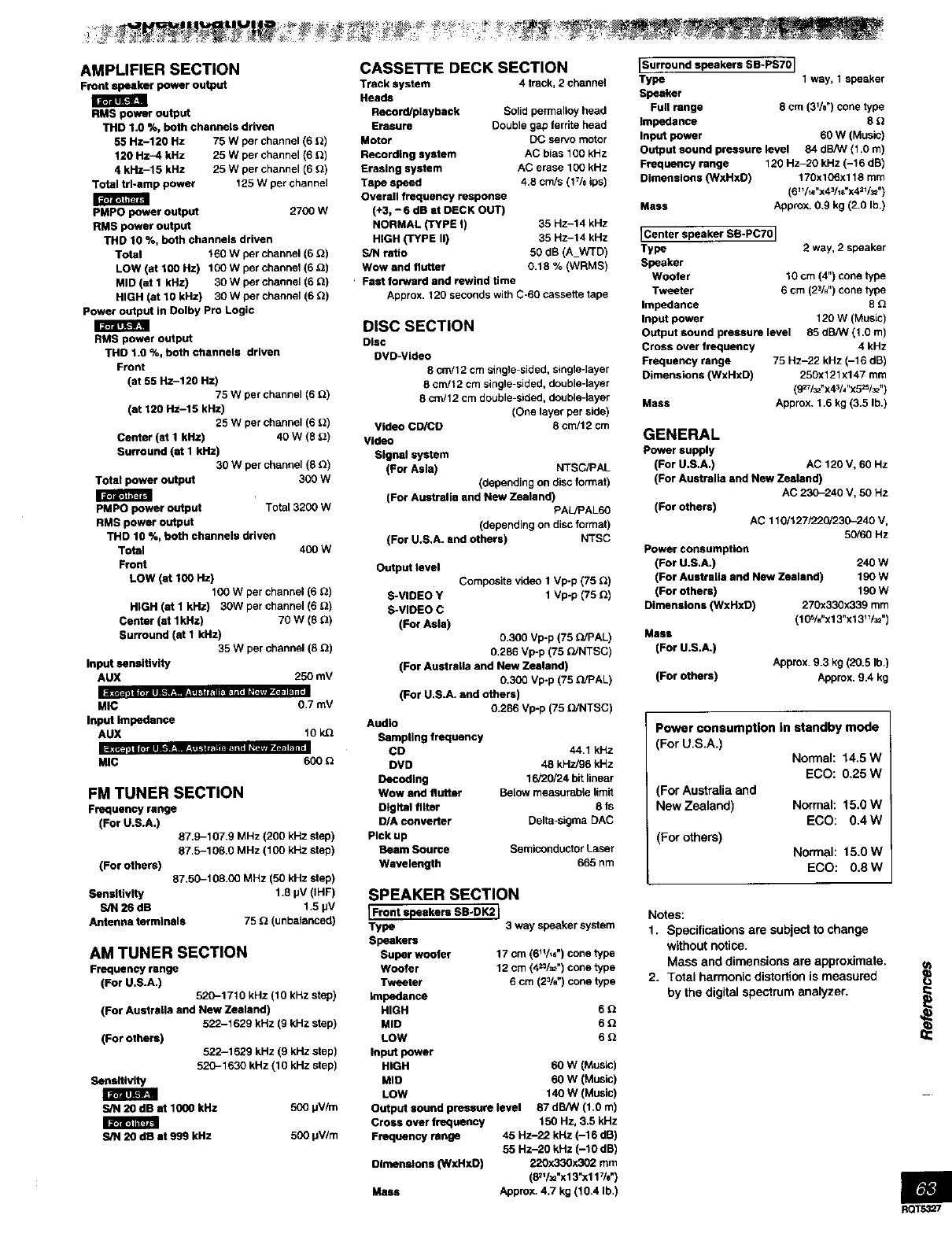

AMPLIFIER SECTION
Front speaker power output
RMS power output
THD 1.0 %, both channels driven
55 Hz-120 Hz 75 W per channel (6 fz)
120 Hz_ kHz 25 W per channel (6 _)
4 kHz-15 kHz 25 W per channel (6 Q)
Total trl-amp power 125 W per channel
PMPO power output 2700 W
RMS power output
THD 10 %, both channels driven
Total 160 W per channel (6 _)
LOW (at 100 Hz) 100 W per channel (6 _)
MID (at I kHz) 30 W per channel (6 £z)
HIGH (at 10 kHz) 30 W per channel (6 Q)
Power output in Dolby Pro Logic
RMS power output
THD 1.0 %, both channels driven
Front
(at 55 Hz-120 Hz)
75 W per channel (6 £z)
(at 120 HZ-15 kHz)
25 W per channel (6 _)
Center (at I kHz) 40 W (8 _)
Surround (at I kHz)
30 W per channel (8 _)
Total power output 300 W
I;F_['dI_I='RF_I
PMPO power output Total 3200 W
RMS power output
THD 10 %, both channels driven
Total 400 W
Front
LOW (at 100 Hz)
100 W per channel (6 _)
HIGH (at 1 kHz) 30W per channel (6 _)
Center (at lkHz) 70 W (8 _)
Surround (at 1 kHz)
35 W per channel (8 _)
Input sensitivity
AUX 250 mV
MIC 0.7 mV
Input Impedance
AUX 10 k.Q
MIC 600
FM TUNER SECTION
Frequency range
(For U.S.A.)
87.9-107.9 MHz (200 kHz step)
87,5-108,0 MHz (100 kHz step)
(For others)
87.50-108.00 MHz (50 kHz step)
Sensitivity 1.8 pV (IHF)
SIN 26 dB 1.5 pV
Antenna terminals 75 Q (unbalanced)
AM TUNER SECTION
Frequency range
(For U.S.A.)
529-1710 kHz (10 kHz step)
(For Australia and New Zealand)
522-1629 kHz (9 kHz step)
(For others)
522-1629 kHz (9 kHz step)
520-1630 kHz (10 kHz step)
Sensitivity
[a'_l.eJK] f_l
S/N 20 dB at 1000 kHz 500 pV/m
S/N 20 dB at 999 kHz 500 pV/m
CASSETTE DECK SECTION
Track system 4 track, 2 channel
Reads
Record/playback Solid permalloy head
Erasure Double gap ferrite head
Motor DC servo motor
Recording system AC bias 100 kHz
Erasing system AC erase 100 kHz
Tape speed 4.8 cm/s (17/8 ips)
Overall frequency response
(+3, - 6 dB at DECK OUT)
NORMAL (TYPE I) 35 Hz-14 kHz
HIGH (TYPE II) 35 Hz-14 kHz
S/N ratio 50 dB (A_WTD)
Wow and flutter 0.18 % (WRMS)
' Fast forward and rewind time
Approx. 120 seconds with C-60 cassette tape
DISC SECTION
Disc
DVD-Video
8 cm/12 cm single-sided, single-layer
8 cm/12 cm single-sided, double-layer
8 cm/12 cm double-sided, double-layer
(One layer per side)
Video CD/CD 8 cm/12 cm
Video
Signal system
(For Asia) NTSC/PAL
(depending on disc format)
(For Australia and New Zealand)
PAL/PAL60
(depending on disc format)
(For U.S,A. and others) NTSC
Output level
Composite video 1 Vp-p (75 Q)
S-VIDEO Y 1 Vp-p (75 _)
S-VIDEO C
(For Asia)
0,300 Vp-p (75 P/PAL)
0.286 Vp-p (75 P/NTSC)
(For Australia and New Zealand)
0.300 Vp-p (75 P/PAL)
(For U,S.A. and others)
0.286 Vp-p (75 P/NTSC)
Audio
Sampling frequency
CD 44.1 kHz
DVD 48 kHz/g6 kHz
Decoding 16/20/24 bit linear
Wow and flutter BeLow measurable limit
DlgltM filter 8 fs
D/A converter Delta-sigma DAC
Pick up
Beam Source Semiconductor Laser
Wavelength 665 nm
SPEAKER SECTION
IFront speakers SB-DK21
Type
Speakers
Super woofer
woofer
Tweeter
Impedance
HIGH
MID
LOW
Input power
HIGH
MID
LOW
Output sound p_,ssure level
Cross over frequency
Frequency range
Dimensions (WxHxD)
Msu
3 way speaker system
17 cm (61V_e") cone type
12 cm (4_/= ") cone type
6 cm (23/0") cone type
6G
6_
6_
60 W (Musk:)
60 W (Music)
140 W (Music)
07 dB/W (1.0 m)
150 Hz, 3.5 kHz
45 Hz-22 kHz (-16 de)
55 Hz-20 kHz (-10 dB)
220x330x302 mm
(82V="x13"xl 1_/e")
Approx. 4.7 kg (10.4 Ib,)
ISurround speakers SB-PS70 i
Type 1 way, 1 speaker
Speaker
Full range 8 cm (3Ve") cone type
impedance 8
Input power 60 W (Musk:)
Output sound pressure level 84 dB/W (1.0 m)
Frequency range 120 Hz-20 kHz (-16 dB)
Dimensions 0NxHxD) 170xl 06xl 18 mm
(6_V_"x4_/_"x4_V=z")
Mass Approx. 0.9 kg (2.0 lb.)
ICenter speaker SB-PC70 I
Type 2 way, 2 speaker
Speaker
Woofer 10 cm (4") cone type
Tweeter 6 cm (2z/s") cone type
Impedance 8
Input power 120 W (Music)
Output sound pressure level 85 dB/W (1.0 m)
Cross over frequency 4 kHz
Frequency range 75 Hz-22 kHz (-16 dB)
Dimensions (WxHxD) 250xl 21x147 mm
(9_/_"x4_/_"x5_/_ ")
Mass Approx. 1.6 kg (3.5 lb.)
GENERAL
Power supply
(For U.S.A.) AC 120 V, 60 Hz
(For Australia and New Zealand)
AC 230-240 V, 50 Hz
(For others)
AC 110/127/220/230-240 V,
50/60 Hz
Power consumpUon
(For U.S.A.) 240 W
(For Australia and New Zealand) 190 W
(For others) 190 W
Dimensions (WxHxD) 270x330x339 mm
(10_/s,,xl3"x13-/=")
Mass
(For U.S.A.)
Approx. 9.3 kg (20.5 lb.)
(For others) Approx. 9.4 kg
Power consumption in standby mode
(For U.S.A.)
(For Australia and
New Zealand)
(For others)
Normal: 14.5 W
ECO: 0,25 W
Normal: 15.0 W
ECO: 0.4 W
Normal: 15,0 W
ECO: 0.8 w
Notes:
1, Specifications are subject to change
without notice.
Mass and dimensions are approximate.
2, Total harmonic distortion is measured
by the digital spectrum analyzer,
RQT5327
