Panasonic SC-EH60

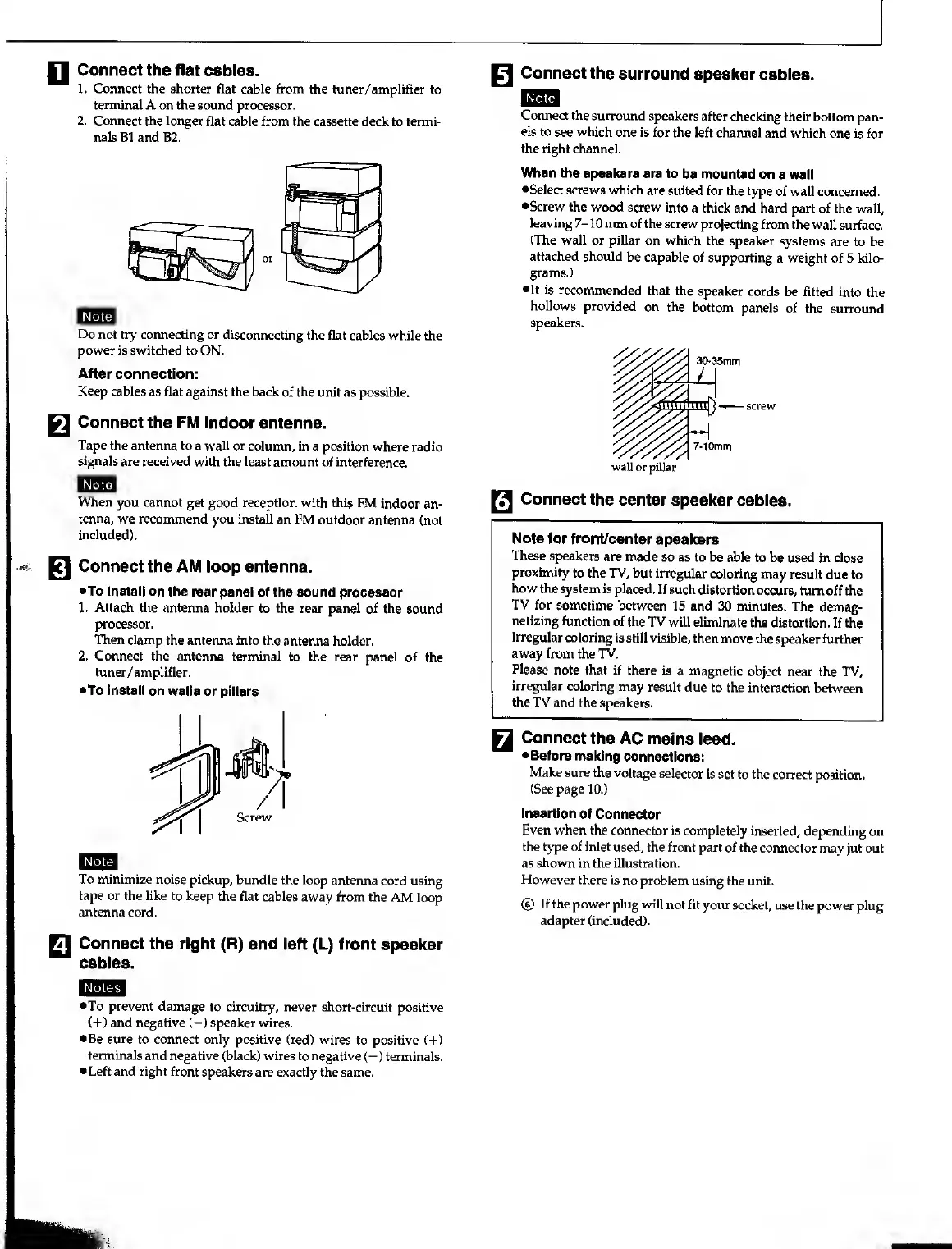

n Connect the flat cables.
1. Connect the shorter flat cable from the tuner/amplifier to
terminal A on the sound processor.
2. Connect the longer flat cable from the cassette deck to termi¬
nals B1 and B2.
or
Note
Do not try connecting or disconnecting the flat cables while the
power is switched to ON.
After connection:
Keep cables as flat against the back of the unit as possible.
Q Connect the FM indoor antenna.
Tape the antenna to a wall or column, in a position where radio
signals are received with the least amount of interference.
Note
When you cannot get good reception with this FM indoor an¬
tenna, we recommend you install an FM outdoor antenna (not
included).
antenna.
•To install on the rear panel of the sound processor
1. Attach the antenna holder to the rear panel of the sound
processor.
Then clamp the antenna into the antenna holder.
2. Connect the antenna terminal to the rear panel of the
tuner/amplifier.
•To install on walls or pillars
A
Screw
Note
To minimize noise pickup, bundle the loop antenna cord using
tape or the like to keep the flat cables away from the AM loop
antenna cord.
FI Connect the right (R) and left (L) front speaker
cables.
Notes
•To prevent damage to circuitry, never short-circuit positive
(+) and negative (-) speaker wires.
•Be sure to connect only positive (red) wires to positive (-I-)
terminals and negative (black) wires to negative (-) terminals.
• Left and right front speakers are exactly the same.
H Connect the surround speaker cables.
Note
Connect the surround speakers after checking their bottom pan¬
els to see which one is for the left channel and which one is for
the right channel.
When the speakers are to be mounted on a wall
•Select screws which are suited for the type of wall concerned.
•Screw the wood screw into a thick and hard part of the wall,
leaving 7-10 mm of the screw projecting from the wall surface.
(The wall or pillar on which the speaker systems are to be
attached should be capable of supporting a weight of 5 kilo¬
grams.)
• It is recommended that the speaker cords be fitted into the
hollows provided on the bottom panels of the surround
speakers.
Connect the center speaker cables.
Note for front/center speakers
These speakers are made so as to be able to be used in close
proximity to the TV, but irregular coloring may result due to
how the system is placed. If such distortion occurs, turn off the
TV for sometime between 15 and 30 minutes. The demag¬
netizing function of the TV will eliminate the distortion. If the
irregular coloring is still visible, then move the speaker further
away from the TV.
Please note that if there is a magnetic object near the TV,
irregular coloring may result due to the interaction between
the TV and the speakers.
Q Connect the AC mains lead.
•Before making connections:
Make sure the voltage selector is set to the correct position.
(See page 10.)
Insertion of Connector
Even when the connector is completely inserted, depending on
the type of inlet used, the front part of the connector may jut out
as shown in the illustration.
However there is no problem using the unit.
® If the power plug will not fit your socket, use the power plug
adapter (included).
