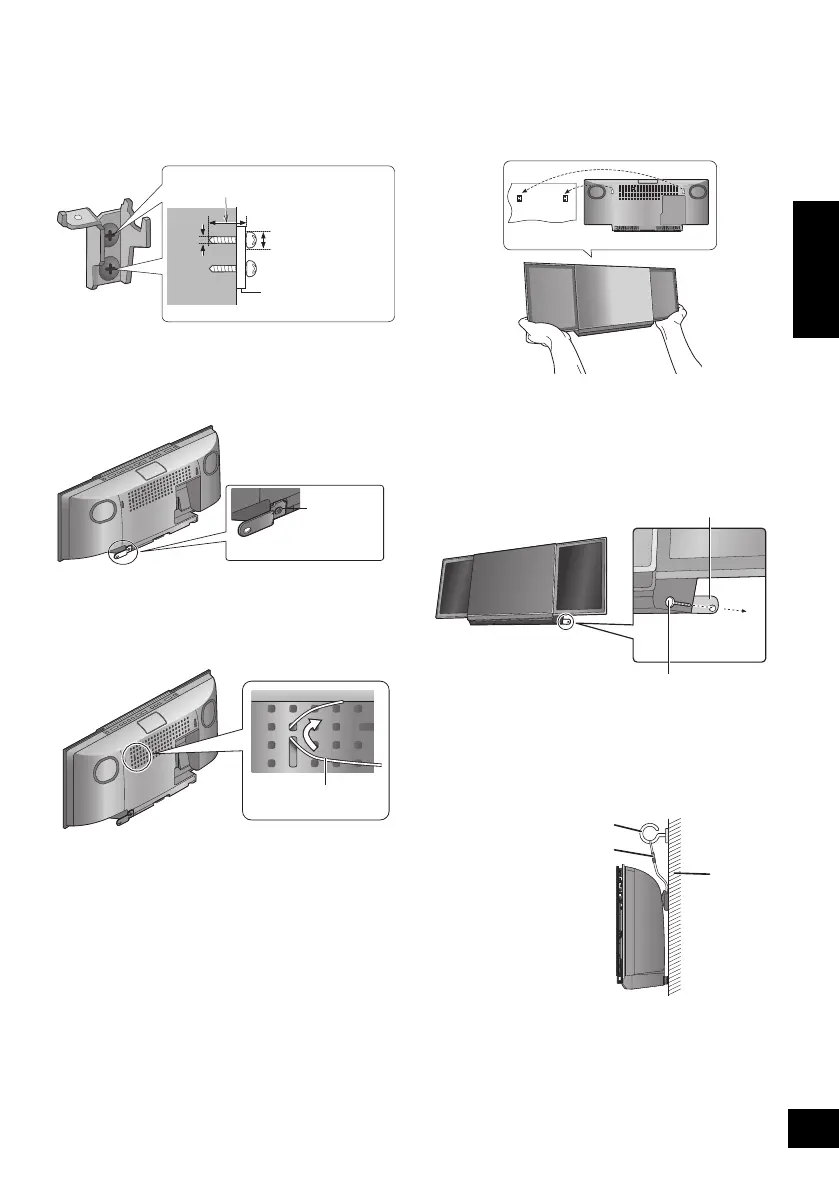

3 Attach the wall mount bracket to the wall with 2
screws (not supplied). (Both sides)
≥ Use a spirit level to ensure both wall mount brackets are
level.
≥ Make sure that the screw used and the wall are strong
enough to support the weight of at least 33 kg (72.8 lbs).
4 Fix the safety holder onto the unit with the
screw (supplied).
{. Screw tightening torque: 50 N0cm (0.4 lbf0ft) to 70
N0cm (0.5 lbf0ft).
5 Attach the fall prevention cord (not supplied) to
this unit.
≥ Use a cord of less than ‰2.0 mm (
5
/64q), which is
capable of supporting over 33 kg (72.8 lbs).
6 Hook the unit securely onto the wall mount
brackets with both hands.
≥ Connect the FM antenna and the AC power supply cord
to the unit before hanging the unit onto the wall. (> 8)
≥ After hanging the unit, release your hand carefully to
confirm the unit sits securely on the wall.
7 Drive the safety holder fixing screw
(not supplied) to secure the safety holder onto
the wall.
≥ Make sure that the screw used and the wall are strong
enough to support the weight of at least 33 kg (72.8 lbs).
8 Attach the fall prevention cord (not supplied) to
the wall.
≥ Make sure that the screw used and the wall are strong
enough to support the weight of at least 33 kg (72.8 lbs).
At least 30 mm (1
3
/16q)
‰7.5 mm (
19
/64q) to
‰9.4 mm (
3
/8q)
4mm
(
5
/32q)
Wall mount bracket
Safety holder fixing screw
(not supplied)
Safety holder
Fixed to the wall
Cord (not supplied)
Screw eye (not supplied)
Wall
