27
(ENG) VQT4U55
ENGLISH

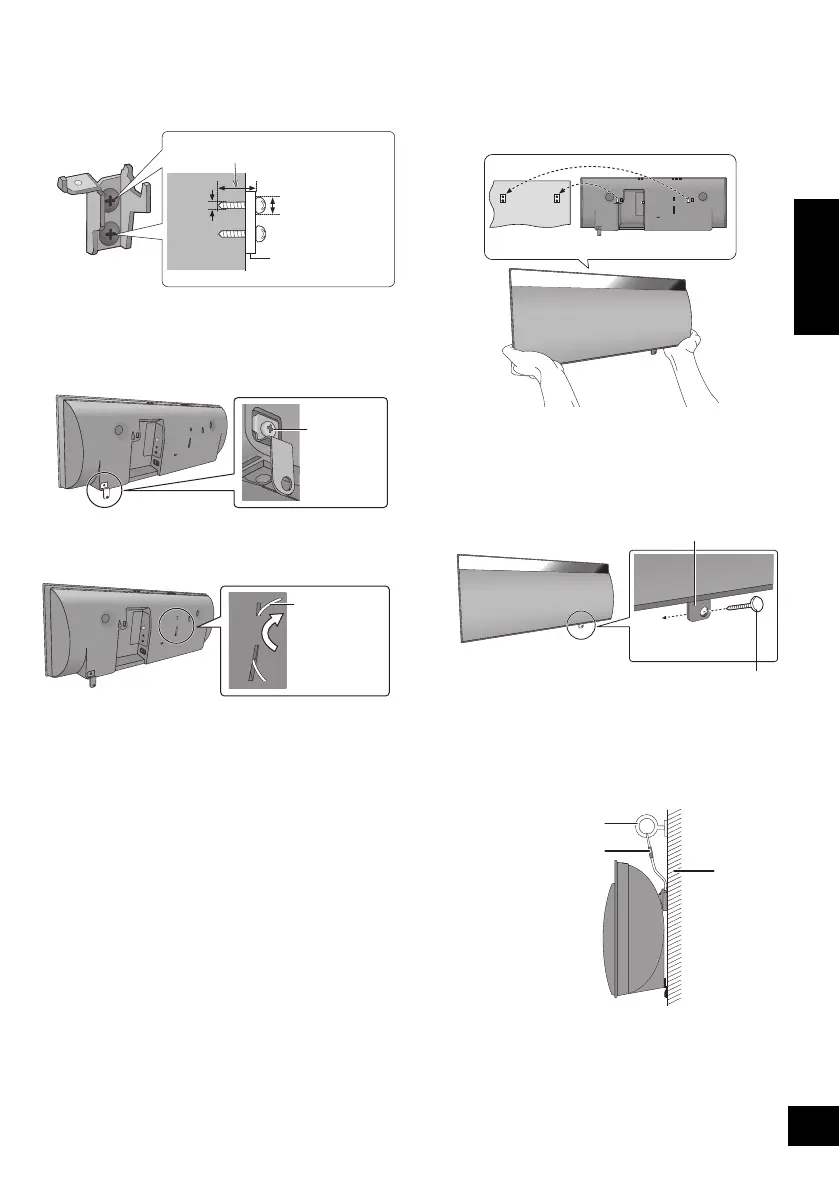

2 Attach the wall mount bracket to the wall with 2
screws (not supplied). (Both sides)
≥ Use a level to ensure both wall mount brackets are
level.
3 Fix the safety holder onto the unit with the
screw (supplied).
{. Screw tightening torque: 50 N0cm (0.4 lbf0ft) to
70 N0cm (0.5 lbf0ft).
4 Attach the fall prevention cord (not supplied) to
this unit.
5 Hook the unit securely onto the wall mount
brackets with both hands.
≥ Connect the FM antenna and the AC power supply cord
to the unit before hanging the unit onto the wall. (l 8)
≥ After hanging the unit, release your hands carefully to
confirm the unit sits securely on the wall.
6 Drive the safety holder fixing screw (not
supplied) to secure the safety holder onto the
wall.
≥ Refer to step 2 for requirements before screwing.
7 Attach the fall prevention cord (not supplied) to
the wall.
≥ Make sure that the slack of the cord is minimal.
At least 30 mm (1
3
/16q)
‰7.5 mm (
19
/64q)
to ‰9.4 mm (
3
/8q)
‰4 mm
(
5
/32q)
Wall mount bracket
Safety holder fixing screw
(not supplied)
Safety holder
Fixed to the wall
Cord (not supplied)
Screw eye
(not supplied)
Wall
