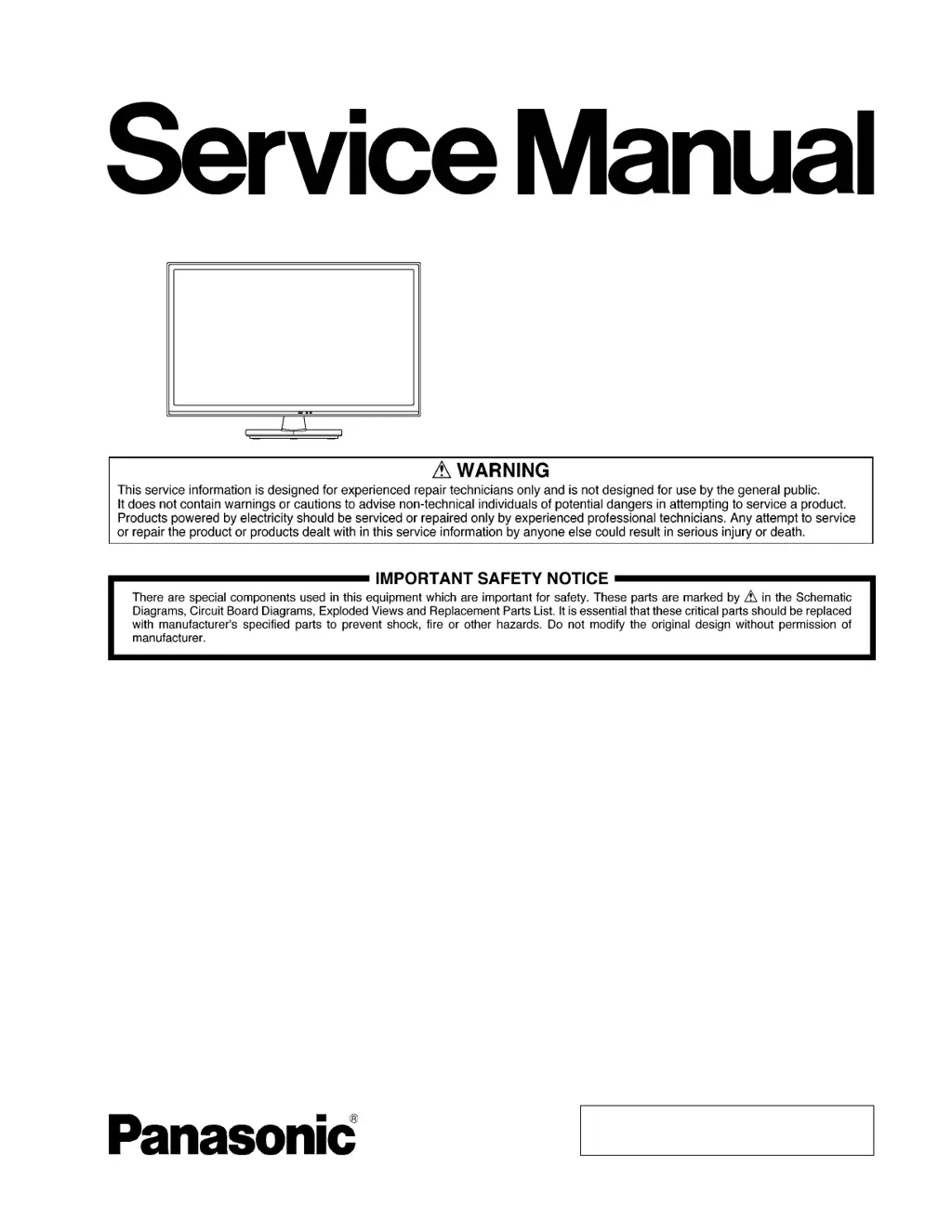

ORDER NO.MTNC130233CE
32 inch Class 720p LCD HDTV
Model No. TC-L32B6L
KM21 Chassis

Questions and Answers

Summary

Safety Precautions

General Guidelines

General guidelines for servicing, including safety precautions and repair policies.

Leakage Current Cold Check

Procedure for checking leakage current when the unit is unplugged.

Leakage Current Hot Check

Procedure for checking leakage current when the unit is powered on.

Warnings and Precautions

Electrostatic Discharge (ESD) Prevention

Techniques to prevent damage to ES devices from static electricity during servicing.

Lead-Free Solder (PbF) Information

Information on using lead-free solder, its properties, and recommended soldering iron temperatures.

Service Navigation

PCB Layout Overview

Diagram showing the physical layout of the main Printed Circuit Boards (PCBs).

Product Specifications

Service Mode Operations

Entering Service Mode

Instructions on accessing the service mode using specific button sequences.

Service Mode Key Commands

Details the button commands used for navigation within the service mode menu.

Exiting Service Mode

Procedure for safely exiting the service mode.

Adjustment Mode Contents

Lists adjustable parameters, sample data, and remarks within the service mode.

SRV-TOOL Functionality

Information on the SRV-TOOL feature, including access and SOS history.

SRV-TOOL Access

Steps to access the SRV-TOOL function from the service mode.

SOS History Display

Explanation of the SOS History display and its meaning.

Power On Time and Count

Details on viewing the total power-on time and count.

SRV-TOOL Exit

Instructions for exiting the SRV-TOOL.

DRV Check - USB HDD Check

Procedure for performing a drive check using a USB HDD.

Hotel Mode Setup

Guide to the Hotel mode setup menu for restricting functions in hotel environments.

Hotel Mode Access Command

Steps to access the Hotel mode setup menu.

Hotel Mode Exit Procedure

Procedure for exiting the Hotel mode setup menu.

Hotel Mode Menu Explanation

Details the items and functions within the Hotel mode setup menu.

USB Memory Data Copy Overview

Instructions for copying data to and from USB memory for board replacement or hotel setup.

Board Replacement Data Copy

Steps to copy data for A-board replacement.

Hotel Installation Data Copy

Steps to copy data for hotel installations.

USB Memory Preparation

Steps to prepare a USB memory with a startup file for data copy.

TV to USB Data Copy

Detailed steps for copying data from the TV set to a USB memory device.

USB to TV Data Copy

Detailed steps for copying data from a USB memory device to the TV set.

Troubleshooting Guide

IIC Bus Line Check

Procedure to check the IIC bus lines for troubleshooting.

IIC Bus Line Check Access

Methods to access the IIC bus line check.

IIC Bus Self-Check Indication

Accessing self-check indication for IIC bus lines.

IIC Bus Self-Check & Factory Reset

Accessing self-check and factory reset for IIC bus lines.

IIC Bus Check Exit

Instructions for exiting the IIC bus line check.

IIC Bus Check Screen Display

Example screen display of the self-check results.

IIC Bus Check Points

Identifies components to check when an NG is displayed in the self-check.

Power LED Blinking Chart

Chart detailing power LED blinking times and corresponding error codes.

LCD Panel Test Mode

Procedure for entering and using the LCD Panel test mode for diagnostics.

Disassembly and Assembly

Unit Disassembly Flow Chart

Visual flowchart illustrating the sequence of disassembly steps for the unit.

Unit Disassembly Procedure

Step-by-step instructions for disassembling the television unit.

Pedestal Removal

Instructions for removing the television's pedestal.

Back Cover Removal

Instructions for removing the television's back cover.

Key Button Bracket Removal

Instructions for removing the key button bracket.

P-Board Removal

Instructions for removing the P-Board.

A-Board Removal

Instructions for removing the A-Board.

Speaker Unit Removal

Instructions for removing the speaker units.

Speaker Bracket Removal

Instructions for removing the speaker bracket.

Metal Chassis Frame Removal

Instructions for removing metal chassis frames.

LCD Mounting and Panel Removal

Instructions for removing the LCD mounting side and LCD panel.

K-Board Removal

Instructions for removing the K-Board.

Measurements and Adjustments

P-Board Voltage Chart

Table listing output voltages and test points for the P-board.

A-Board Voltage Chart

Table listing power supply voltages and test points for the A-board.

Block Diagrams

Main System Block Diagram

Overall block diagram of the television system and its main components.

System Block Diagram Part 1

First part of the block diagram showing power and main board connections.

System Block Diagram Part 2

Second part of the block diagram detailing tuner, audio, and interface connections.

Wiring Connection Diagrams

Cable Assembly Caution Statement

Important cautions regarding the assembly of flexible cables and connectors.

Wire Dressing Guide

Diagram and instructions for properly routing and securing wires within the unit.

Panasonic TC-L32B6L Specifications

General IconGeneral
Screen Size32 inches
Resolution1366 x 768
Display TypeLCD
HDMI Ports2
USB Ports1
Refresh Rate60 Hz
Display Resolution1366 x 768
Backlight TypeLED
