Panasonic TC-P50V10

81

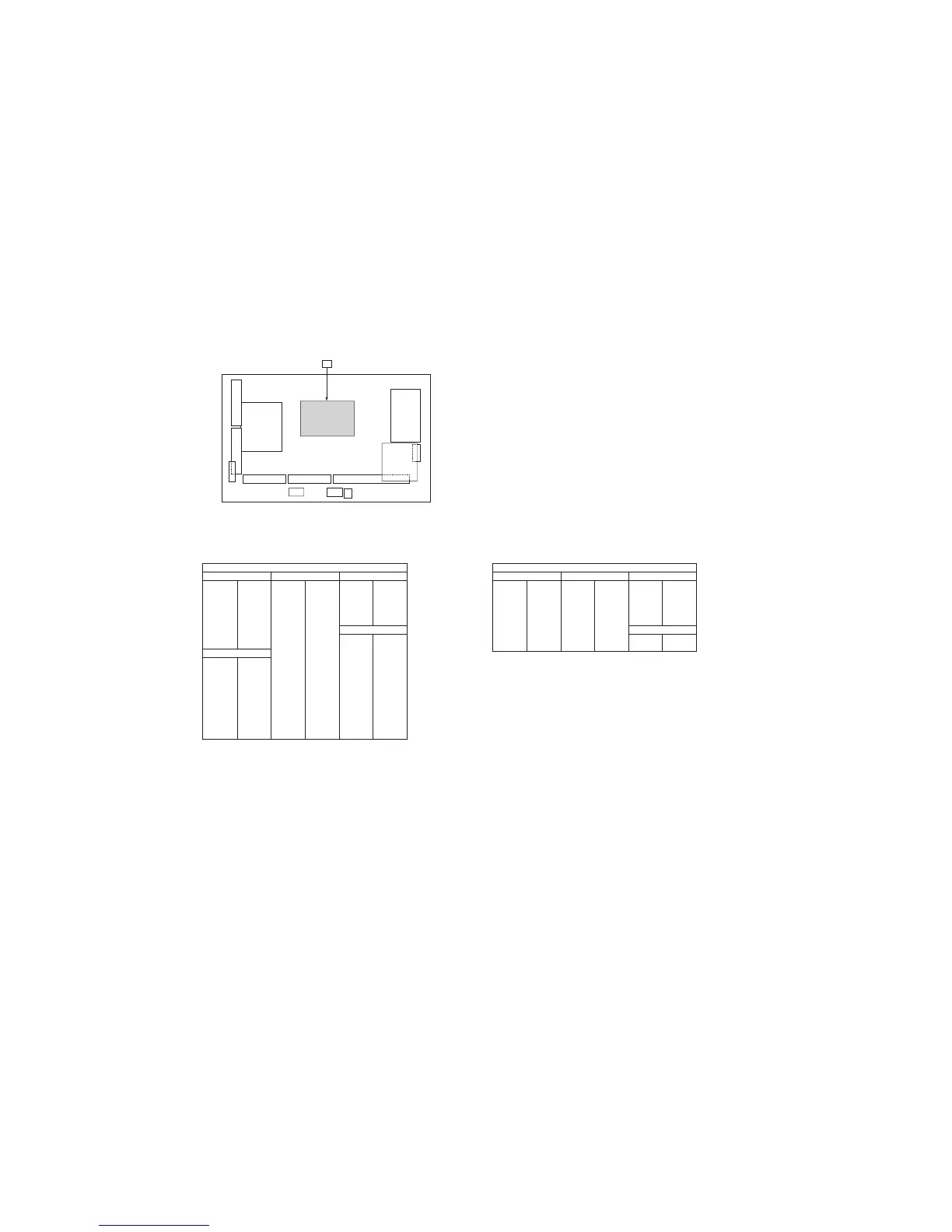

Parts Location
P-BOARD (FOIL SIDE)
IC201 E-3
IC202 E-4
IC251 C-6
IC351 B-3
IC352 C-2
IC353 B-3
IC501 E-2
IC551 D-1
IC601 G-4
IC701 C-2
IC702 C-1
PC201 D-3
PC301 D-2
PC501 D-2
PC502 F-2
PC503 D-2
PC504 F-2
IC
PHOTO COUPLER
Q201 E-5
Q202 E-4
Q203 D-5
Q204 D-4
Q205 D-5
Q206 D-4
Q207 E-4
Q208 E-4
Q354 C-3
Q355 C-2
Q501 F-4
Q502 G-2
Q503 E-2
Q504 F-3
Q505 G-2
Q506 F-2
Q551 C-2
Q557 D-1
Q602 F-4
Q603 F-3
Q605 G-5
Q606 G-5
Q701 C-1
Q702 C-1
Q703 C-1
Q704 D-2
Q705 C-2
TRANSISTOR
TP1 E-4
TP2 E-4
TP3 E-2
TP4 F-2
TP5 H-6
TP6 H-6
TP9 C-4
TEST POINT
VR251 B-5
VR351 B-3
VOLUME
Parts Location
P-BOARD (COMPONENT SIDE)
IC202 E-4
IC251 G-6
IC351 G-3
IC501 D-2
IC551 E-1
IC
Q203 F-5
Q204 F-4
Q205 F-5
Q206 F-4
Q355 G-2
Q551 F-2
Q501 D-4
Q504 D-3
TRANSISTOR
TP1 D-4
TP2 E-4
TP3 D-2
TP4 D-2
TP5 B-5
TP6 B-6
TP9 G-4
TEST POINT
VR251 G-5
VR351 H-3
VOLUME
P
