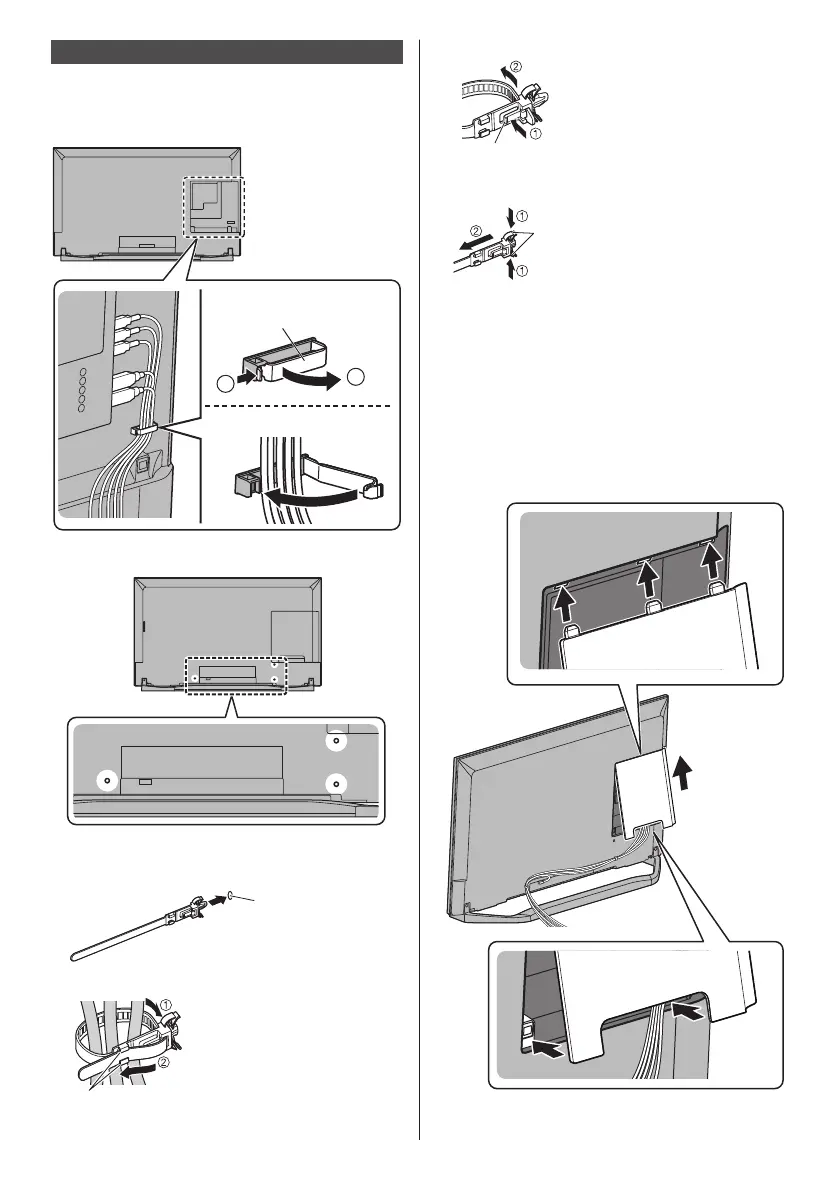

Panasonic TH-58DX900U - Cable Arrangement; Using the cable clamp; Using the cable tie; Attaching the cable cover

English
13
To loosen:
Knob
Keep pushing the knob
To remove from the TV:
Keep pushing both side snaps
Snaps
●
Fix cables as necessary.
●
When using the optional accessory, follow the option’s
assembly manual to fix cables.
■ Attaching the cable cover
●
Do not apply load to the cable cover.
●
Be careful not to nip the cables between the TV and
the cable cover.
●
When using AV terminal, you cannot attach the cable
cover. Keep the removed cable cover for future use.
Cable arrangement
Fix the cables using the cable clamp and cable tie, and
then attach the cable cover to the TV.
■ Using the cable clamp
1
2
Open
Close
Cable clamp
■ Using the cable tie (supplied)
Attach the cable tie
Insert the cable tie in a hole
Hole
Bundle the cables
Hooks
Set the tip in the hooks
