Cable arrangement
Fix the cables using the cable clamp, cable tie, etc. and
then attach the terminal cover / pedestal cover to the TV.
●
The terminal cover / pedestal cover may not be
attached depending on the number of cables.

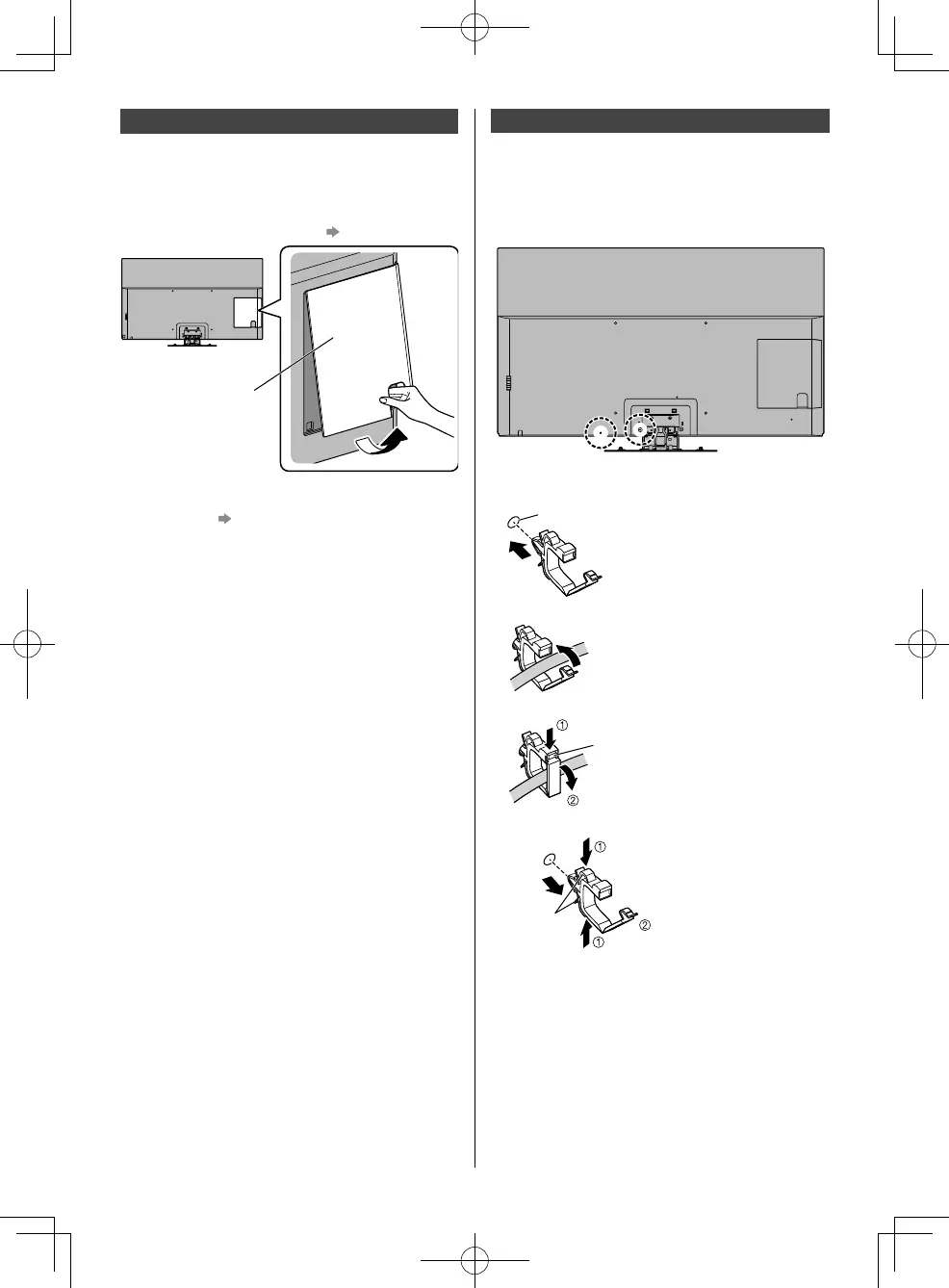

■ Fixing the Mains lead using the cable clamp
Attach the cable clamp
Insert the cable clamp in a hole
Hole
Bundle the cable
Set
To release:
Keep pushing the tab
Tab
Tab
To remove from the TV:
Keep pushing both side snaps
Snaps
Connecting the cables
■ Removing the terminal cover
●
Be sure to remove the terminal cover before
connecting or disconnecting cables.
●
When the connections are completed, attach the
terminal cover / pedestal cover. (p. 12)
Terminal cover
■ Connecting the aerial and external
equipment (p. 14)
