Getting Started
Right side
D H
E
*1
E
*2
E
*3
F GA CB
1394
I J L M N O PK
Q
R S

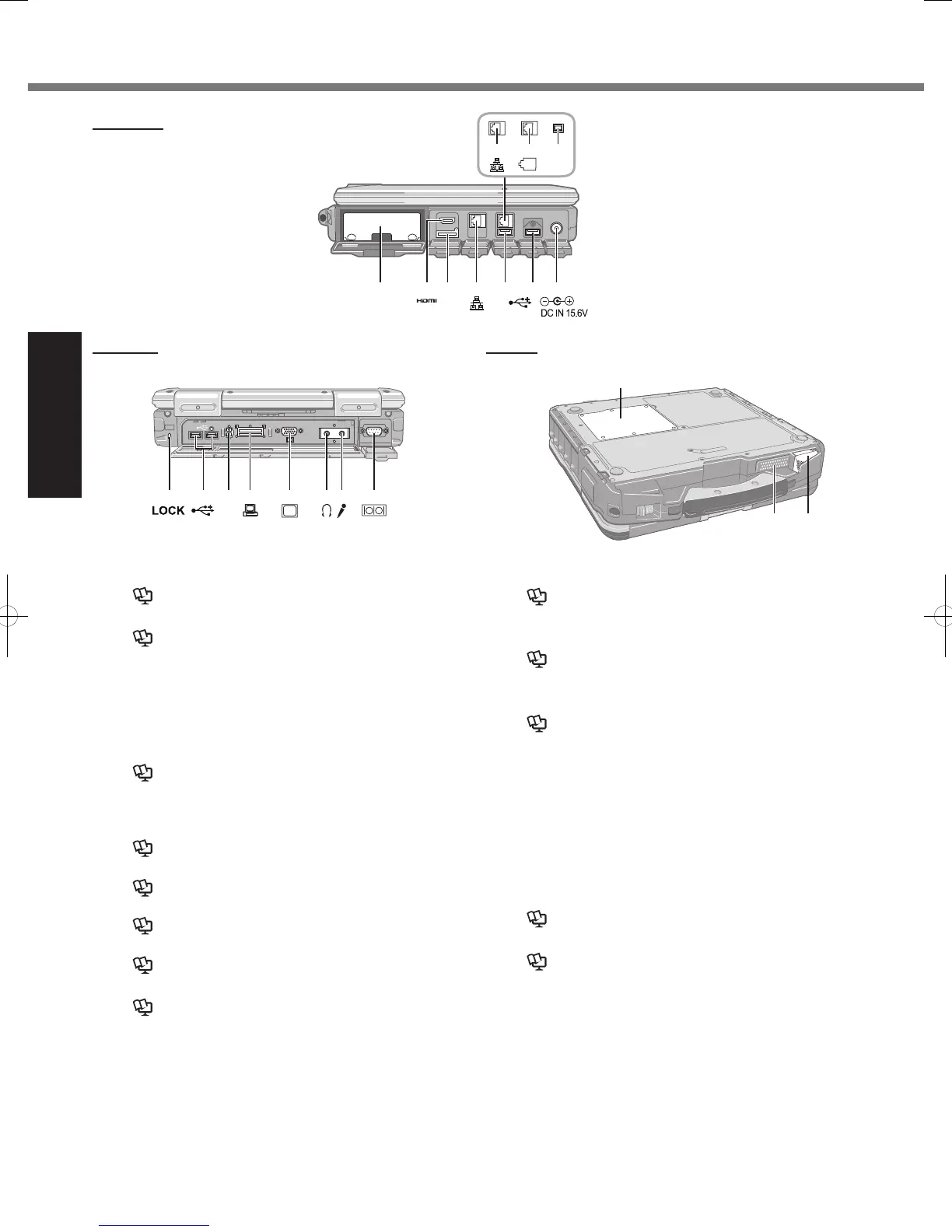

Rear side Bottom
A: Hard Disk Drive
è
Reference Manual “Hard Disk Drive”
B: HDMI Port
è
Reference Manual “External Display”
C: SIM Card Slot
<Only for model with wireless WAN>
Insert the SIM card into the SIM card slot with the
contact side facing down and the cut corner facing
forward.
D: LAN Port
è
Reference Manual “LAN”
E: 2nd LAN Port
*1
/ Modem Port
*2
/ IEEE 1394 Interface
Connector
*3
*1
<Only for model with 2nd LAN>
è
Reference Manual “LAN”
*2
<Only for model with Modem>
è
Reference Manual “Modem”
*3
<Only for model with IEEE 1394>
è
Reference Manual “IEEE 1394 Devices”
F: USB Port
è
Reference Manual “USB Devices”
G: USB Port
è
Reference Manual “USB Devices”
H: DC-IN Jack
I: Security Lock
A Kensington cable can be connected.
For further information, read the manual that comes
with the cable.
J: USB Port
è
Reference Manual “USB Devices”
K: External Antenna Connector
L: Expansion Bus Connector
è
Reference Manual “Port Replicator / Car
Mounter”
M: External Display Port (VGA)
è
Reference Manual “External Display”
N: Headphone Jack
 Youcanconnectheadphonesorampliedspeakers.
When they are connected, audio from the internal
speakers is not heard.
O: Microphone Jack
A condenser microphone can be used. If other types
of microphones are used, audio input may not be pos
-
sible, or malfunctions may occur as a result.
P: Serial Port
Q: RAM Module Slot
è
Reference Manual “RAM Module”
R: Speaker
è
Reference Manual “Key Combinations”
S: Ventilation Hole (Intake)
Description of Parts
