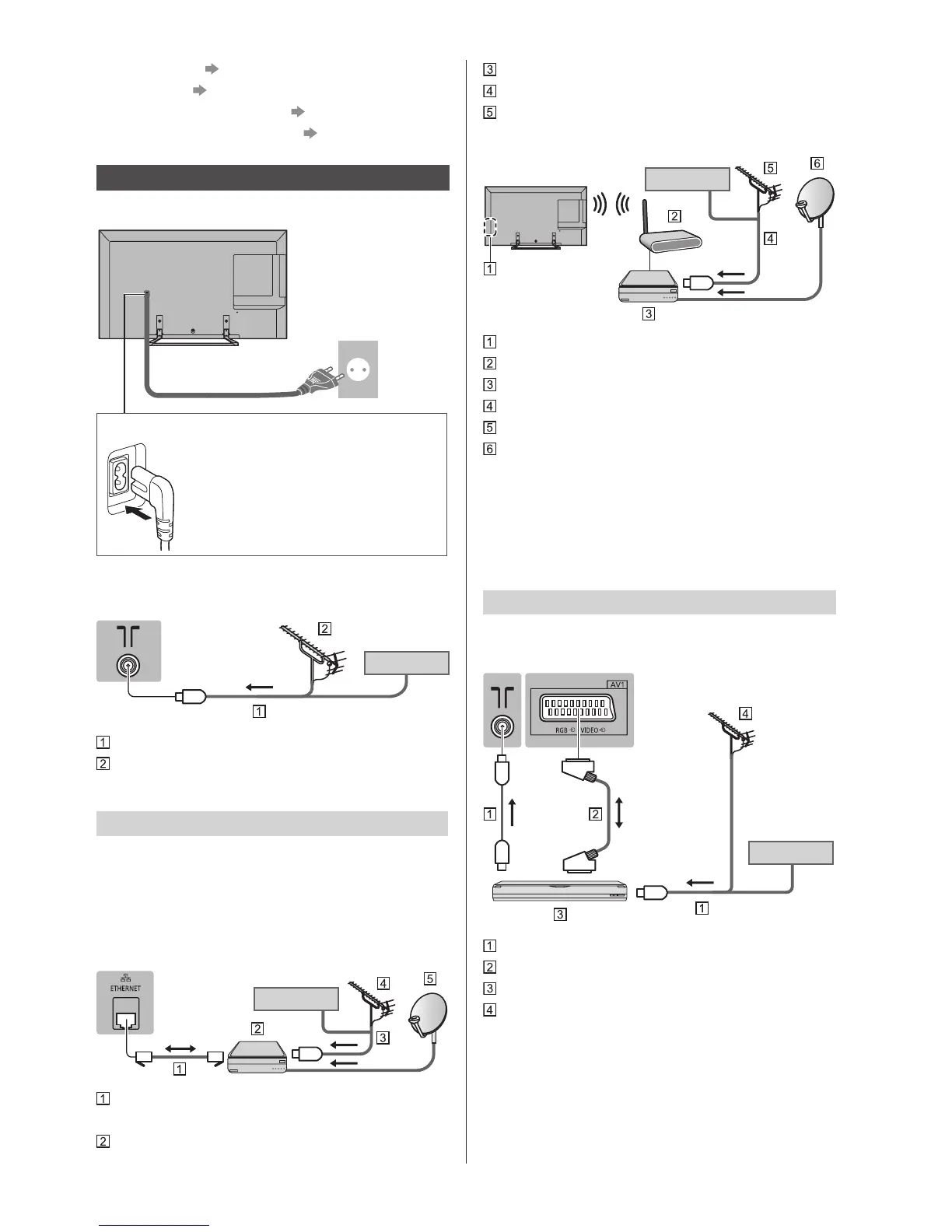

Basic connections
■ Mains lead
AC 220-240 V
50 / 60 Hz
Mains lead
Insert the mains plug firmly into place.
●
When disconnecting the mains lead,
be absolutely sure to disconnect the
mains plug from the mains socket
first.
■ Aerial
TV
Cable
RF cable
Terrestrial aerial
●
For DVB-C, DVB-T, Analogue
DVB-via-IP client connection
This TV has DVB-via-IP client function and can connect
to DVB-via-IP server to watch broadcast streaming.
●
It is recommended to connect to DVB-via-IP server
with a LAN cable.
■ Wired connection
TV
Cable
LAN cable (Shielded)
●
Use Shielded Twist Pair (STP) LAN cable.
DVB-via-IP server
RF cable
Terrestrial aerial
Satellite dish
■ Wireless connection
Cable
Built-in wireless LAN
Access point
DVB-via-IP server
RF cable
Terrestrial aerial
Satellite dish
●
Depending on the network condition and broadcast,
this function may not be available.
●
For information about the connections, read the
manual of the DVB-via-IP server.
●
For details, refer to [eHELP] (Functions > DVB-via-
IP).
AV devices
■ DVD Recorder / VCR
TV
Cable
RF cable
SCART cable
DVD Recorder / VCR
Terrestrial aerial
