Lamp Unit replacement (Cont.)

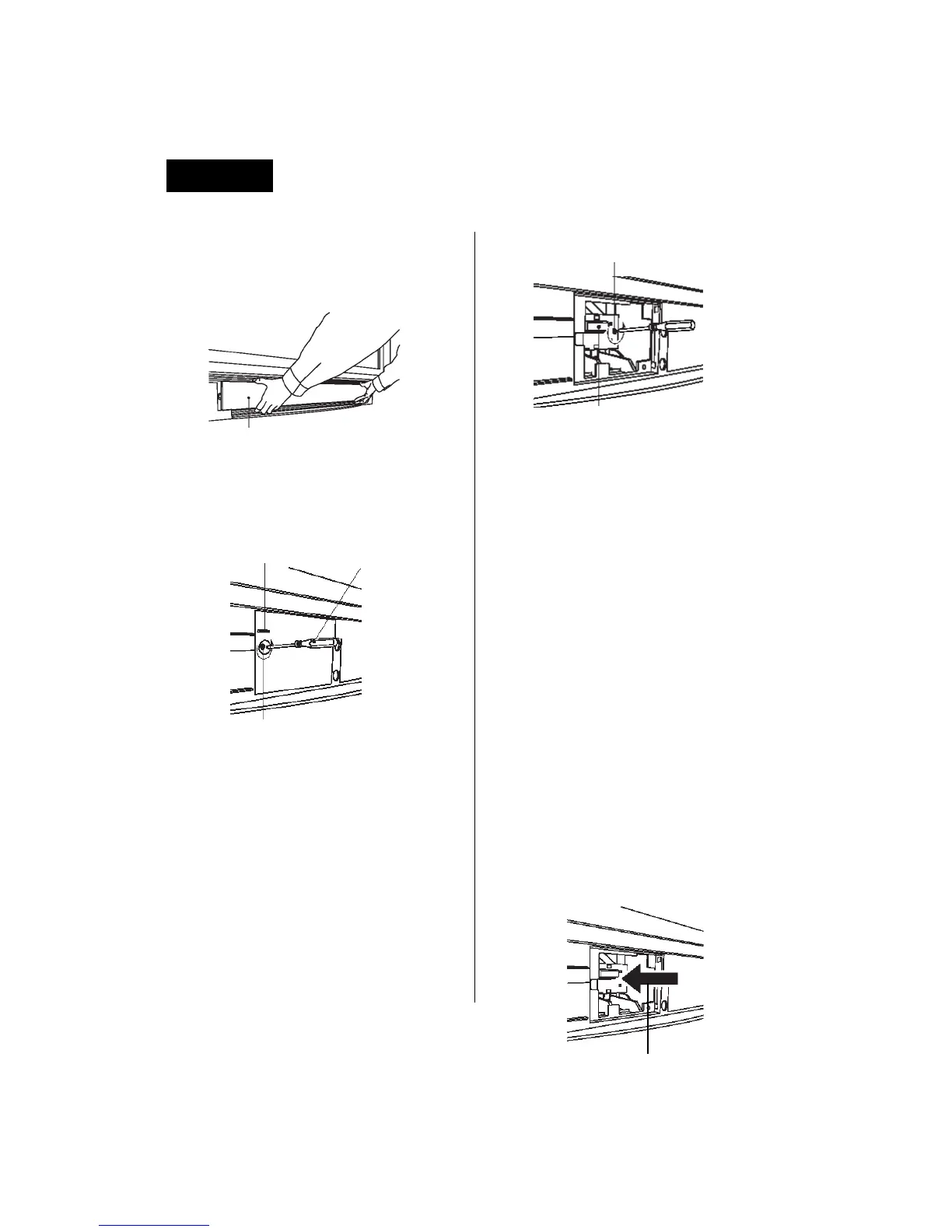

Procedure for removing old lamp
• Remove the Front cover. Place your
fingertips under the front cover and
pull it from the projection display.
• First read caution and warning labels.
Then, loosen the lamp cover screw by
using a screwdriver.
Cautions:
• Under no circumstance should you
touch the actual bulb.
• At this high operating tempera-
ture the natural oil on your finger
can cause the glass to weaken
where touched and the bulb can
crack or explode.
• Loosen the lamp unit screw with a
screwdriver. Then, grasp the lamp unit
by the lamp unit handle indicated in
the following diagram, and slowly
remove from the projection display.
Note: Do not drop, as the impact of
dropping may cause the lamp to
explode.
Warning:
• The lamp may be hot.
• Be careful when handling.
Cautions:
• High-pressure lamp may
explode, if improperly handled.
• Danger of injury due to glass
fragments.
Procedure for installing new
lamp
• Handle the Lamp unit only by the
Lamp unit handle.
Cautions:
• Do not touch the Lamp surface.
If touched, wipe clean with a dry
soft cloth.
• Do not use any type of liquid to
clean the lamp; it will create a
stain in the image.
• Insert the new lamp unit being careful
of the insertion direction.
Note: Press on the arrow mark making
sure insertion is done correctly.
Front Cover
Lamp Cover handle
Screwdriver
Lamp Cover screw
Lamp unit screw
Lamp unit handle
Arrow mark
