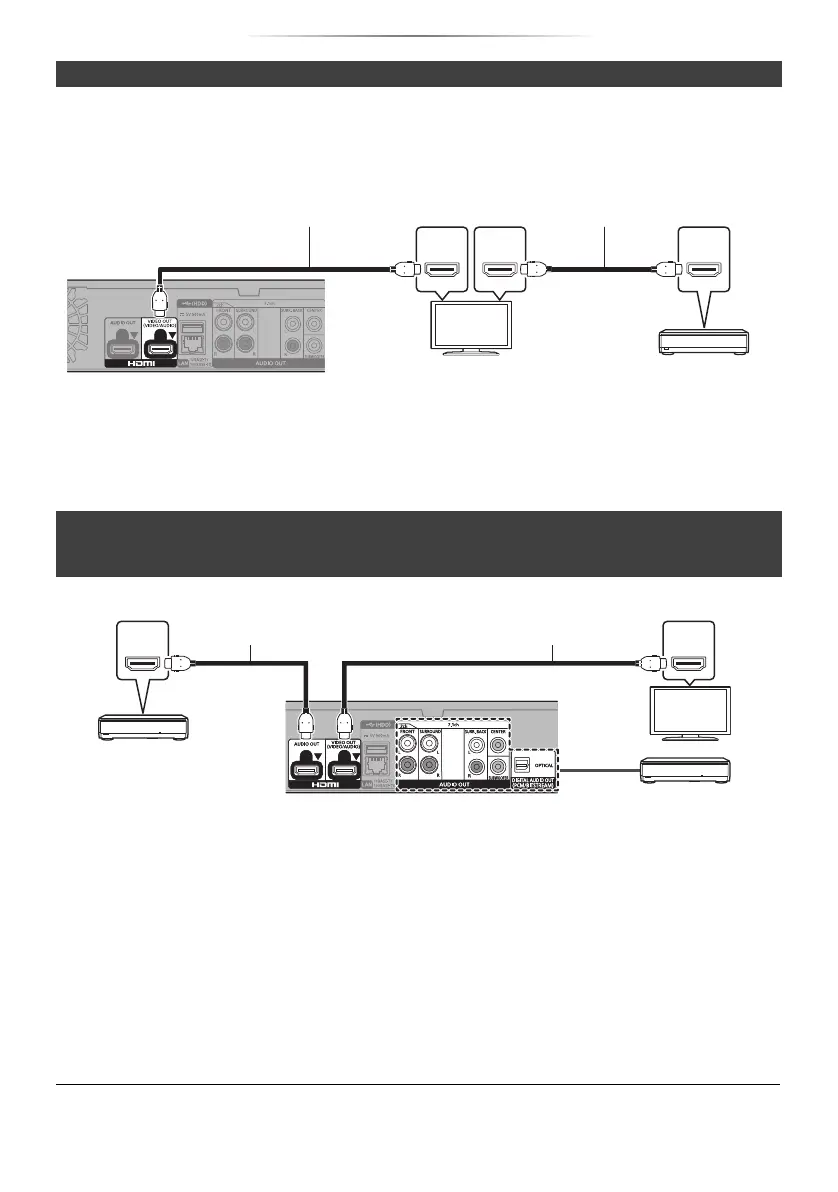

Getting started
- 13 -
3D or 4K images can be played back when this unit is connected to a 3D or 4K compatible TV.
This connection only supports up to 5.1ch.
To connect a TV and amplifier with an HDMI cable, connecting terminals on both the TV and amplifier
must be ARC-compatible. (> 11, “About ARC”)
Connecting an amplifier to a 4K-compatible TV
Setting
Set the following items in the setup menu (> 29):
Set “HDMI(VIDEO) Output Mode” to “Automatic ( Video Only / Video+Audio )”. (> 29)
Set “HDMI(AUDIO) Output Mode” to “Audio Only”. (> 29)
HDMI OUT
(ARC)
HDMI IN
(ARC)
HDMI IN
Amplifier/receiver
HDMI cable
HDMI cable
(18 Gbps)
Enjoying video with a 4K-compatible TV in combination with an amplifier connected to the
HDMI AUDIO OUT terminal and another amplifier connected to the OPTICAL/2ch AUDIO OUT/
7.1ch AUDIO OUT terminal
Setting
Set the following items in the setup menu (> 29):
Set “HDMI(VIDEO) Output Mode” to “Automatic ( Video Only / Video+Audio )”. (> 29)
Set “HDMI(AUDIO) Output Mode” to “Audio Only”. (> 29)
To enjoy audio with an amplifier connected to the OPTICAL terminal:
Set “Audio Output” to “Off” in “Advanced Settings”. (> 30)
To enjoy audio with an amplifier connected to the 7.1ch AUDIO OUT terminals:
Set “Analogue Audio Output” to “7.1ch”. (> 32)
To enjoy audio with an amplifier connected to the 2ch AUDIO OUT terminals:
Set “Analogue Audio Output” to “2ch (Downmix)”. (> 32)
To enjoy audio with a TV
Set “HDMI(VIDEO) Output Mode” to “Video+Audio”. (> 29)
It is not possible to simultaneously output audio from both the amplifier connected to the HDMI AUDIO OUT terminal and the
other amplifier connected to the OPTICAL/2ch AUDIO OUT/7.1ch AUDIO OUT terminal.
HDMI INHDMI IN
HDMI cable
HDMI cable
(18 Gbps)
Amplifier/receiver
Amplifier/receiver
