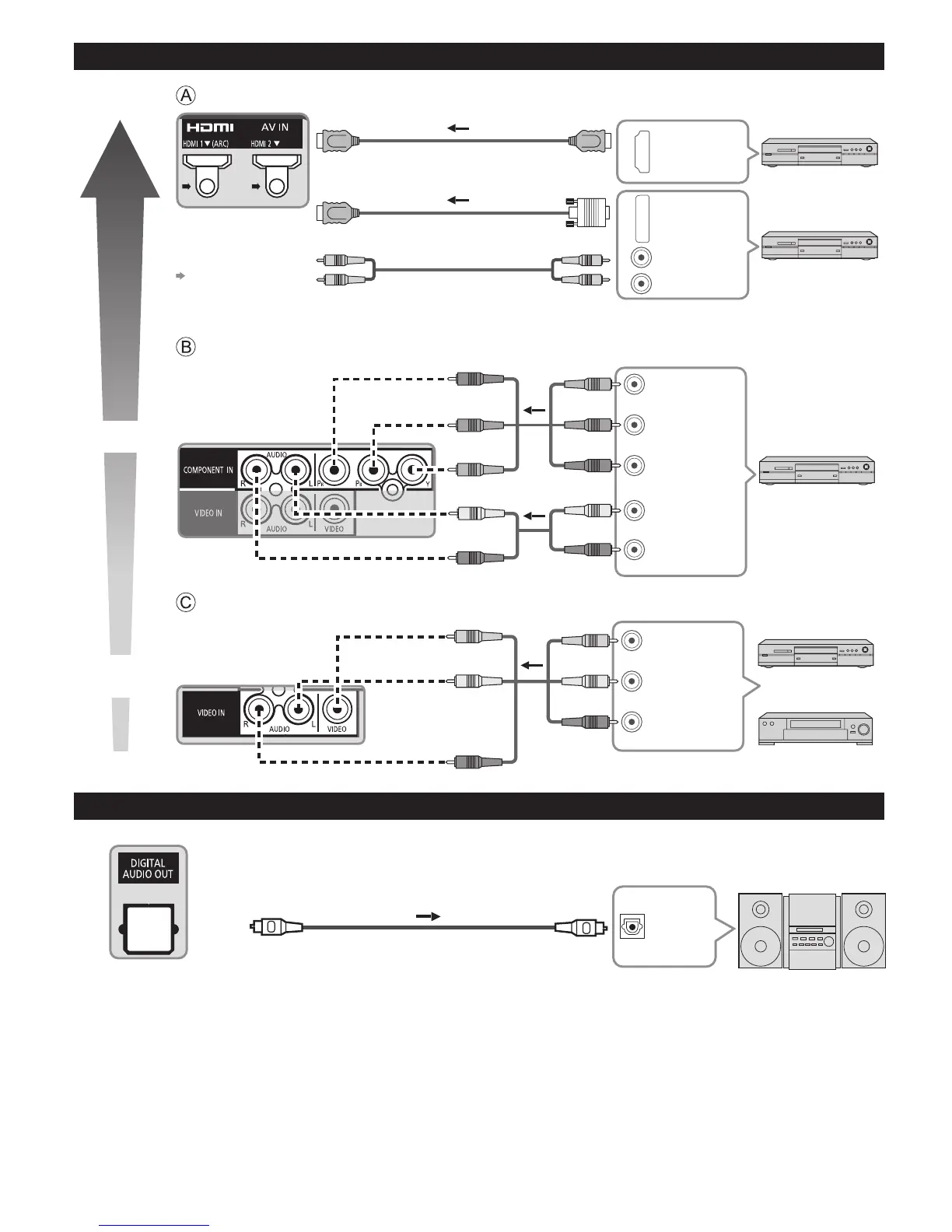

AV cable connection
Audio connection
Best
Good
Basic
(Not HD)
To use HDMI terminals
L
R
●
VIERA Link connection, please refer to p. 33
●
The HDMI connection is required for a 1080p signal.
HDMI
AV OUT
HDMI-DVI
Conversion cable
DVI OUT
AUDIO OUT
e.g. Blu-ray Disc
player
e.g. Blu-ray Disc
player
AV Equipment
AV Equipment
Connect to Audio input terminal
HDMI connection (p. 57)
To use COMPONENT terminals
L
R
Y
P
B
PR
AUDIO
OUT
COMPONENT
VIDEO OUT
white
red
green
blue
red
white
red
green
blue
red
white
red
green
blue
red
e.g. Blu-ray Disc
player
AV Equipment
To use COMPOSITE terminals
L
R
COMPOSITE
OUT
yellow
white
red
yellow
white
red
yellow
white
red
or
e.g. DVD Recorder
AV Equipment
e.g. VCR
DIGITAL
AUDIO IN
e.g. Amplifier
Audio equipment
●
For HDMI-ARC (Audio Return Channel) connection, see p. 32
Optical cable
