Panasonic WH-SDF09C3E8 - Refrigeration and Water Cycle Diagram

22

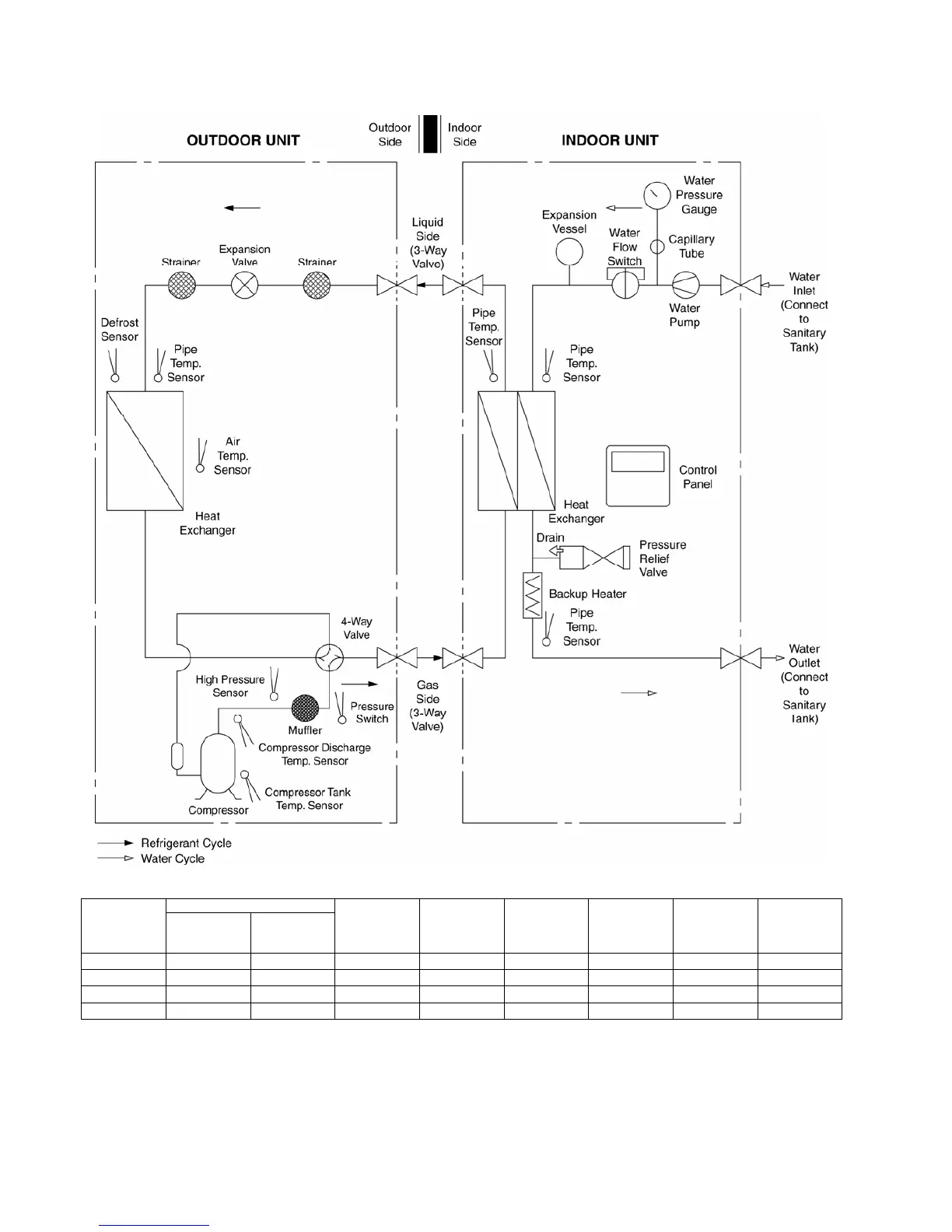

6. Refrigeration and Water Cycle Diagram
Piping size
Model
Gas Liquid
Rated
Length
(m)
Common
Length
(m)
Max
Elevation
(m)
Min.
Piping
Length
(m)
Max.
Piping
Length
(m)
Additional
Refrigerant
(g/m)
UD09CE8 5/8” 3/8” 7 30 30 3 40 50
UD12CE8 5/8” 3/8” 7 30 30 3 40 50
UD14CE8 5/8” 3/8” 7 30 30 3 40 50
UD16CE8 5/8” 3/8” 7 30 30 3 40 50
* If piping length is over common length, additional refrigerant should be added as shown in the table.
