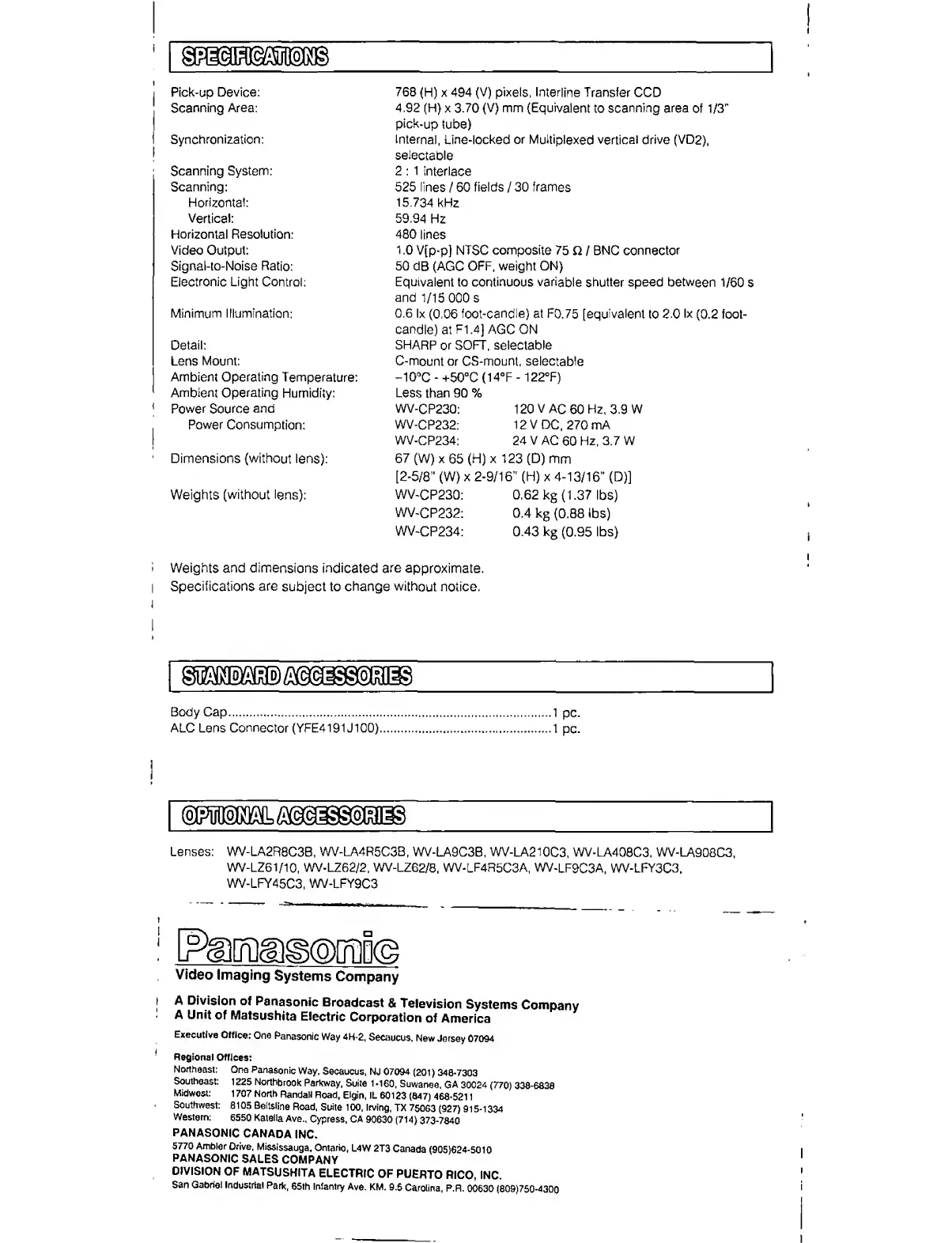

Panasonic WV-CP230

[SGEGlRIG^A^llQNS]
1_
Pick-up Device:
_i
768 (H) x 494 (V) pixels, Interline Transfer CCD
Scanning Area:
4.92 (H) x 3.70 (V) mm (Equivalent to scanning area of 1/3’’
pick-up tube)
Synchronization:
internal, Line-locked or Multiplexed vertical drive (VD2),
selectable
Scanning System:
2 : 1 interlace
Scanning:
525 lines /60 fields / 30 frames
Horizontal:
15.734 kHz
Vertical: 59.94 Hz
Horizontal Resolution:
480 lines
Video Output: 1.0 V[p-p) NTSC composite 75 Q / BNC connector
Signal-to-Noise Ratio: 50 dB (AGC OFF, weight ON)
Electronic Light Control; Equivalent to continuous variable shutter speed between 1/60 s
and 1/15 000 s
Minimum Illumination:
0.6 lx (0.06 foot-candle) at F0.75 [equivalent to 2.0 lx (0.2 foot-
candle) at FI .4] AGC ON
Detail: SHARP or SOFT, selectable
Lens Mount:
C-mount or CS-mount, selectable
Ambient Operating Temperature:
-lO^C - +50°C (14°F - 122°F)
Ambient Operating Humidity:
Less than 90 %
Power Source and
WV-CP230:
120 VAC 60 Hz, 3.9 W
Power Consumption:
WV-CP232:
12 V DC, 270 mA
WV-CP234: 24 VAC 60 Hz. 3.7 W
Dimensions (without lens):
67 (W) x 65 (H) x
123 (D) mm
[2-5/8” (W) x 2-9/16" (H) x 4-13/16" (D)]
Weights (without lens): WV-CP230: 0.62 kg (1.37 lbs)
WV-CP232:
0.4 kg (0.88 lbs)
WV-CP234:
0.43 kg (0.95 lbs)
Weights and dimensions indicated are approximate.
Specifications are subject to change without notice.
Body Cap.
.1 pc.
ALC Lens Connector (YFE4191J100)..
.1 pc.
Lenses: WV-LA2R8C3B, WV-L44R5C3B, WV-LA9C3B, WV-LA210C3, WV-L4408C3, WV-LA908C3,
WV-LZ61/10, WV-LZ62/2, WV-LZ62/8, WV-LF4R5C3A, WV-LF9C3A, WV-LFY3C3.
WV-LFY45C3, WV-LFY9C3
