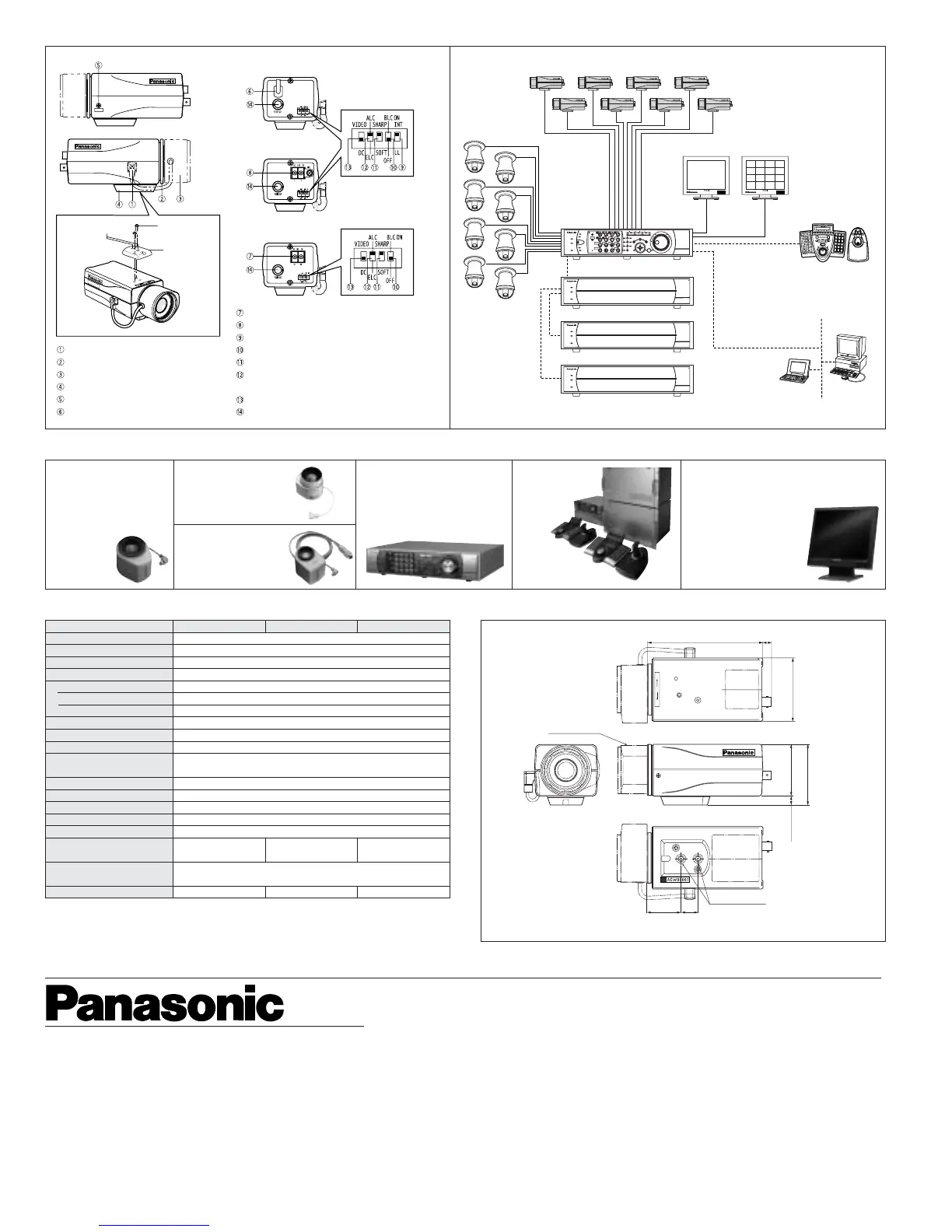

Panasonic WV-CP240EX Series

Unit: mm (inches)
MAJOR OPERATING CONTROLS SYSTEM EXAMPLE
APPEARANCESPECIFICATIONS
123 (4-13/16" ) 9 (3/8")
67 (2-5/8")
55 (2-3/16")
65 (2-9/16")
10 (3/8")
18 (11/16")36 (1-7/16")
2-1/4-20UNC
Lens (Option)
CS
C
SER
NO.
OPTIONAL COMPONENTS & ACCESSORIES
ALC Lenses
WV-LA2R8C3B
WV-LA4R5C3B
WV-LA9C3B
Zoom Lens
WV-LZ61/15 (15x)
Variable Focal Lenses
WV-LZA61/2S
WV-LZF61/2
WV-LZ62/8S
LCD AV Monitors
WV-LC1710 43.2cm (17")
WV-LD2000 50.8cm (20")
WV-LD1500 38.1cm (15")
Digital Disk Recorders
WJ-HD316A (16ch)
WJ-HD309A (9ch)
WJ-HD220 (8ch)
WV-CP240EX
WV-CP244EX
WV-CP242EX
ALC Lens Connector
Flange-back Adjusting Ring
Lens (option)
Mount Adapter
Focus Fixing Screw
Power Cord (only for WV-CP240EX)
Fixing Screws
Camera Mounting
Screw Holes
Mount Adapter
cs
c
LOCK
DC 12V Input Terminal (only for WV-CP242EX)
AC 24V Input Terminal (only for WV-CP244EX)
Synchronization Mode Selector
Back Light Compensation Mode Selector
Detail/Aperture Level Selector
Automatic Light Control/
Electronic Light Control Selector
Lens Drive Signal Selector
Video Output Connector
LCD MonitorLCD Monitor
PS-Data Link
WV-CS954 x 8
PC
PC
LAN/WAN
Internet
Ethernet
(10Base-T/100Base-TX)
WV-CP240EX Series x 8
Extension Unit WJ-HDE300 x 3
Digital Disk Recorder WJ-HD316A
WV-CU650
System Controller
+
Spot
Multi
screen
Multi
screen
Model No. WV-CP240EX WV-CP242EX WV-CP244EX
Pick-up Device 768 (H) x 494 (V) pixels, Interline Transfer CCD
Scanning Area
4.92 (H) x 3.70 (V) mm (Equivalent to scanning area of 1/3" pick-up tube)
Synchronization Internal, Line-locked or Multiplexed Vertical Drive (VD2), selectable
Scanning System 2 : 1 interlace
Scanning 525 lines / 60 fields / 30 frames
Horizontal 15.734 kHz
Vertical 59.94 Hz
Horizontal Resolution 480 TV lines
Video Output 1.0 V [p-p] NTSC composite 75 Ω / BNC connector
Signal-to-Noise Ratio 50 dB (Equivalent to AGC Off, weight On)
Electronic Light Control Equivalent to continuous variable shutter speed between
1/60 s and 1/15,000 s
Minimum Illumination 1.1 lux (0.11 fc) at F1.2, 1.5 lux (0.15 fc) at F1.4
Detail SHARP or SOFT, selectable
Lens Mount C-mount or CS-mount, selectable
Ambient Operating Temperature –10 °C - +50 °C (14 °F - 122 °F)
Ambient Operating Humidity Less than 90 %
Power Source and
120 V AC 60 Hz, 3.6 W
12 V DC, 270 mA 24 V AC 60 Hz, 3.3 W
Power Consumption
Dimensions (without lens)
67 x 65 x 123 mm (2-5/8" x 2-9/16" x 4-13/16")
(W x H x D)
Weights (without lens) 480 g (1.06 lbs.) 300 g (0.66 lbs.) 330 g (0.73 lbs.)
