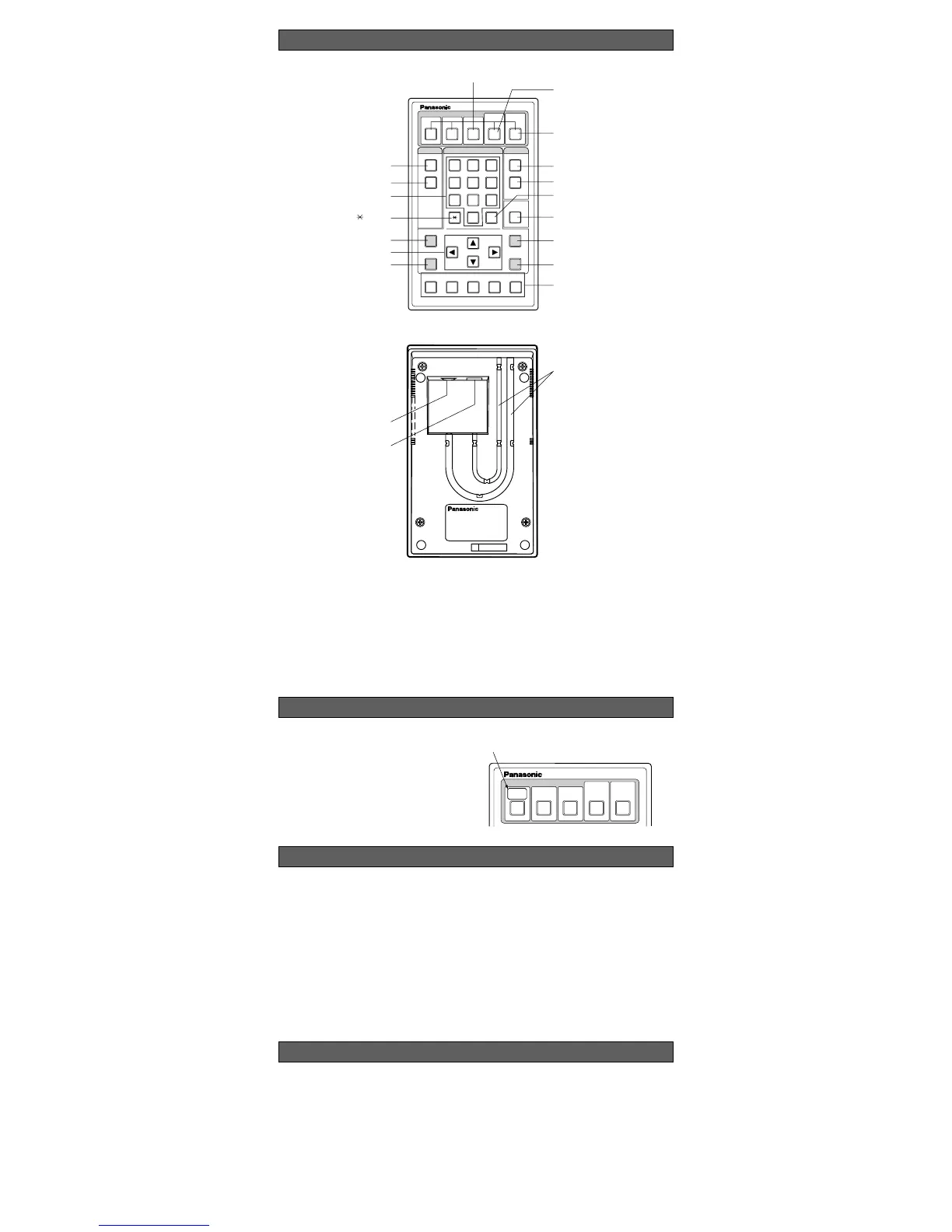

APPEARANCE
ESC
MENU
AF NEAR FARTELE WIDE
Remote Controller WV-CU20
123
456
78
0
9
12345
#
STEP 1
DIAL
MEMORY
STEP 2 STEP 3
CALL
REDIAL
DELETE
ENTER
AUDIO MUTE
ALM ACKVIDEO
ONE TOUCH DIAL
AUTO/MANU
ALM MEMORY
SER
NO.
button
Numeric buttons
Quick Dial button
Dial button
Alarm Acknowledge button
Video Scanning Mode button
One-touch Dial buttons
Escape button
Direction buttons
Menu button
Call button
Redial button
# (Alarm Memory) button
Delete button
Audio Mute button
Enter button
Camera Control buttons
Connection jack
(6-conductor DIN cable)
Connection port
(6-conductor modular cable)
Cable Guides
The Title Labels are provided for attaching to
the One-touch Dial buttons of the controller.
Write the destination title assigned to the button
on the label, peel the label off, and then attach
it on the controller as shown below.
PREPARATION
Power Requirement: 5V DC 2 mA supplied by exclusive WJ-AV20 AV Codec
Ambient Operating Temperature: –10°C - +40°C (14°F - 104°F)
Ambient Operating Humidity: Less than 80%
Dimensions: 110 (W) x 51 (H) x 177 (D) mm
4-5/16” (W) x 2” (H) x 6-15/16” (D)
Weight: 280
g (0.6 lbs.)
Weight and dimensions shown are approximate.
Specifications are subject to change without notice.
SPECIFICATIONS
Refer to the Operating Instructions of the WJ-AV20 AV Codec for connections,
operations and further details.
STANDARD ACCESSORIES
6-conductor DIN cable (2.5 m) ..........................1 pc.
6-conductor modular cable (3 m) ......................1 pc.
Title labels...........................................................1 set
Matsushita Electric Industrial Co., Ltd.
Central P.O. Box 288, Osaka 530-91, Japan
NM1299-0 YWV8QA5338AN Printed in Japan
N 19
Remote Controller WV-CU20
12345
ALM ACKVIDEO
ONE TOUCH DIAL
Tokyo
AUTO/MANU
Title Label
■ Front View
■ Rear View
