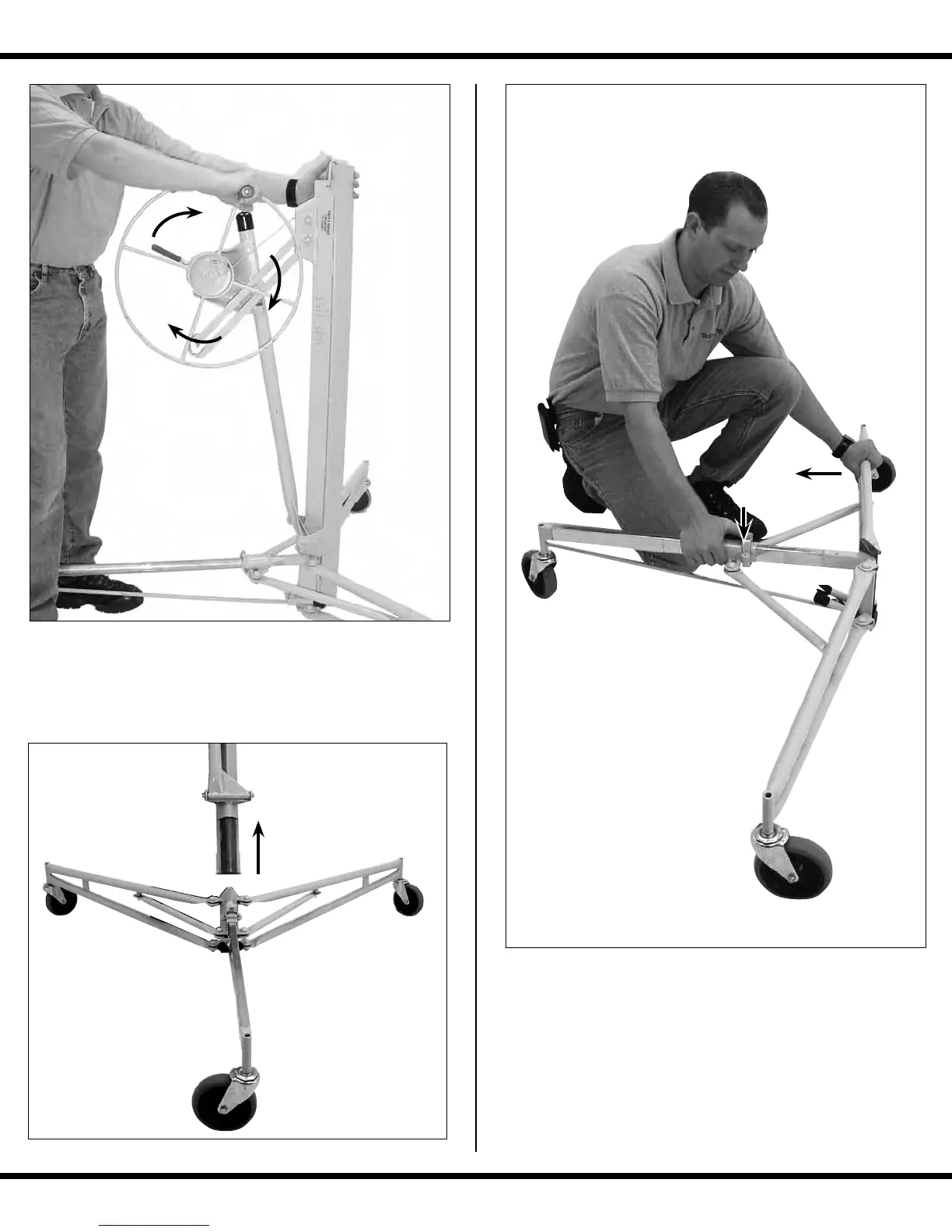

9. Lift the frame off of the tripod base.
10. To collapse the tripod base, press down on the slide
yoke pin clip and swing the legs in until they lock in the
closed position.
DISASSEMBLY continued
8. Hold the retaining hook in this position with your left
hand and rotate the winch forward with your right hand. This
will cause the winch assembly to fold up against the frame.
When the slide bar contacts the frame, tighten the cable just
sufficiently to hold the winch in the collapsed position.
- 8 -
