PC-1000/Laser 1000 Installation

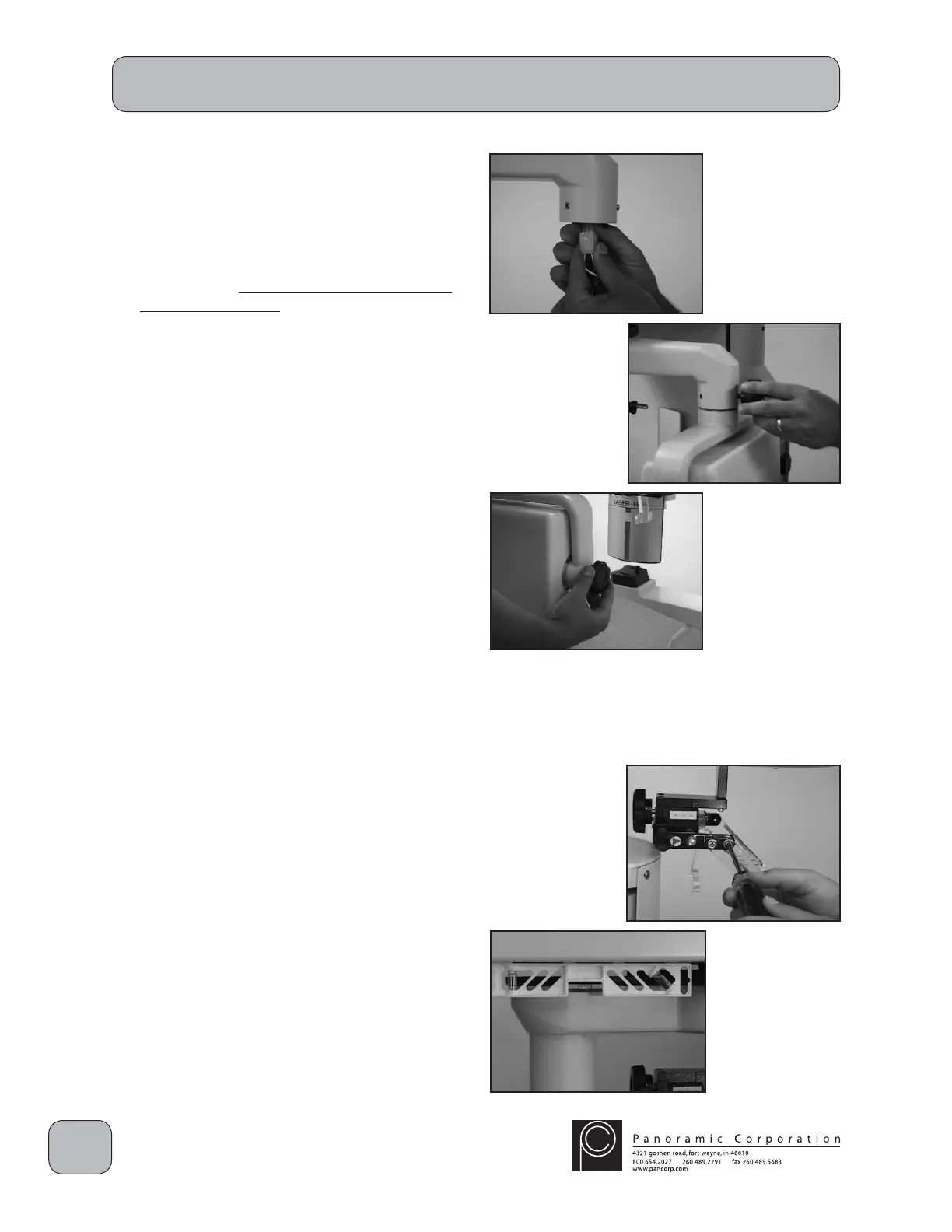

Install Tubehead Assembly
1. Connect the 6-pin molex connector from the
end of the rotating arm to the 6-pin connector
on the tubehead.
2. Carefully raise the tubehead into position facing
the fi lm drum, ensuring that the wires are not
stressed or pinched.
3. Install and tighten the horizontal locking knob,
the large knob with the smooth unthreaded
end, into the rear of the rotating arm.
4. Remove the two small set screws on each side
of the horizontal locking knob.
5. Install the two slotted screws. Snug, then
break the snug fi t to allow alignment of the
tubehead.
6. Install the two short set screws (from the
cephalometric packaging, not those previously
removed).
7. Remove the large allen bolt from the right
end of the tubehead assembly and install the
vertical locking knob in it's place.
8. Loosen both knobs and verify that the tubehead
can move freely.
Install Temple Supports
1. Install the 2 temple supports using the existing
screws and washers in the head support
assembly.
2. Ensure that the temple supports are angled
away from the machine and that the horizontal
red lines on the temple supports are facing
out.
Level Machine
With a level on the underside of the main
overhead chassis, level the machine in all
directions using the 4 four adjustable feet under
