Connector Identification

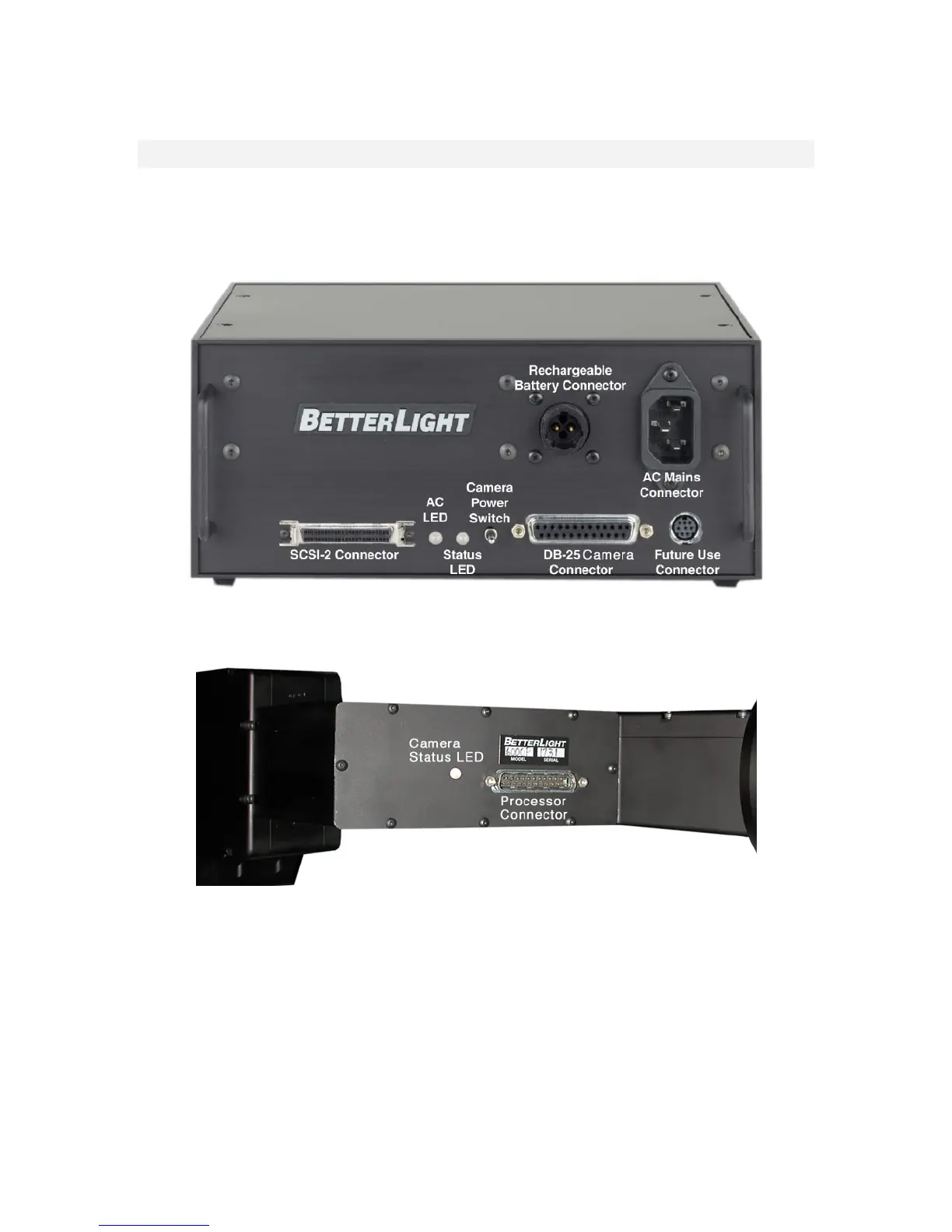

There are two main parts to your camera system. There is the main camera body shown on the
bottom and the processor module shown on the top.
The camera contains the CCD and an electronics bay that drives the pan motor and shutter motor.
The camera is powered through the DB-25 cable that connects the camera to the Processor. Use
only the double-shielded cable supplied with the camera. The interface between the
camera and processor module is proprietary, and NOT SCSI !
