Paragon P857 - Parts List

Copyright 2019 © Paragon Tank Truck Equipment LLC4
(800) 471-8769

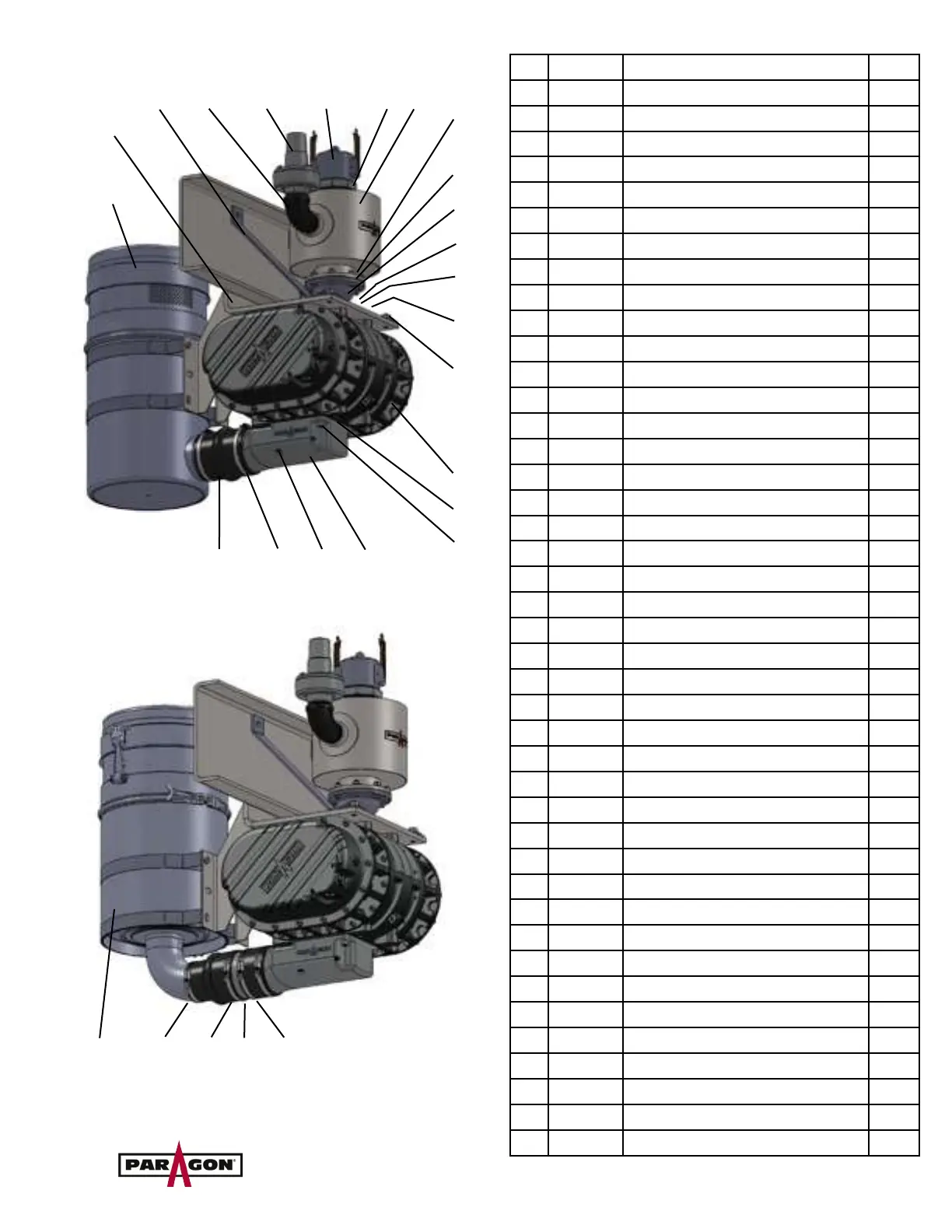

Vertical Airflow Pressure Only Filter Connection
Vertical Airflow Pressure/Vacuum Filter
Connection
Note: Bottom Outlet Filter
is always recommended
for Vertical Airflow.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
4 5 6 7 8 9
1 or 2
3
31 32 33 34 29b
30 29 28 27
#
P/N
Description
QTY
1
625-006
Filter, Assy S/S T850/T1050/ P857 psi only
1
2
625-002
Filter, Assy S/S T850/T1050/ P857, psi/vac
1
3
508-029
Bracket- Mounting no holes- P857 VA
1
4
508-021
Angle Strap
2
5
533-005
2” Street Elbow
1
6
610-012
Relief Valve 16 psi
1
6
610-013
Relief Valve 18 psi
1
6
610-014
Relief valve 20 psi
1
7
565-001
Dustcap 3”
1
7
565-002
Dustcap 4”
1
8
567-002
Camlock 3” male x 4” NPTM
1
8
533-045
Camlock 4” male x 4” NPTM
1
9
563-002
Muffler, 4” TTMA x 4” FNPT - steel
1
10
228-105
3/8” Bolt 1-1/2” long
2
11
294-009
3/8” Washer
2
12
284-008
3/8” Nut GR5 plated
2
10
228-066
7/16” Bolt TTMA Flange
6
11
296-011
1/2” Washer Plain Flat (for TTMA Flange)
6
12
284-007
7/16” Nut TTMA Flange
6
13
526-011
TTMA Gasket
1
14
509-010
Discharge Flange
1
15
526-002
Flange Gasket
1
16
128-025
M12 x 30 Bolt- Discharge Flange
4
17
196-008
M12 Washer- Discharge Flange
4
18
128-037
Cap Screw M16 x 35mm
4
19
194-007
M16 Lock Washer
4
20
228-095
5/8” Cap Screw Angle Strap
2
21
294-011
5/8” Lock Washer Angle Strap
2
22
296-014
5/8” Flat Washer Angle Strap
2
23
284-015
5/8” Nut Angle Strap
2
24
601-000
P857 Blower
1
25
526-002
Flange Gasket
1
26
124-020
Cap Screw M12 x 25mm
2
27
509-005
Suction Flange
1
28
124-023
Cap Screw M12 x 85mm
2
29
291-012
4”-6” Hose Clamp
2
30
587-002
Hump hose- 5”
1
31
625-003
Filter Assy S/S CDL9, PSI/VAC
1
32
587-000
Hump Hose Reducer- 4” x 5”
1
33
588-003
Tube, Aluminum 5” x 5” long
1
34
587-005
Hose, 3-1/2” long x 5” ID-EPDM
1
29b
291-012
4”-6” Hose Clamp
4
