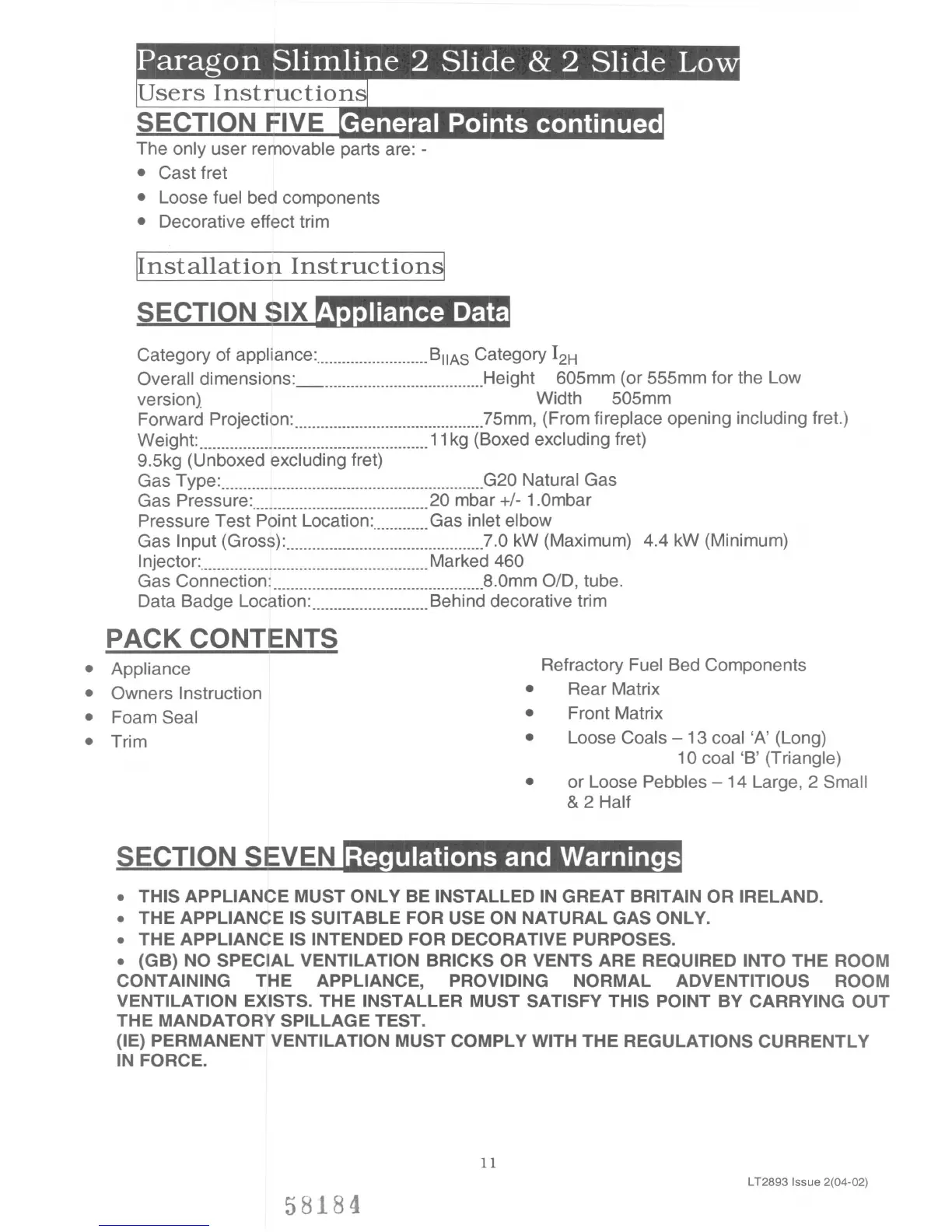

Users Instruction
SECTION FIVE
The only user removable parts are: -
• Cast fret
• Loose fuel bed components
• Decorative effect trim
jInstallation Instructionsl
SECTION SIX • ••
Category of appliance: B
IIAS
Category
1
2H
Overall dimensions:_ Height 605mm (or 555mm for the Low
version). Width 505mm
Forward Projection: .?5mm, (From fireplace opening including fret.)
Weight 11kg (Boxed excluding fret)
9.5kg (Unboxed excluding fret)
Gas Type: G20 Natural Gas
Gas Pressure: 20 mbar +/- 1.0mbar
Pressure Test Point Location: Gas inlet elbow
Gas Input (Gross): .?0 kW (Maximum) 4.4 kW (Minimum)
Injector: Marked 460
Gas Connection: 8.0mm
0/0,
tube.
Data Badge Location: Behind decorative trim
PACK CONTENTS
• Appliance
• Owners Instruction
• Foam Seal
• Trim
Refractory Fuel Bed Components
• Rear Matrix
• Front Matrix
• Loose Coals - 13 coal 'A' (Long)
10 coal 'B' (Triangle)
• or Loose Pebbles - 14 Large, 2 Small
&
2 Half
SECTION SEVEN • - •
• THIS APPLIANCE MUST ONLY BE INSTALLED IN GREAT BRITAIN OR IRELAND.
• THE APPLIANCE IS SUITABLE FOR USE ON NATURAL GAS ONLY.
• THE APPLIANCE IS INTENDED FOR DECORATIVE PURPOSES.
• (GB) NO SPECIAL VENTILATION BRICKS OR VENTS ARE REQUIRED INTO THE ROOM
CONTAINING THE APPLIANCE, PROVIDING NORMAL ADVENTITIOUS ROOM
VENTILATION EXISTS. THE INSTALLER MUST SATISFY THIS POINT BY CARRYING OUT
THE MANDATORY SPILLAGE TEST.
(lE) PERMANENT VENTILATION MUST COMPLY WITH THE REGULATIONS CURRENTLY
IN FORCE.
58184
