paramondo BASIC - Clearance Height Calculation Data (English)

31
www.paramondo.de
EN

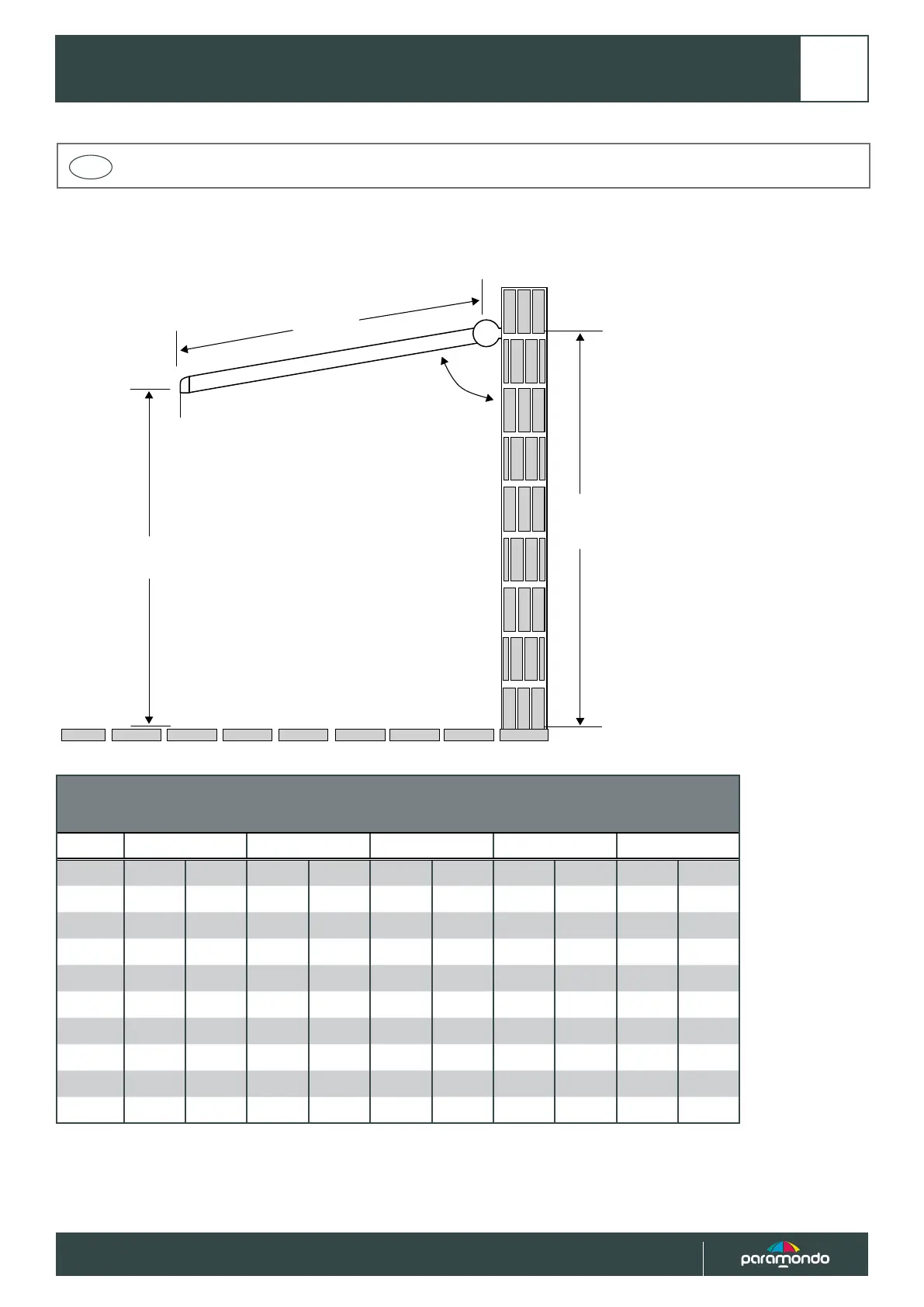

We recommend ng the marquee to ensure a minimum clearance height of 200 cm to the front prole
when the marquee is extended completely.
Clearance height
Front
Fing height
15°
Deducon dimension for a clearance height of 200 cm
Front 150 cm 250 cm 300 cm 350 cm 400 cm
N A AF A AF A AF A AF A AF
5° -32 150 -40 250 -45 300 -50 349 -54 399
10° -43 150 -60 248 -69 297 -78 346 -88 396
15° -54 148 -80 244 -93 292 -106 341 -119 389
20° -65 145 -99 239 -116 286 -133 333 -151 380
25° -76 141 -118 232 -139 277 -160 322 -181 368
30° -86 136 -136 223 -161 265 -186 309 -211 353
35° -96 130 -153 212 -182 253 -211 294 -239 335
40° -105 124 -170 200 -202 239 -234 277 -266 316
45° -114 117 -185 188 -220 223 -256 258 -291 294
N = lt angle | A = deducon dimension | AF = remaining front
Example: Fing height 280 cm - lt 15° - front 250 cm = clearance height 200 cm
(The front (AF) is reduced by approx. 6 cm from 250 cm to 244 cm)
Montage • Installaon
